ViewSonicMeeting Room SolutionsSKU VPC10-WP-6

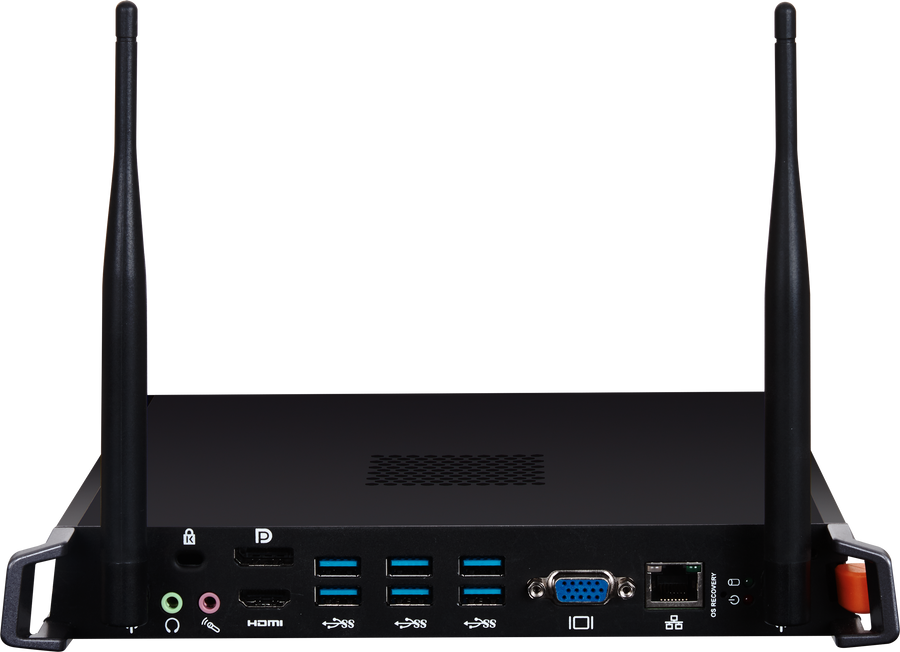

ViewSonic ViewBoard OPS Slot-in PC – VPC10-WP-6
The ViewSonic VPC10-WP-6 is a slot-in OPS PC for ViewBoard interactive displays. It runs an Intel Core i5-6400 processor with 4 GB RAM, expandable to 16 GB, and a 500 GB hard drive. It includes dual-band Wi-Fi and Bluetooth 4.0. Procure.ae supplies the VPC10-WP-6 across the UAE.
The VPC10-WP-6 turns a compatible ViewBoard display into a complete computer without a separate PC. Its Intel Core i5-6400 processor and Intel HD Graphics 530 suit presentation, collaboration and education software. Memory starts at 4 GB and expands to 16 GB, and the 500 GB hard drive expands to 1 TB. The DisplayPort output supports up to 4096 x 2304 at 60 Hz, and six USB 3.0 ports connect peripherals. A Gigabit RJ45 port and 802.11ac Wi-Fi provide wired and wireless networking.
The VPC10-WP-6 plugs into compatible ViewBoard interactive displays, which makes it an integrated alternative to a separate PC for classrooms and meeting rooms that run interactive lessons and presentations. It has a microphone input and an earphone output, and it accepts 110–240 V AC power at a typical 95 W. It operates between 0 and 45 °C and measures 246.2 x 265.4 x 32.2 mm.
Type
Slot-in PC (OPS)
Weight
1.9 kg
- Intel Core i5 processor
- Expandable memory
- Hard drive storage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5 processor
Intel Core i5-6400 with Intel HD Graphics 530.
02
Expandable memory
4 GB RAM, upgradable to 16 GB.
03
Hard drive storage
500 GB HDD, expandable to 1 TB.
04
High-resolution output
DisplayPort output up to 4096 x 2304 at 60 Hz.
05
Dual-band wireless
802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz with Bluetooth 4.0 and BLE.
06
Six USB 3.0 ports
USB 3.0 Type A ports for peripherals.
07
Gigabit Ethernet
RJ45 port at 10/100/1000 Mb/s.
08
Plug-in design
Plugs into compatible ViewBoard displays.
Specifications
19 specificationsGeneral
Key FeaturesIntel Core i5-6400, 4 GB RAM (up to 16 GB), 500 GB HDD (up to 1 TB), dual-band Wi-Fi AC, Bluetooth 4.0, DisplayPort output up to 4096 x 2304 at 60 Hz, six USB 3.0 ports
ModelVPC10-WP-6
TypeSlot-in PC (OPS)
What's in the BoxVPC10-WP slot-in PC, ViewSonic Wizard CD, Quick Start Guide
Performance
GraphicsIntel HD Graphics 530
ProcessorIntel Core i5-6400
RAM4 GB (up to 16 GB)
Storage500 GB HDD (up to 1 TB)
Connectivity
BluetoothBluetooth 4.0 with BLE
EthernetRJ45 × 1 (10/100/1000 Mb/s)
Input Voltage110–240 V AC, 50/60 Hz
PortsDisplayPort × 1, VGA (RGB) × 1, USB 3.0 × 6, RJ45 × 1, microphone × 1, earphone out × 1
Wi-Fi802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
Power
Power Consumption95 W
Physical
Dimensions246.2 x 265.4 x 32.2 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 45 °C
Weight1.9 kg
Compliance
CertificationsFCC, IC, cTUVus, CE, CB, BSMI, NCC, RCM, CCC, EAC, RED, BIS
Downloads
Manufacturer documents for the ViewSonic ViewBoard OPS Slot-in PC – VPC10-WP-6 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic VPC10-WP-6?
It is a slot-in OPS PC that provides the computer for compatible ViewBoard interactive displays. It has an Intel Core i5-6400 processor, 4 GB of RAM and a 500 GB hard drive, and it is designed for presentations and collaboration in classrooms and workplaces.
Is the VPC10-WP-6 compatible with all ViewBoard displays?
The manufacturer states that the module plugs into compatible ViewBoard displays. The manufacturer's specifications do not list a full compatibility matrix, so Procure.ae can confirm the display model before you order.
How much memory and storage does it have?
It has 4 GB of RAM, expandable to 16 GB, and a 500 GB hard drive, expandable to 1 TB. The storage is a 2.5-inch SATA3 drive interface, as listed in the manufacturer's specifications.
Which video output does it support?
It has one DisplayPort output with a maximum resolution of 4096 x 2304 at 60 Hz, and one VGA (RGB) port for older projectors and monitors. Both ports are listed in the manufacturer's specifications as standard connectivity on this module.
Does it support Wi-Fi and Bluetooth?
Yes. It has an Intel Dual Band Wireless-AC 3165 module for 802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, plus Bluetooth 4.0 with BLE. Both bands are supported, so the module can connect to either a 2.4 GHz or a 5 GHz wireless network.
