ViewSonicMeeting Room SolutionsSKU VB-STND-003
ViewSonic ViewBoard Motorized Trolley Cart with Lift and Tilt – VB-STND-003

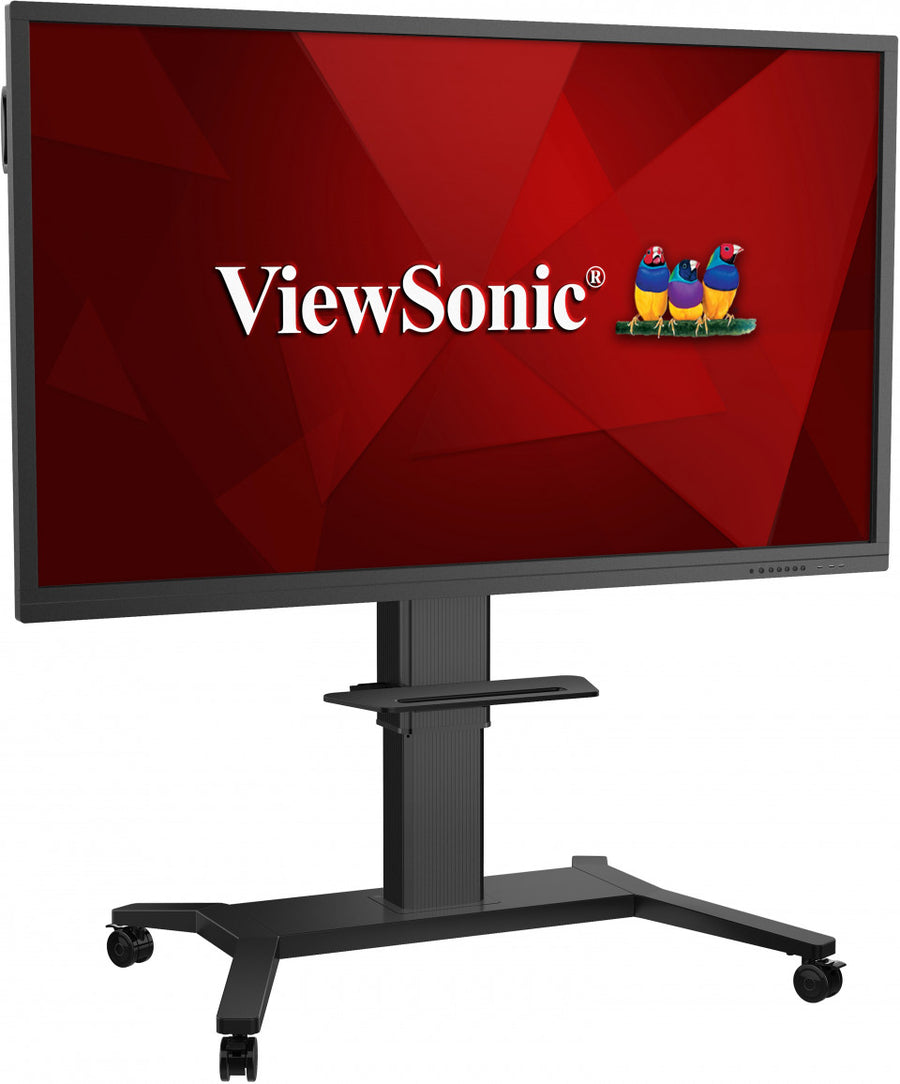

The ViewSonic VB-STND-003 is a motorized trolley cart with a 560 mm lift, 0 to 90-degree tilt and 100 kg display capacity for ViewBoard displays. It fits 55-inch, 65-inch, 75-inch and 86-inch models, and it can position a display in tabletop mode for models up to 65 inch. Procure.ae, an authorised reseller, supplies it across the UAE.

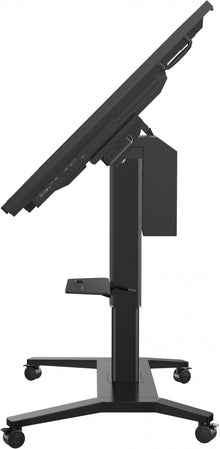

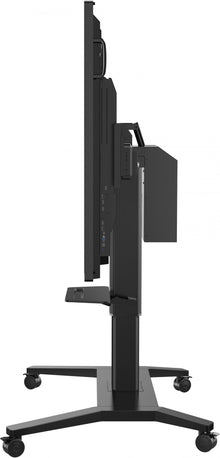

The VB-STND-003 carries a ViewBoard display on a mobile base with a motorized lift of 560 mm (22.05 in) and a tilt range of 0 to 90 degrees. The tilt can be set slightly for customized viewing, further for a drafting-table angle, or horizontally in tabletop mode to form an interactive learning table or huddle space. The cart holds displays up to 100 kg, turns through a 360-degree swivel and weighs 54 kg net.
Type
Motorized Trolley Cart with Lift an...
Weight
54 kg
- Motorized lift and tilt
- 560 mm height range
- 0 to 90-degree tilt
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Motorized lift and tilt
Raises, lowers and tilts the display with a smooth motorized mechanism.
02
560 mm height range
Lift travel of 560 mm (22.05 in) to set the display height.
03

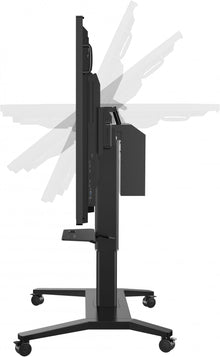

0 to 90-degree tilt
Tilt range for upright, drafting-table or tabletop positions.
04
360-degree swivel
Turns the display through a full 360 degrees.
05
100 kg display capacity
Holds ViewSonic 55-inch to 86-inch ViewBoard displays, or any display up to 100 kg.
06
On-screen control
Operated from the ViewBoard touchscreen on IFP50 series models only.
Specifications
14 specificationsGeneral
CompatibilityViewSonic ViewBoard 55-inch, 65-inch, 75-inch and 86-inch displays
ControlsOn-screen control from ViewBoard touchscreen (IFP50 series only)
Key FeaturesMotorized lift and tilt, 560 mm height adjustment, 0 to 90-degree tilt, 360-degree swivel, on-screen control, 100 kg display capacity
ModelVB-STND-003
TypeMotorized Trolley Cart with Lift and Tilt
Display
Supported Screen Sizes55-inch, 65-inch, 75-inch, 86-inch
Physical
Dimensions1234 x 1149.6 x 844 mm
Height Range560 mm (22.05 in)
Load Capacity100 kg (display)
Shipping Dimensions1342 x 372 x 934 mm
Shipping Weight64 kg
Swivel360 degrees
Tilt0 to 90 degrees
Weight54 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard Motorized Trolley Cart with Lift and Tilt – VB-STND-003 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard sizes does the VB-STND-003 accommodate?
It accommodates ViewSonic 55-inch, 65-inch, 75-inch and 86-inch ViewBoard interactive flat panel displays, or any display weighing up to 100 kg. Confirm your display model and weight before ordering, and Procure.ae can confirm the fit.
Can I use the cart in tabletop mode?
Yes. The cart can position the display horizontally to create an interactive learning table or huddle space. The manufacturer does not recommend tabletop mode for displays greater than 65 inch.
Can the display be controlled from the touchscreen?
Yes, on IFP50 series ViewBoard models only. The on-screen control lets you raise, lower or tilt the display with a single tap. Other models are not covered by this control.
Can I buy the VB-STND-003 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
