ViewSonicMeeting Room SolutionsSKU VB-STND-008

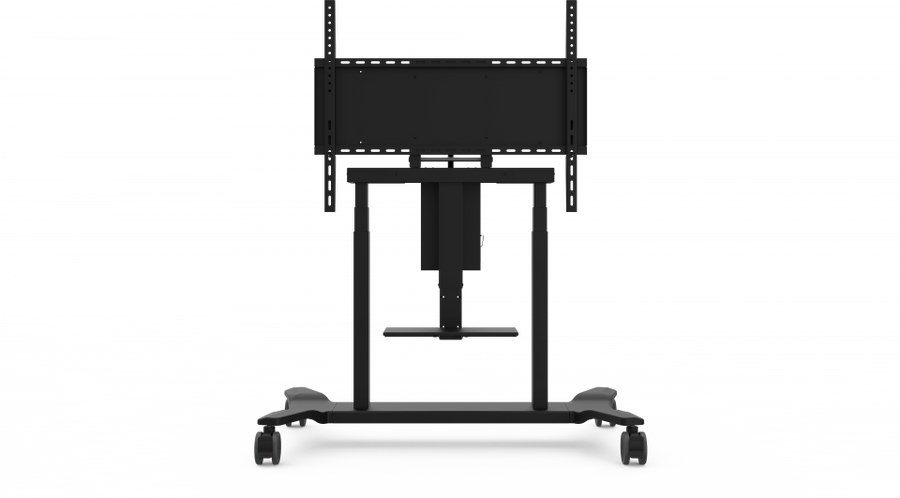

ViewSonic ViewBoard Motorised Trolley Cart with Tilt – VB-STND-008
The ViewSonic VB-STND-008 is a motorised trolley cart with a 0 to 90 degree tilt range and a 560 mm height lift. It suits 55-inch to 86-inch interactive flat panels and similar displays up to 75 kg. Procure.ae, an authorised ViewSonic reseller, supplies it across the UAE.
The VB-STND-008 is built on the same motorised trolley platform as the VB-STND-007, and adds a tilt range from 0 to 90 degrees. The motor raises and lowers the panel through a 560 mm range from the app toolbar. The cart swivels through 360 degrees and rolls on 360-directional quiet wheels, so the panel can be repositioned and moved between rooms.
The VB-STND-008 suits interactive panel rooms where the viewing angle needs adjusting as well as the height, such as classrooms, lecture halls and meeting rooms. The manufacturer's specifications list the tilt range but do not describe it further. Procure.ae supplies the cart across the UAE, with delivery, installation, free training and support.
Type
Motorised Trolley Cart with Tilt
Weight
65 kg
- Motorised lift
- Tilt range
- Quiet mobility
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Motorised lift
Adjusts height by 560 mm from the app toolbar.
02
Tilt range
Tilts from 0 to 90 degrees.
03
Quiet mobility
360-directional quiet wheels move the panel silently between rooms.
04
360-degree swivel
Turns the panel through a full 360 degrees.
05
Panel range
Fits 55-inch, 65-inch, 75-inch and 86-inch panels.
06
Load rating
Supports displays up to 75 kg.
Specifications
15 specificationsGeneral
ControlsHeight control from the panel's app toolbar
Key FeaturesMotorised height adjustment, 560 mm lift range, Tilt 0 to 90 degrees, 360-degree swivel, Quiet 360-degree wheels, Up to 75 kg display load
ModelVB-STND-008
TypeMotorised Trolley Cart with Tilt
Display
Supported Screen Sizes55 inch, 65 inch, 75 inch and 86 inch
Physical
AdjustabilityMotorised height adjustment
Dimensions1248.9 x 1330.7-1890.7 x 716 mm (W x H x D)
Height Range1330.7 to 1890.7 mm (560 mm motorised lift)
Load Capacity75 kg max. (display)
MountingFreestanding mobile trolley
Shipping Dimensions1150 x 490 x 1010 mm
Shipping Weight74.4 kg
Swivel360 degree
Tilt0 to 90 degrees
Weight65 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard Motorised Trolley Cart with Tilt – VB-STND-008 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the tilt on the VB-STND-008 do?
The VB-STND-008 tilts from 0 to 90 degrees. The manufacturer's specifications list this range but do not describe the tilt function further, so confirm the angle needed for your panel with Procure.ae before ordering.
Does the VB-STND-008 fit a 65-inch interactive flat panel?
Yes. The manufacturer states the cart accommodates 55-inch, 65-inch, 75-inch and 86-inch panels, or similar displays weighing up to 75 kg. A 65-inch panel is within that range, provided its weight is within 75 kg.
How high can the VB-STND-008 raise a panel?
The motorised height adjustment has a 560 mm range. The specifications give an overall height span of 1330.7 mm to 1890.7 mm, measured from the cart's stated dimensions. Check the room's ceiling height and door clearance against the upper figure before ordering.
