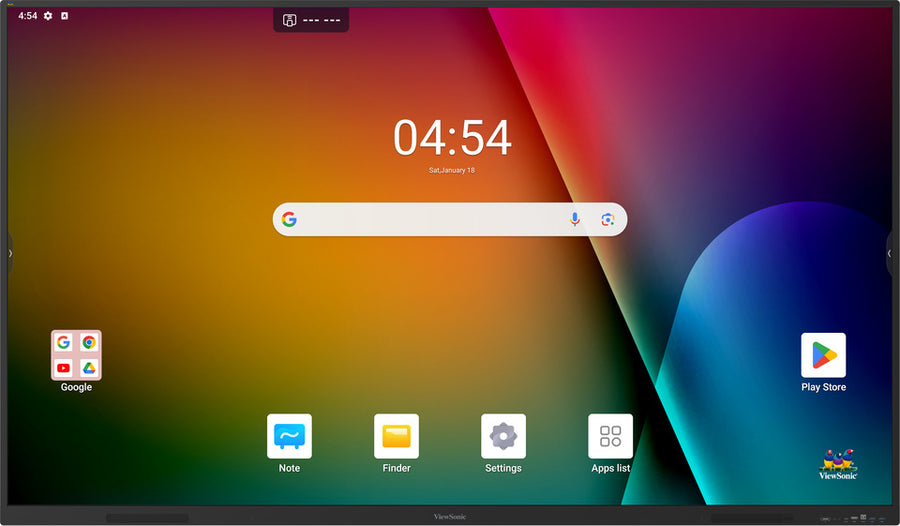

ViewSonic IN8603-1C 86-inch 4K interactive flat panelViewSonic

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8603-1C

The ViewSonic IN8603-1C is an 86-inch 4K UHD interactive flat panel for classrooms, lecture halls and meeting rooms. It runs Android 14 with Google Play access, offers 40-point touch on Windows and Android and delivers 450 nits of brightness. Procure.ae supplies the ViewSonic IN8603-1C in the UAE.

The IN8603-1C has an 86-inch LCD panel at 3840 x 2160 resolution, with 450 nits of brightness, a 5,000:1 contrast ratio with DCR enabled and an 8 ms response time. Its Ultra Fine Touch screen supports 40 touch points on Windows and 40 on Android, and bonding technology reduces glare. The octa-core processor, Mali-G52 MP8 GPU and 8 GB DDR4 RAM with 128 GB storage run the Android 14 platform, and the OPS slot takes an optional Intel standard PC module.

The IN8603-1C suits classrooms, lecture halls and boardrooms where a large display carries teaching and presentations. One RJ45 port provides a wired network connection, and the front and rear USB 3.2 Gen 1 Type-A ports support SmartPort USB. The panel mounts on an 800 x 600 mm VESA pattern. The IN8605-C, also 86-inch, lists 50-point touch and Android 16, so choose the IN8603-1C when 40-point touch and Android 14 meet the brief.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Type
Interactive Flat Panel
  • Android 14 platform
  • 4K UHD display
  • 40-point touch
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Android 14 platform
Android 14 with Google Play Store access under the Android Enterprise Device License Agreement (EDLA).
02
4K UHD display
3840 x 2160 resolution with 1.07G colors and 178° viewing angles.
03
40-point touch
Ultra Fine Touch supports 40 touch points on Windows and Android.
04
Built-in speakers
integrated audio for classroom and meeting use.
05
SmartPort USB
front and rear USB 3.2 Gen 1 Type-A ports support SmartPort USB.
06
OPS slot
one OPS slot for an optional Intel standard PC module.
07
USB-C with PD 15W
one front USB 2.0 Type-C port rated PD 15W.
08
Wired network
one RJ45 port for network connection.

Specifications

30 specifications
General
Key FeaturesAndroid 14 with Google Play access, 3840 x 2160 panel, 40-point touch, Built-in speakers, OPS slot, SmartPort USB, USB-C with PD 15W, 450 nits
ModelIN8603-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness450 nits
Contrast Ratio5,000:1 (with DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point multi-touch
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali-G52 MP8
Operating SystemAndroid 14
ProcessorOcta-core (4 × A53 + 4 × A73)
RAM8 GB DDR4
Storage128 GB
Connectivity
Input Voltage100–240 V AC
OPS Slot1 × OPS slot (optional Intel standard OPS)
PortsRGB/VGA × 1, RS232 × 1, RJ45 × 1, USB 3.2 Gen 1 Type-A × 4 (SmartPort), USB 2.0 Type-A × 1, USB 2.0 Type-B × 2, USB 2.0 Type-C × 1 (PD 15W), SD/SDHC × 1, Audio × 2
Power
Power Consumption240 W (normal)
Standby Power<0.5 W
Physical
Color1.07G colors (8-bit + FRC)
Dimensions1957 x 1159 x 98.8 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight53.6 kg

Downloads

Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8603-1C — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the IN8603-1C run Android?
Yes. It runs Android 14 under the Android Enterprise Device License Agreement (EDLA) and includes Google Play Store access. It has 8 GB DDR4 RAM and 128 GB storage, and an OPS slot takes an optional Intel standard PC module.
How many touch points does the IN8603-1C support?
It supports 40 touch points on Windows and 40 on Android, using Ultra Fine Touch technology. The manufacturer says the screen works with fingers or dual-tip pens for writing and annotation.
What VESA mount does the IN8603-1C use?
It uses an 800 x 600 mm VESA wall mount pattern. The panel measures 1957 x 1159 x 98.8 mm and the manufacturer lists a net weight of 53.6 kg, so confirm the wall or bracket can take that load.
Can I connect a PC to the IN8603-1C?
Yes, through the OPS slot, which the manufacturer lists as an optional Intel standard OPS. The unit also has an RGB/VGA port, SmartPort USB 3.2 Gen 1 Type-A ports and an RJ45 network port. Procure.ae can confirm the OPS module options.
Does the IN8603-1C have built-in speakers?
Yes. The manufacturer's text lists built-in speakers as a standard feature, and the unit also has two audio ports for external sound. For a room that needs a larger sound system, the manufacturer's specifications do not state speaker output power.
Can I buy the IN8603-1C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
