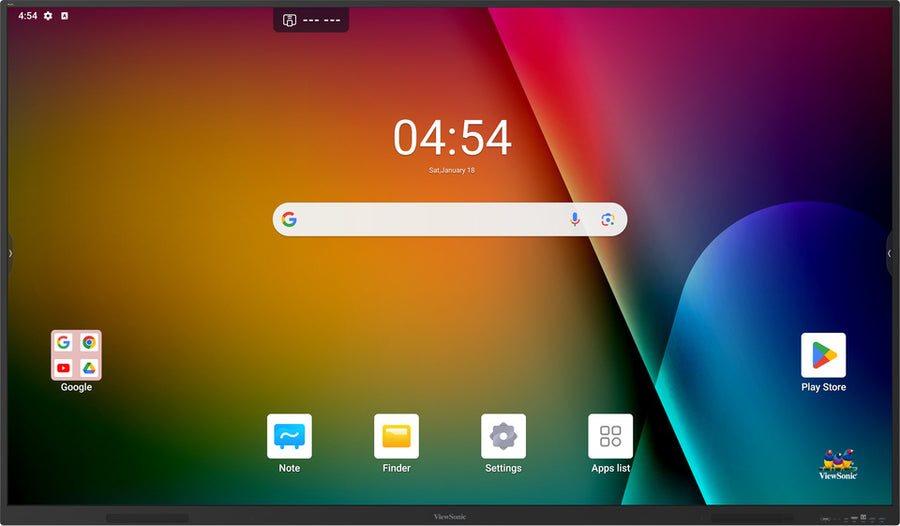

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8603-1C
The ViewSonic IN8603-1C is an 86-inch 4K UHD interactive flat panel for classrooms, lecture halls and meeting rooms. It runs Android 14 with Google Play access, offers 40-point touch on Windows and Android and delivers 450 nits of brightness. Procure.ae supplies the ViewSonic IN8603-1C in the UAE.
The IN8603-1C has an 86-inch LCD panel at 3840 x 2160 resolution, with 450 nits of brightness, a 5,000:1 contrast ratio with DCR enabled and an 8 ms response time. Its Ultra Fine Touch screen supports 40 touch points on Windows and 40 on Android, and bonding technology reduces glare. The octa-core processor, Mali-G52 MP8 GPU and 8 GB DDR4 RAM with 128 GB storage run the Android 14 platform, and the OPS slot takes an optional Intel standard PC module.
The IN8603-1C suits classrooms, lecture halls and boardrooms where a large display carries teaching and presentations. One RJ45 port provides a wired network connection, and the front and rear USB 3.2 Gen 1 Type-A ports support SmartPort USB. The panel mounts on an 800 x 600 mm VESA pattern. The IN8605-C, also 86-inch, lists 50-point touch and Android 16, so choose the IN8603-1C when 40-point touch and Android 14 meet the brief.
Key features
Specifications
| Key Features | Android 14 with Google Play access, 3840 x 2160 panel, 40-point touch, Built-in speakers, OPS slot, SmartPort USB, USB-C with PD 15W, 450 nits |
| Model | IN8603-1C |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 450 nits |
| Contrast Ratio | 5,000:1 (with DCR enabled) |
| Orientation | Landscape |
| Panel Technology | LCD |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 40-point multi-touch |
| Viewing Angle | 178° (H) / 178° (V) |
| Graphics | Mali-G52 MP8 |
| Operating System | Android 14 |
| Processor | Octa-core (4 × A53 + 4 × A73) |
| RAM | 8 GB DDR4 |
| Storage | 128 GB |
| Input Voltage | 100–240 V AC |
| OPS Slot | 1 × OPS slot (optional Intel standard OPS) |
| Ports | RGB/VGA × 1, RS232 × 1, RJ45 × 1, USB 3.2 Gen 1 Type-A × 4 (SmartPort), USB 2.0 Type-A × 1, USB 2.0 Type-B × 2, USB 2.0 Type-C × 1 (PD 15W), SD/SDHC × 1, Audio × 2 |
| Power Consumption | 240 W (normal) |
| Standby Power | <0.5 W |
| Color | 1.07G colors (8-bit + FRC) |
| Dimensions | 1957 x 1159 x 98.8 mm |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 800 x 600 mm |
| Weight | 53.6 kg |
