ViewSonicInteractive Flat PanelsSKU IFP8652-1CF

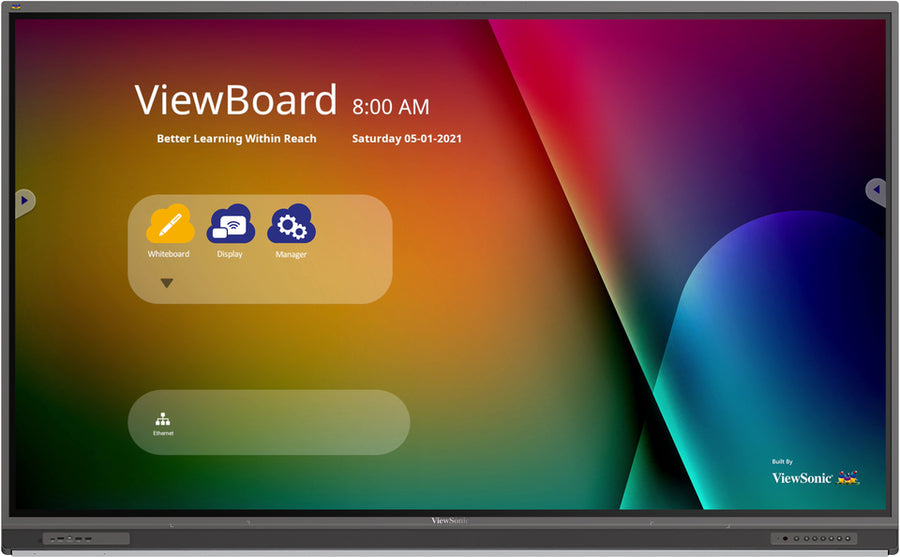

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8652-1CF
The ViewSonic ViewBoard IFP8652-1CF is an 86-inch 4K UHD interactive whiteboard for classrooms and collaborative teaching. It has Ultra Fine Touch with 33-point touch on Windows, 400 nits typical brightness and an 8-microphone array for hybrid lessons. Procure.ae supplies the IFP8652-1CF across the UAE, with delivery and installation.
The IFP8652-1CF has an 86-inch IPS panel with 3840 x 2160 resolution, 400 nits typical brightness and 1,100:1 typical contrast, rising to 2,500:1 with DCR enabled. Ultra Fine Touch supports 33-point touch on Windows and 20-point touch on Android, with a 32767 x 32767 touch resolution and palm awareness. Dual-pen capability supports two pens. The quad-core processor, 8 GB DDR4 RAM and 64 GB storage run myViewBoard, and a light sensor is included.
The IFP8652-1CF suits classrooms and collaborative teaching areas where students write at the board and remote learners join. Its 8-microphone array and any connected visualizer can be selected for the right camera and microphone source. Two 15 W front-facing speakers and a 15 W subwoofer cover the room. One USB Type-C port carries video, data, Ethernet and 65 W power delivery, and OPS and WiFi module slots allow expansion. Compared with the IFP8652-2F, it lists 33-point Windows touch and 400 nits brightness, where the 2F lists 40-point and 350 nits.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Ultra Fine Touch (UFT)
- Ultra Fine Touch
- 400 nits 4K panel
- Dual-pen writing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
UFT technology with 33-point touch on Windows and 20-point touch on Android.
02
400 nits 4K panel
3840 x 2160 IPS panel at 400 nits typical brightness.
03
Dual-pen writing
Dual-pen capability with palm awareness for group writing.
04
8-microphone array
Built-in array for hybrid lessons, selectable with a connected visualizer.
05
Speaker system
Two 15 W front-facing speakers and a 15 W subwoofer.
06
Single USB-C connection
One USB Type-C port with DP 1.2, Ethernet 100M and 65 W power delivery.
07
Expansion slots
OPS module slot and WiFi module slot for added computing and connectivity.
08
Remote management
Browser-based device management through myViewBoard Manager.
Specifications
36 specificationsGeneral
Key FeaturesUltra Fine Touch, 33-point Windows touch, dual-pen capability, palm awareness, OPS and WiFi module slots, light sensor, USB-C with 65 W power delivery, 8-microphone array
ModelIFP8652-1CF
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits (typical)
Color Depth1.07 billion colors (10-bit)
Contrast Ratio1,100:1 (typical); 2,500:1 (max, DCR enabled)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points33-point touch (Windows); 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A73 quad-core, 1.8 GHz
RAM8 GB DDR4
Storage64 GB
Audio
Microphone8-microphone array
Connectivity
Ethernet10/100/1000 Mbps (RJ45 in and out)
Input Voltage100–240 V AC ±10%
OPS Slot1 OPS module slot
PortsRGB/VGA x1, audio in x1, RS232 x1, RJ45 x2 (in and out), USB 2.0 Type-A x3, USB 3.0 Type-A x2, USB Type-B touch x3, USB Type-C x1, earphone out x1
Serial PortRS232 x1
USB-C Ports1 port: USB 2.0, DP 1.2, Ethernet 100M, PD 65 W
VGA InputRGB / VGA x1 (1920 x 1080 at 60 Hz)
Wi-FiWiFi module slot x1
Power
Power Consumption286.4 W typical (on); under 0.5 W (off)
Physical
Dimensions1953 x 1211 x 120 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection9H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight68.65 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8652-1CF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the ViewSonic IFP8652-1CF?
The IFP8652-1CF is an 86-inch IPS panel with 3840 x 2160 (4K UHD) resolution at 16:9. Brightness is 400 nits typical, and contrast is 1,100:1 typical or 2,500:1 maximum with DCR enabled.
How many touch points does the IFP8652-1CF support?
It supports 33-point touch on Windows and 20-point touch on Android, using Ultra Fine Touch technology with a 32767 x 32767 touch resolution. Palm awareness is included, and dual-pen capability lets two pens write at the same time.
Does the IFP8652-1CF support Windows annotation as well as Android?
Yes. myViewBoard WhiteBoard for Android provides basic annotation, and the Windows version is embedded in a VPC slot-in PC. Wireless presentation uses vCast and myViewBoard Display, and the panel also has an OPS module slot for expansion.
Can the IFP8652-1CF be used for hybrid lessons with remote students?
Yes. The built-in 8-microphone array and any connected visualizer can be selected so remote learners get the most suitable camera and microphone source. Two 15 W front speakers and a 15 W subwoofer provide amplified sound in the room.
What mounting does the IFP8652-1CF need?
It is VESA-compatible with an 800 x 600 mm wall mount. Its size is 1953 x 1211 x 120 mm and net weight is 68.65 kg, so use a bracket rated for that load and a qualified installer. Procure.ae delivers and installs across the UAE.
