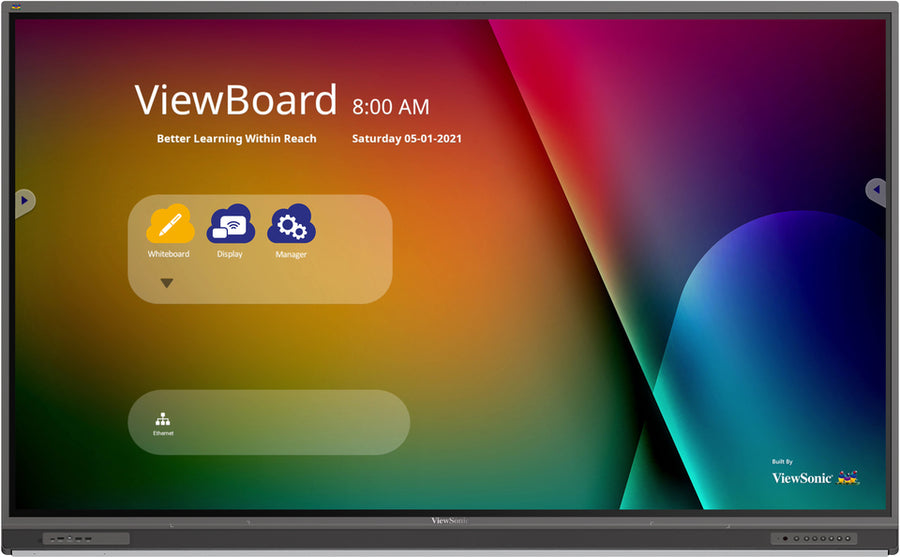

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8652-1CF
The ViewSonic ViewBoard IFP8652-1CF is an 86-inch 4K UHD interactive whiteboard for classrooms and collaborative teaching. It has Ultra Fine Touch with 33-point touch on Windows, 400 nits typical brightness and an 8-microphone array for hybrid lessons. Procure.ae supplies the IFP8652-1CF across the UAE, with delivery and installation.
The IFP8652-1CF has an 86-inch IPS panel with 3840 x 2160 resolution, 400 nits typical brightness and 1,100:1 typical contrast, rising to 2,500:1 with DCR enabled. Ultra Fine Touch supports 33-point touch on Windows and 20-point touch on Android, with a 32767 x 32767 touch resolution and palm awareness. Dual-pen capability supports two pens. The quad-core processor, 8 GB DDR4 RAM and 64 GB storage run myViewBoard, and a light sensor is included.
The IFP8652-1CF suits classrooms and collaborative teaching areas where students write at the board and remote learners join. Its 8-microphone array and any connected visualizer can be selected for the right camera and microphone source. Two 15 W front-facing speakers and a 15 W subwoofer cover the room. One USB Type-C port carries video, data, Ethernet and 65 W power delivery, and OPS and WiFi module slots allow expansion. Compared with the IFP8652-2F, it lists 33-point Windows touch and 400 nits brightness, where the 2F lists 40-point and 350 nits.
Key features
Specifications
| Key Features | Ultra Fine Touch, 33-point Windows touch, dual-pen capability, palm awareness, OPS and WiFi module slots, light sensor, USB-C with 65 W power delivery, 8-microphone array |
| Model | IFP8652-1CF |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 400 nits (typical) |
| Color Depth | 1.07 billion colors (10-bit) |
| Contrast Ratio | 1,100:1 (typical); 2,500:1 (max, DCR enabled) |
| Orientation | Landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 33-point touch (Windows); 20-point touch (Android) |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Ultra Fine Touch (UFT) |
| Viewing Angle | 178° horizontal, 178° vertical |
| Processor | ARM Cortex-A73 quad-core, 1.8 GHz |
| RAM | 8 GB DDR4 |
| Storage | 64 GB |
| Microphone | 8-microphone array |
| Ethernet | 10/100/1000 Mbps (RJ45 in and out) |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | 1 OPS module slot |
| Ports | RGB/VGA x1, audio in x1, RS232 x1, RJ45 x2 (in and out), USB 2.0 Type-A x3, USB 3.0 Type-A x2, USB Type-B touch x3, USB Type-C x1, earphone out x1 |
| Serial Port | RS232 x1 |
| USB-C Ports | 1 port: USB 2.0, DP 1.2, Ethernet 100M, PD 65 W |
| VGA Input | RGB / VGA x1 (1920 x 1080 at 60 Hz) |
| Wi-Fi | WiFi module slot x1 |
| Power Consumption | 286.4 W typical (on); under 0.5 W (off) |
| Dimensions | 1953 x 1211 x 120 mm |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 68.65 kg (net) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
