ViewSonicInteractive Flat PanelsSKU IFP8650-2

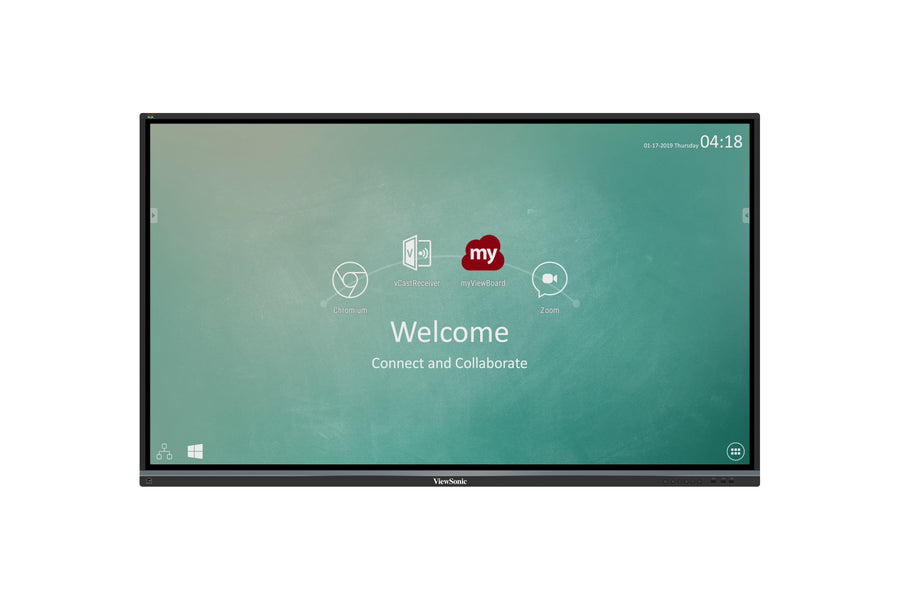

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650-2
The ViewSonic ViewBoard IFP8650-2 is an 86-inch 4K UHD interactive display for classrooms and other teaching spaces. It offers 20-point touch with 10-point writing, 5,000:1 contrast with DCR and an embedded Android 7 system with an OPS slot for a slot-in PC. Procure.ae supplies the IFP8650-2 across the UAE, with delivery and installation.
The IFP8650-2 has an 86-inch TFT LCD with 3840 x 2160 resolution, a 16:9 aspect ratio and 1.07 billion colors at 10-bit depth. Brightness is 350 nits typical, 300 nits minimum, with 5,000:1 contrast when DCR is enabled. Infrared touch supports 20 points of touch and 10 points of writing. The embedded dual-core processor with 2 GB DDR4 RAM and 16 GB storage runs Android 7 and myViewBoard, and the integrated speakers are rated 10 W x 2 and 15 W x 1.
The IFP8650-2 suits classrooms and teaching spaces where a teacher works from the front of the room. Dual-pen writing with slim 3 mm pens supports fine detail work during group discussion, and the slim bezel keeps the viewing edge clean. ViewBoard Cast provides wireless presentation with four-way split-screen content sharing, and simple LAN sharing links the panel with a slot-in device. Compared with the IFP8650, it lists 5,000:1 contrast with DCR and a slim bezel.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical); 300 nits (minimum)
Touch Technology
Infrared
- 20-point touch
- Dual-pen writing
- 4K UHD panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-point touch
20 touch points and 10 writing points with infrared touch.
02
Dual-pen writing

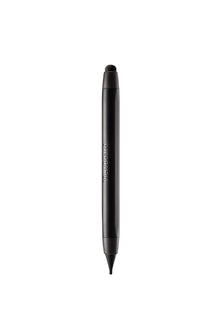

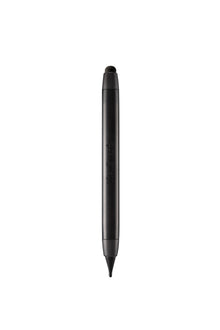

Slim 3 mm pens support fine writing during group discussion.
03
4K UHD panel
3840 x 2160 at 16:9 with 350 nits typical brightness and 5,000:1 contrast with DCR.
04
Embedded Android 7
Dual-core processor, 2 GB DDR4 RAM and 16 GB storage.
05
Slot-in PC support
OPS slot takes a proprietary slot-in PC, with VPC14-WP, VPC15-WP and related series listed.
06
ViewBoard Cast
Wireless presentation with touch feedback and four-way split-screen sharing.
07
Built-in speakers
Speakers rated 10 W x 2 and 15 W x 1.
08
ENERGY STAR 8.0
ENERGY STAR version ES8.0 and EEI rating A+ are listed.
Specifications
35 specificationsGeneral
Key Features20-point touch, 10-point writing, dual-pen writing, ViewBoard Cast wireless presentation, OPS slot-in PC support, Android 7, built-in speakers, slim bezel
ModelIFP8650-2
TypeInteractive Flat Panel
What's in the BoxPower cable (3 m) x4, remote control, USB cable (3 m), AV cable, touching pen x2, quick start guide, RS232 adapter, clamp x5, plate, screw x8, HDMI cable
Display
Aspect Ratio16:9
BacklightDLED
Bezel SizeSlim bezel
Brightness350 nits (typical); 300 nits (minimum)
Color Depth1.07 billion colors (10-bit)
Contrast Ratio5,000:1 (with DCR)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point touch, 10-point writing
Touch Resolution32767 x 32767
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 7
ProcessorARM Cortex-A73 dual-core, 1.2 GHz
RAM2 GB DDR4
Storage16 GB
Audio
Speaker Output10 W x 2 and 15 W x 1
Connectivity
Input Voltage100–240 V AC ±10%
OPS Slot1 OPS PC slot (proprietary)
PortsRGB/VGA x1, audio in x1, CVBS x1, RS232 x1, OPS PC slot x1, earphone out x1, RJ45 x1, USB 2.0 Type-A x4, USB 3.0 Type-A x2, Touch Type-B x2
Power
Power Consumption155 W typical; under 0.5 W (off)
Physical
Dimensions1958 x 1160 x 90 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare coating
VESA Mount800 x 600 mm
Weight69.7 kg (net)
Compliance
CertificationsFCC, cTUVus, CB, CE, BSMI, RCM, BIS, CCC, EAC; ENERGY STAR 8.0; EEI A+
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650-2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the ViewSonic IFP8650-2?
The IFP8650-2 is an 86-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. Brightness is 350 nits typical, and the viewing angle is 178 degrees both horizontally and vertically.
Does the IFP8650-2 support Windows software through a slot-in PC?
Yes. The OPS slot takes a proprietary slot-in PC, and myViewBoard for Windows is embedded in compatible slot-in PCs, including the VPC14-WP, VPC15-WP, VPC16-WP and VPC17-WP series. Without a slot-in PC, the embedded Android 7 system runs annotation and playback.
Can the IFP8650-2 share content wirelessly?
Yes. ViewBoard Cast provides wireless presentation with touch feedback and four-way split-screen content sharing. Simple LAN sharing is also available between the panel and a slot-in device on the same network, which keeps classroom setup simple.
How many touch points and pens does the IFP8650-2 support?
It supports 20 touch points and 10 writing points with infrared touch. The package includes two touching pens, and the dual-pen writing uses slim 3 mm pens for fine detail work during group discussion.
What power does the IFP8650-2 draw, and what is in the box?
Typical consumption is 155 W when on and under 0.5 W when off, with 100–240 V AC input. The box includes four 3-metre power cables, a remote control, a USB cable, an AV cable, two touching pens, an RS232 adapter, five clamps, a plate, eight screws and an HDMI cable.
