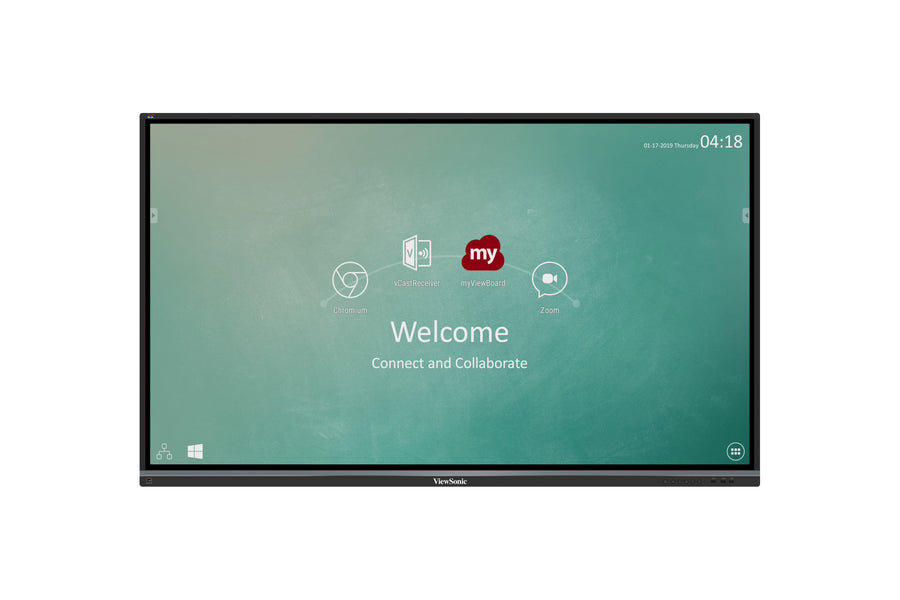

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650-2
The ViewSonic ViewBoard IFP8650-2 is an 86-inch 4K UHD interactive display for classrooms and other teaching spaces. It offers 20-point touch with 10-point writing, 5,000:1 contrast with DCR and an embedded Android 7 system with an OPS slot for a slot-in PC. Procure.ae supplies the IFP8650-2 across the UAE, with delivery and installation.
The IFP8650-2 has an 86-inch TFT LCD with 3840 x 2160 resolution, a 16:9 aspect ratio and 1.07 billion colors at 10-bit depth. Brightness is 350 nits typical, 300 nits minimum, with 5,000:1 contrast when DCR is enabled. Infrared touch supports 20 points of touch and 10 points of writing. The embedded dual-core processor with 2 GB DDR4 RAM and 16 GB storage runs Android 7 and myViewBoard, and the integrated speakers are rated 10 W x 2 and 15 W x 1.
The IFP8650-2 suits classrooms and teaching spaces where a teacher works from the front of the room. Dual-pen writing with slim 3 mm pens supports fine detail work during group discussion, and the slim bezel keeps the viewing edge clean. ViewBoard Cast provides wireless presentation with four-way split-screen content sharing, and simple LAN sharing links the panel with a slot-in device. Compared with the IFP8650, it lists 5,000:1 contrast with DCR and a slim bezel.
Key features
Specifications
| Key Features | 20-point touch, 10-point writing, dual-pen writing, ViewBoard Cast wireless presentation, OPS slot-in PC support, Android 7, built-in speakers, slim bezel |
| Model | IFP8650-2 |
| Type | Interactive Flat Panel |
| What's in the Box | Power cable (3 m) x4, remote control, USB cable (3 m), AV cable, touching pen x2, quick start guide, RS232 adapter, clamp x5, plate, screw x8, HDMI cable |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Bezel Size | Slim bezel |
| Brightness | 350 nits (typical); 300 nits (minimum) |
| Color Depth | 1.07 billion colors (10-bit) |
| Contrast Ratio | 5,000:1 (with DCR) |
| Orientation | Landscape |
| Panel Technology | LCD |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 20-point touch, 10-point writing |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Infrared |
| Viewing Angle | 178° horizontal, 178° vertical |
| Operating System | Android 7 |
| Processor | ARM Cortex-A73 dual-core, 1.2 GHz |
| RAM | 2 GB DDR4 |
| Storage | 16 GB |
| Speaker Output | 10 W x 2 and 15 W x 1 |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | 1 OPS PC slot (proprietary) |
| Ports | RGB/VGA x1, audio in x1, CVBS x1, RS232 x1, OPS PC slot x1, earphone out x1, RJ45 x1, USB 2.0 Type-A x4, USB 3.0 Type-A x2, Touch Type-B x2 |
| Power Consumption | 155 W typical; under 0.5 W (off) |
| Dimensions | 1958 x 1160 x 90 mm |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | Anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 69.7 kg (net) |
| Certifications | FCC, cTUVus, CB, CE, BSMI, RCM, BIS, CCC, EAC; ENERGY STAR 8.0; EEI A+ |
