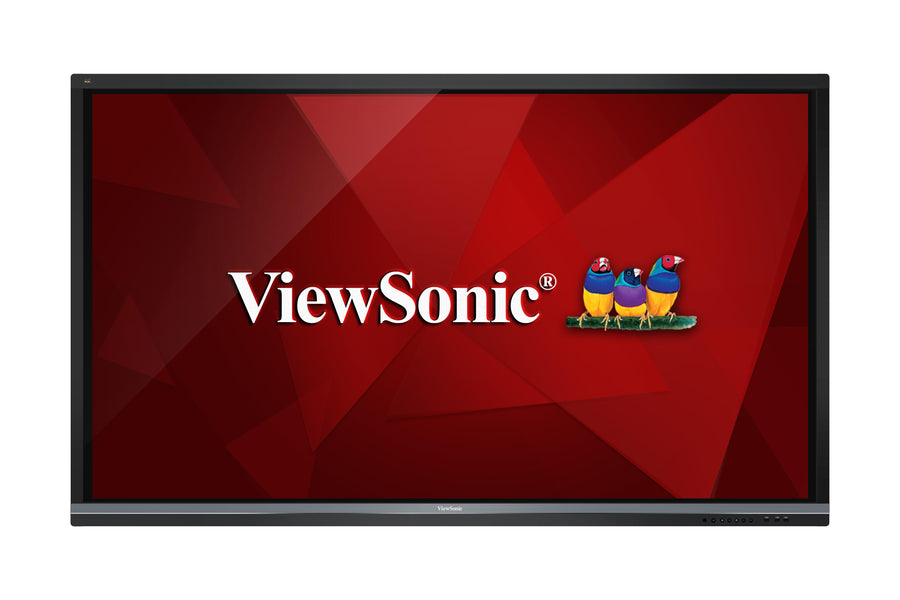

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650
The ViewSonic ViewBoard IFP8650 is an 86-inch 4K UHD interactive flat panel for classrooms and corporate meeting rooms. It has 20-point touch with 10-point writing, 350 nits typical brightness and a quad-core processor for annotation and multimedia playback. Procure.ae supplies the IFP8650 across the UAE, with delivery and installation.
The IFP8650 has an 86-inch TFT LCD with 3840 x 2160 resolution, a 16:9 aspect ratio and 1.07 billion colors at 10-bit depth. Brightness is 350 nits typical, 300 nits minimum, with 1,200:1 typical contrast. Infrared touch supports 20 points of touch and 10 points of writing, so several users can write or draw with fingers or styluses at once. The quad-core processor with 2 GB RAM and 16 GB eMMC storage handles annotation and multimedia playback without a PC.
The IFP8650 fits classrooms and corporate meeting rooms where the panel is the main display. Two PC slots accept a slot-in PC for more computing-intensive interactive applications. Its ports include DisplayPort, RGB/VGA, CVBS, RS232 for control, RJ45 and USB Type-A and Type-B ports. The panel is VESA-compatible with an 800 x 600 mm wall mount, or it can use an optional trolley cart. Compared with the IFP8650-2, it lists 1,200:1 typical contrast rather than 5,000:1 with DCR.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical); 300 nits (minimum)
Touch Technology
Infrared
- 20-point touch
- 4K UHD panel
- Quad-core processor
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-point touch
20 touch points and 10 writing points with infrared recognition.
02
4K UHD panel
3840 x 2160 at 16:9 with 350 nits typical brightness.
03
Quad-core processor
Built-in quad-core CPU with 2 GB RAM and 16 GB eMMC storage.
04
Slot-in PC support
Two PC slots accept a slot-in PC for intensive applications.
05
myViewBoard software
Pre-installed myViewBoard whiteboarding software.
06
Multiple connectivity
RGB/VGA, DisplayPort, RS232, RJ45, CVBS and USB ports.
07
VESA wall mounting
800 x 600 mm VESA wall mount, with an optional trolley cart.
08
Certified standards
FCC, CE, cTUVus, RCM and CCC standards are listed.
Specifications
35 specificationsGeneral
Key Features20-point touch, 10-point writing, infrared touch, slot-in PC support, pre-installed myViewBoard, quad-core processor, VESA mount, 4K UHD panel
ModelIFP8650
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical); 300 nits (minimum)
Color Depth1.07 billion colors (10-bit)
Contrast Ratio1,200:1 (typical)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point touch, 10-point writing
Touch Resolution32767 x 32767
Touch Response Timeunder 15 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A53 quad-core, 1.2 GHz
RAM2 GB
Storage16 GB eMMC
Audio
DisplayPortDisplayPort x1
Connectivity
Ethernet10/100M auto-detection, DHCP
Input Voltage100–240 V AC ±10%
PortsRGB/VGA x1, DisplayPort x1, audio in x1, CVBS x1, RS232 x1, RJ45 x1, earphone out x1, USB 2.0 Type-A x4, USB 3.0 Type-A x2, USB 2.0 Type-B touch x2, PC slot x2
Serial PortRS232 x1
VGA InputRGB / VGA x1
Power
Power Consumption361 W typical (without slot-in PC); 456 W typical (with slot-in PC)
Physical
Dimensions1988 x 1186 x 100 mm (without stand)
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight78 kg (net)
Compliance
CertificationsFCC, CE, cTUVus, RCM, CCC
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the ViewSonic IFP8650?
The IFP8650 is an 86-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. Brightness is 350 nits typical, and the viewing angle is 178 degrees both horizontally and vertically.
Does the IFP8650 need a PC to run annotation software?
No. Its built-in quad-core processor with 2 GB RAM and 16 GB storage runs annotation and multimedia playback. Two PC slots accept a slot-in PC for more demanding Windows applications.
How many touch points does the IFP8650 support?
It supports 20-point touch with 10-point writing using infrared recognition, and the touch resolution is 32767 x 32767. Touch response time is under 15 ms, and multiple users can write or draw with fingers or styluses at the same time.
What power does the IFP8650 draw, and what does it need?
It draws 361 W typical without a slot-in PC and 456 W typical with one. Input is 100–240 V AC ±10%, and the panel operates from 0 to 40 °C at 10% to 90% humidity without condensation.
What mounting does the IFP8650 need?
The panel is VESA-compatible with an 800 x 600 mm wall mount, or it can use an optional trolley cart. Its size without the stand is 1988 x 1186 x 100 mm and net weight is 78 kg, so use a bracket rated for that load and a qualified installer. Procure.ae installs across the UAE.
Can I buy the IFP8650 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
