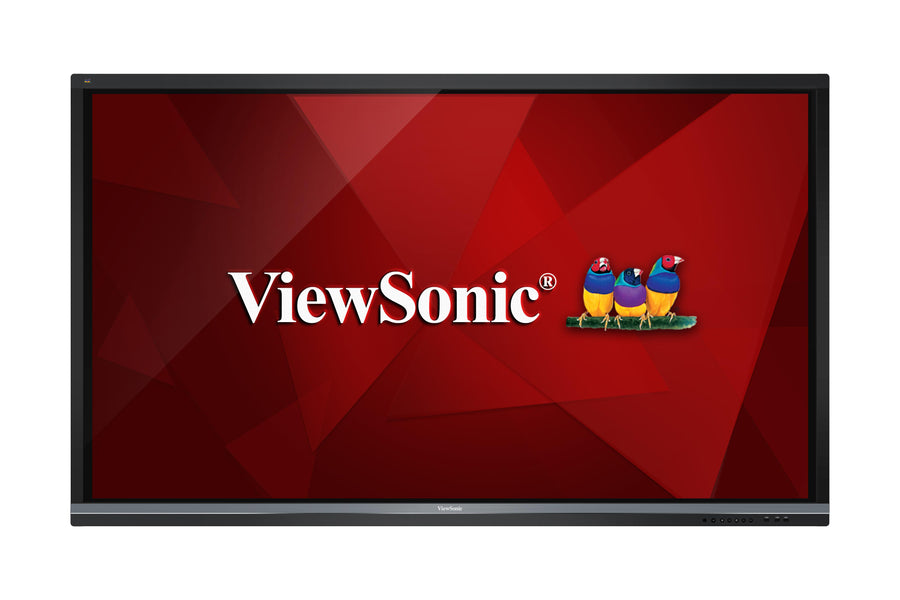

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8650

The ViewSonic ViewBoard IFP8650 is an 86-inch 4K UHD interactive flat panel for classrooms and corporate meeting rooms. It has 20-point touch with 10-point writing, 350 nits typical brightness and a quad-core processor for annotation and multimedia playback. Procure.ae supplies the IFP8650 across the UAE, with delivery and installation.

The IFP8650 has an 86-inch TFT LCD with 3840 x 2160 resolution, a 16:9 aspect ratio and 1.07 billion colors at 10-bit depth. Brightness is 350 nits typical, 300 nits minimum, with 1,200:1 typical contrast. Infrared touch supports 20 points of touch and 10 points of writing, so several users can write or draw with fingers or styluses at once. The quad-core processor with 2 GB RAM and 16 GB eMMC storage handles annotation and multimedia playback without a PC.

The IFP8650 fits classrooms and corporate meeting rooms where the panel is the main display. Two PC slots accept a slot-in PC for more computing-intensive interactive applications. Its ports include DisplayPort, RGB/VGA, CVBS, RS232 for control, RJ45 and USB Type-A and Type-B ports. The panel is VESA-compatible with an 800 x 600 mm wall mount, or it can use an optional trolley cart. Compared with the IFP8650-2, it lists 1,200:1 typical contrast rather than 5,000:1 with DCR.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical); 300 nits (minimum)
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
78 kg (net)

Key features

01
20-point touch
20 touch points and 10 writing points with infrared recognition.
02
4K UHD panel
3840 x 2160 at 16:9 with 350 nits typical brightness.
03
Quad-core processor
Built-in quad-core CPU with 2 GB RAM and 16 GB eMMC storage.
04
Slot-in PC support
Two PC slots accept a slot-in PC for intensive applications.
05
myViewBoard software
Pre-installed myViewBoard whiteboarding software.
06
Multiple connectivity
RGB/VGA, DisplayPort, RS232, RJ45, CVBS and USB ports.
07
VESA wall mounting
800 x 600 mm VESA wall mount, with an optional trolley cart.
08
Certified standards
FCC, CE, cTUVus, RCM and CCC standards are listed.

Specifications

General
Key Features20-point touch, 10-point writing, infrared touch, slot-in PC support, pre-installed myViewBoard, quad-core processor, VESA mount, 4K UHD panel
ModelIFP8650
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical); 300 nits (minimum)
Color Depth1.07 billion colors (10-bit)
Contrast Ratio1,200:1 (typical)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point touch, 10-point writing
Touch Resolution32767 x 32767
Touch Response Timeunder 15 ms
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
ProcessorARM Cortex-A53 quad-core, 1.2 GHz
RAM2 GB
Storage16 GB eMMC
Audio
DisplayPortDisplayPort x1
Connectivity
Ethernet10/100M auto-detection, DHCP
Input Voltage100–240 V AC ±10%
PortsRGB/VGA x1, DisplayPort x1, audio in x1, CVBS x1, RS232 x1, RJ45 x1, earphone out x1, USB 2.0 Type-A x4, USB 3.0 Type-A x2, USB 2.0 Type-B touch x2, PC slot x2
Serial PortRS232 x1
VGA InputRGB / VGA x1
Power
Power Consumption361 W typical (without slot-in PC); 456 W typical (with slot-in PC)
Physical
Dimensions1988 x 1186 x 100 mm (without stand)
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight78 kg (net)
Compliance
CertificationsFCC, CE, cTUVus, RCM, CCC
