ViewSonicInteractive Flat PanelsSKU IFP8635-1

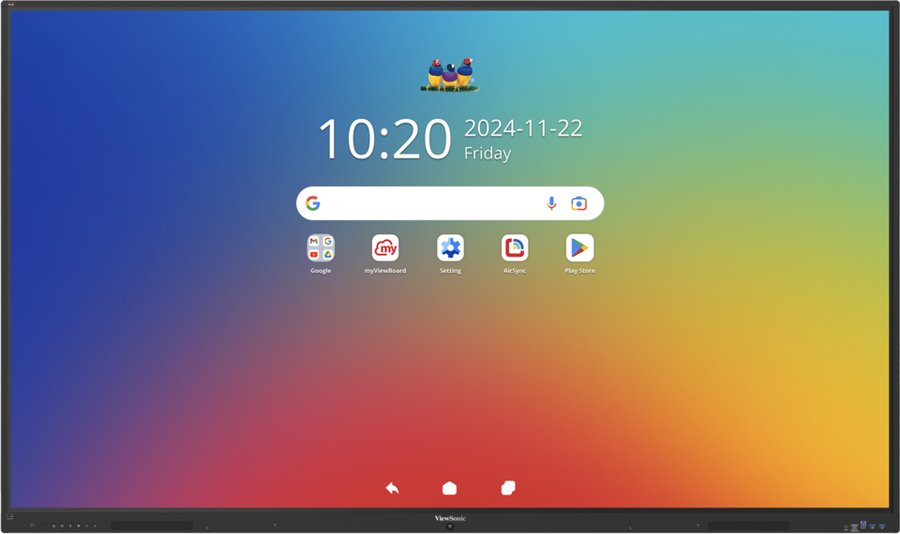

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8635-1
The ViewSonic ViewBoard IFP8635-1 is an 86-inch 4K UHD interactive flat panel for classrooms and other teaching spaces. It combines 64-point infrared touch, 350 nits typical brightness and an octa-core Android 16 system with 8 GB RAM. Procure.ae supplies the IFP8635-1 across the UAE, with delivery and installation.
The IFP8635-1 (also listed as IFP8635-1-1C) has an 86-inch TFT LCD with 3840 x 2160 resolution, 350 nits typical brightness, 5,000:1 maximum contrast with DCR enabled and a 6.5 ms response time. Infrared touch supports up to 64 points with palm rejection and a 32767 x 32767 touch resolution. The octa-core CPU, 8 GB of RAM and 64 GB or 128 GB of storage run Android 16 with myViewBoard basic annotation. Built-in light and PIR sensors support automatic brightness adjustment. Power draw is 93.99 W when on and under 0.5 W when off.
The IFP8635-1 suits classrooms where the teacher runs lessons from the panel itself. myViewBoard basic annotation runs on Android, and myViewBoard Pro annotation for Windows is embedded through the VPC slot-in PC. AirSync handles wireless presentation, and the front USB Type-C port provides 65 W power delivery alongside DisplayPort 1.2 and 100M Ethernet. The panel mounts on an 800 x 600 mm VESA pattern. Compared with the IFP8641-1, it offers 65 W front USB-C power delivery rather than 100 W.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared
- 4K UHD panel
- 64-point infrared touch
- Android 16 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution at 16:9 with 350 nits typical brightness.
02
64-point infrared touch
Up to 64 points of touch with palm rejection and a 32767 x 32767 touch resolution.
03
Android 16 system
Octa-core CPU, 8 GB RAM and 64 GB or 128 GB of storage.
04
myViewBoard annotation
Basic annotation on Android and Pro annotation on Windows embedded in the VPC.
05
AirSync wireless presentation
Shares screens wirelessly to the panel from connected devices.
06
Light and PIR sensors
Built-in light sensor and PIR motion sensor are both listed as standard.
07
Multiple connectivity
DisplayPort, RGB/VGA, RS232, two RJ45 ports and five USB Type-A ports.
08
EDLA-certified Android
EDLA-certified Android 16 with access to Google Play apps.
Specifications
36 specificationsGeneral
Key Features64-point infrared touch, palm rejection, myViewBoard annotation, AirSync wireless presentation, light and PIR sensors, EDLA-certified Android 16, SmartPort USB, device management
ModelIFP8635-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio5,000:1 (max, DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size86 inch
Touch Points64-point multi-touch
Touch Resolution32767 x 32767
Touch TechnologyInfrared
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 16
ProcessorOcta-core CPU
RAM8 GB
Storage64 GB / 128 GB
Audio
Audio OutLine out x1
DisplayPortDisplayPort x1
Connectivity
Ethernet10/100/1000 Mbps (RJ45 x2)
Input Voltage100–240 V AC ±10%
OPS Slot1 OPS PC slot
PortsDisplayPort x1, RGB/VGA x1, RJ45 x2, USB-C x2, USB Type-A x5, USB Type-B x2, RS232 x1
Serial PortRS232 x1
VGA InputRGB / VGA x1
Power
Power Consumption93.99 W (on); under 0.5 W (off)
Physical
Dimensions1956.7 x 1159.6 x 98.3 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection9H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight49.7 kg
Compliance
CertificationsEDLA-certified
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8635-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the ViewSonic IFP8635-1?
The IFP8635-1 is an 86-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. Brightness is 350 nits typical, and the viewing angle is 178 degrees both horizontally and vertically.
Does the IFP8635-1 support Windows annotation as well as Android?
Yes. The panel runs Android 16 with myViewBoard basic annotation, and myViewBoard Pro annotation for Windows is embedded through the VPC slot-in PC. AirSync covers wireless presentation from other devices.
How many touch points does the IFP8635-1 support?
It supports up to 64 points of touch using infrared recognition. Palm rejection is included, so a resting hand does not register as input, and the touch resolution is 32767 x 32767.
What mounting does the IFP8635-1 need?
The panel uses an 800 x 600 mm VESA mount. Its physical size is 1956.7 x 1159.6 x 98.3 mm and net weight is 49.7 kg, so use a wall bracket rated for that load and have it installed by a qualified installer. Procure.ae delivers and installs across the UAE.
Is the IFP8635-1 suitable for a classroom?
Yes. The 86-inch 4K screen and 64-point touch suit whole-class teaching, and the built-in Android system runs Google Play apps for lessons. It also accepts a slot-in PC for Windows software.
