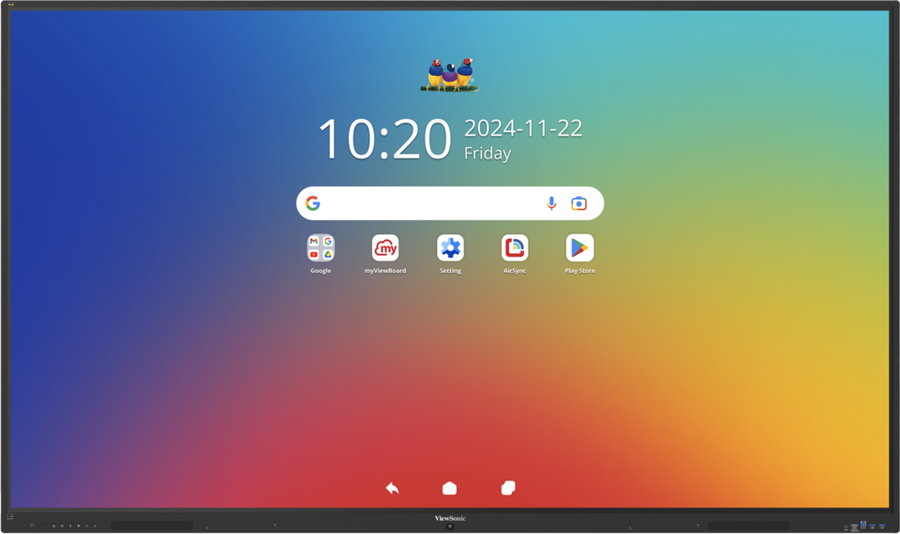

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8635-1
The ViewSonic ViewBoard IFP8635-1 is an 86-inch 4K UHD interactive flat panel for classrooms and other teaching spaces. It combines 64-point infrared touch, 350 nits typical brightness and an octa-core Android 16 system with 8 GB RAM. Procure.ae supplies the IFP8635-1 across the UAE, with delivery and installation.
The IFP8635-1 (also listed as IFP8635-1-1C) has an 86-inch TFT LCD with 3840 x 2160 resolution, 350 nits typical brightness, 5,000:1 maximum contrast with DCR enabled and a 6.5 ms response time. Infrared touch supports up to 64 points with palm rejection and a 32767 x 32767 touch resolution. The octa-core CPU, 8 GB of RAM and 64 GB or 128 GB of storage run Android 16 with myViewBoard basic annotation. Built-in light and PIR sensors support automatic brightness adjustment. Power draw is 93.99 W when on and under 0.5 W when off.
The IFP8635-1 suits classrooms where the teacher runs lessons from the panel itself. myViewBoard basic annotation runs on Android, and myViewBoard Pro annotation for Windows is embedded through the VPC slot-in PC. AirSync handles wireless presentation, and the front USB Type-C port provides 65 W power delivery alongside DisplayPort 1.2 and 100M Ethernet. The panel mounts on an 800 x 600 mm VESA pattern. Compared with the IFP8641-1, it offers 65 W front USB-C power delivery rather than 100 W.
Key features
Specifications
| Key Features | 64-point infrared touch, palm rejection, myViewBoard annotation, AirSync wireless presentation, light and PIR sensors, EDLA-certified Android 16, SmartPort USB, device management |
| Model | IFP8635-1 |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits (typical) |
| Color Depth | 1.07 billion colors (8-bit + FRC) |
| Contrast Ratio | 5,000:1 (max, DCR enabled) |
| Orientation | Landscape |
| Panel Technology | LCD |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6.5 ms |
| Screen Size | 86 inch |
| Touch Points | 64-point multi-touch |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Infrared |
| Viewing Angle | 178° horizontal, 178° vertical |
| Operating System | Android 16 |
| Processor | Octa-core CPU |
| RAM | 8 GB |
| Storage | 64 GB / 128 GB |
| Audio Out | Line out x1 |
| DisplayPort | DisplayPort x1 |
| Ethernet | 10/100/1000 Mbps (RJ45 x2) |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | 1 OPS PC slot |
| Ports | DisplayPort x1, RGB/VGA x1, RJ45 x2, USB-C x2, USB Type-A x5, USB Type-B x2, RS232 x1 |
| Serial Port | RS232 x1 |
| VGA Input | RGB / VGA x1 |
| Power Consumption | 93.99 W (on); under 0.5 W (off) |
| Dimensions | 1956.7 x 1159.6 x 98.3 mm |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 49.7 kg |
| Certifications | EDLA-certified |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
