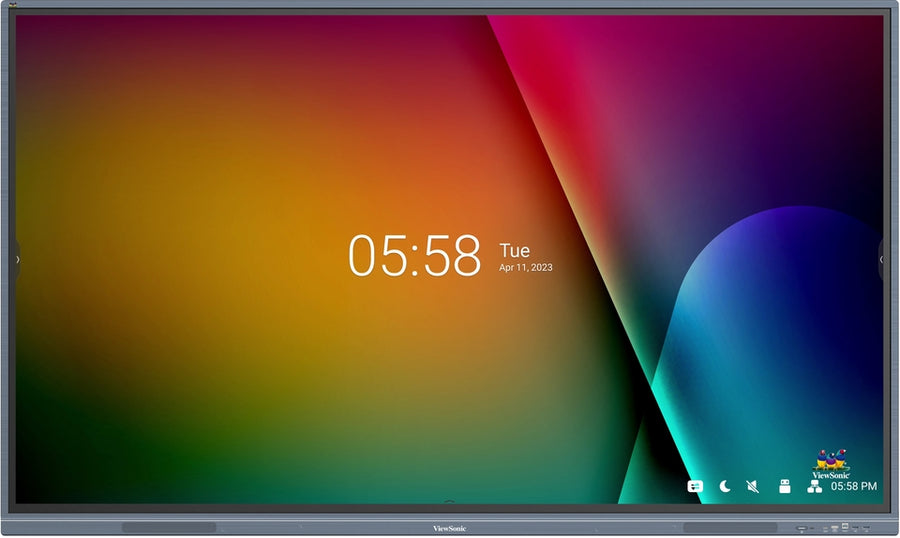

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8633
The ViewSonic IFP8633 is an 86-inch 4K UHD interactive flat panel for classrooms and collaborative spaces. It has 40-point Ultra Fine Touch, a 400-nit display, 4 GB of RAM and an optional Intel OPS slot. Procure.ae supplies the ViewSonic IFP8633 across the UAE.
The ViewBoard IFP8633 is an 86-inch 4K UHD display with a VA panel, 400 nits brightness and a 5,000:1 maximum contrast ratio with DCR enabled. Its bonded panel gives clearer colors and reduced glare, and its 8 ms response time and 178° viewing angles suit large rooms. Ultra Fine Touch supports 40 points, with fingers or dual-tip pens. A quad-core processor, 4 GB of DDR4 RAM and 32 GB of storage run the built-in software. Front-facing speakers and a USB-C port with 65 W power delivery are included.
The IFP8633 suits large classrooms and meeting rooms where teachers and students share one display. myViewBoard is preinstalled for lesson delivery and device management. Viewboard Cast offers wireless casting with touch feedback. An optional Intel standard OPS slot adds an Intel PC, and myViewBoard for Windows is available with the optional Windows slot-in PC. Its 800 x 600 mm VESA pattern suits a wall bracket.
Key features
Specifications
| Key Features | 40-point Ultra Fine Touch, dual-tip pen support, bonded 4K panel, front-facing speakers, USB-C with 65 W PD, myViewBoard pre-installed, Viewboard Cast with touch feedback, optional OPS and Wi-Fi |
| Model | IFP8633 |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Color Depth | 1.07 billion colors |
| Contrast Ratio | 5,000:1 (max., with DCR enabled) |
| Panel Technology | VA (TFT LCD with DLED backlight) |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 40-point multi-touch |
| Touch Technology | Ultra Fine Touch (UFT) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Processor | Quad-core ARM Cortex-A55 |
| RAM | 4 GB DDR4 |
| Storage | 32 GB |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Optional Intel standard OPS |
| Ports | RGB/VGA × 1, RS232 × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB 3.0 × 4 (front × 2, rear × 2), USB 2.0 × 1, USB-B × 2, USB-C × 1 |
| USB-C Ports | 1 (front; PD 65 W, DP 1.2, USB 2.0 data and 10/100 Mbps sharing) |
| Power Consumption | 154 W (on), 0.5 W or less (off) |
| Dimensions | 1957 x 1160 x 100 mm |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 58.55 kg (net) |
