ViewSonicInteractive Flat PanelsSKU 8652-1C

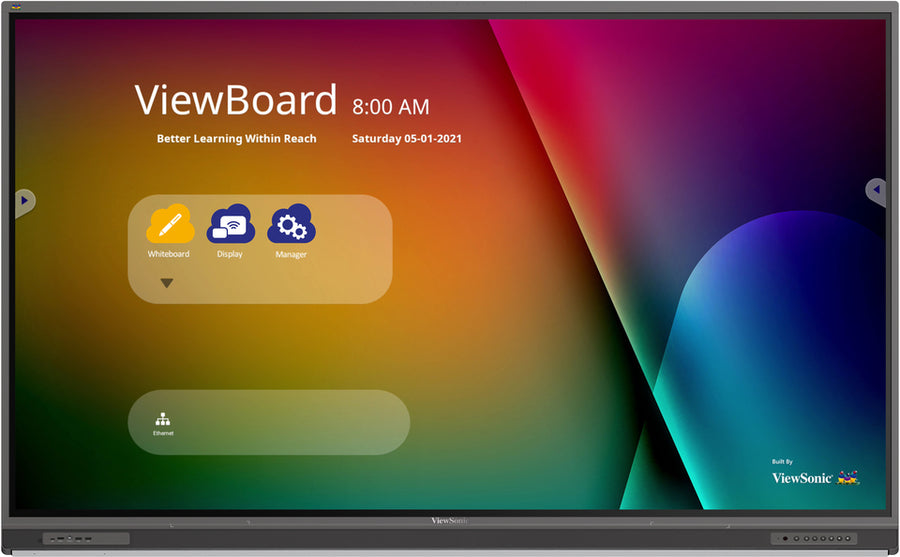

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – 8652-1C
The ViewSonic ViewBoard 8652-1C is an 86-inch 4K UHD interactive flat panel for teaching and hybrid lessons. Its 3840 x 2160 display is rated 400 nits typical, touch registers 33 points on Windows and 20 on Android, and an 8-microphone array sits in the panel. Procure.ae supplies the ViewBoard 8652-1C across the UAE.
The 8652-1C has a 3840 x 2160 display with 400 nits typical brightness, 1,100:1 typical contrast and 2,500:1 with DCR, showing 1.07 billion colours at 10-bit depth. Ultra Fine Touch technology supports 33-point touch on Windows and 20 points on Android, with palm awareness for natural writing. Dual-pen capability is supported, and the surface has a 9H hardness rating with anti-glare coating. An ARM Cortex-A73 x4 processor runs with 4 GB DDR4 RAM and 32 GB storage.
Procure.ae supplies the 8652-1C as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. The panel has two 15 W front-facing speakers and a 15 W subwoofer, plus an 8-microphone array. Teachers running hybrid lessons from a personal device can reach the array and a connected visualiser to pick the camera and microphone source. Compared with the 8650-5, this model is rated 400 nits against 350 nits, adds an RGB/VGA input and an 8-microphone array, and has 9H rather than 7H surface hardness.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Infrared (Ultra Fine Touch)
- Ultra Fine Touch
- 4K UHD display
- Palm awareness and dual-pen
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
Infrared touch with 33 points on Windows and 20 points on Android at 32767 x 32767 resolution.
02
4K UHD display
3840 x 2160 resolution with 400 nits typical brightness and 1.07 billion colours.
03
Palm awareness and dual-pen
Palm awareness technology and dual-pen capability for natural writing.
04
8-microphone array
Built-in 8-mic array that works with a connected visualiser for hybrid lessons.
05
Front speakers
Two 15 W front-facing speakers and a 15 W subwoofer.
06
Single-cable connectivity
USB-C with DP 1.2, USB 2.0, 100M Ethernet and 65 W power delivery.
07
Wireless and remote management
ViewBoard Cast and myViewBoard Display, plus browser-based remote management.
08
Slot-in expansion
OPS module slot and WiFi module slot, with a light sensor.
Specifications
35 specificationsGeneral
Key FeaturesUltra Fine Touch, palm awareness, dual-pen writing, 8-mic array, browser-based remote management, single-cable USB-C, ViewBoard Cast, myViewBoard Display
Model8652-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits (typical)
Color Depth1.07 billion colours (10-bit)
Contrast Ratio1,100:1 (typical), 2,500:1 (with DCR)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points33 points (Windows), 20 points (Android)
Touch Resolution32767 x 32767
Touch TechnologyInfrared (Ultra Fine Touch)
Viewing Angle178° horizontal / 178° vertical
Performance
ProcessorARM Cortex-A73 x4
RAM4 GB DDR4
Storage32 GB
Audio
Microphone8-microphone array
Speaker Output2 × 15 W front-facing, 15 W subwoofer
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS module slot × 1
PortsRGB/VGA × 1 (1920 x 1080 at 60 Hz), USB 2.0 × 3, USB 3.0 × 2, USB Type-B touch × 3, USB-C × 1 (DP 1.2, PD 65 W, Ethernet 100M), RJ45 × 2, RS232 × 1
Wi-FiWiFi module slot × 1
Power
Power Consumption150.4 W (typical); under 0.5 W (off)
Physical
Dimensions1957 x 1211 x 120 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions2112 x 1332 x 280 mm
Shipping Weight81.40 kg
Surface Protection9H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight68.65 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – 8652-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ViewBoard 8652-1C support Windows and Android?
Yes. Touch registers 33 points on Windows and 20 points on Android. myViewBoard Whiteboard runs on Android, and myViewBoard Whiteboard for Windows is embedded in a slot-in PC through the OPS module slot.
How does the 8652-1C handle hybrid lessons?
The panel's 8-microphone array and two front 15 W speakers support hybrid lessons. A teacher working from a personal device can reach the array and a connected visualiser to select the camera and microphone source for remote students.
Can the 8652-1C be wall mounted, and what VESA size does it use?
Yes. The panel uses an 800 x 600 mm VESA pattern and weighs 68.65 kg net. The wall mount and structure must be rated for that weight, and Procure.ae can arrange installation across the UAE.
Can a laptop connect to the 8652-1C with one cable?
Yes. The USB-C port carries DP 1.2 video, USB 2.0 data, 100M Ethernet and up to 65 W of power delivery, so a compatible laptop can share its screen and charge through one cable. The panel also has an RGB/VGA input for older devices.
Does the 8652-1C include wireless presentation?
Yes. The panel supports ViewBoard Cast and myViewBoard Display for wireless presentation, so staff and students can share content from their own devices. A WiFi module slot is available for an additional wireless module.
