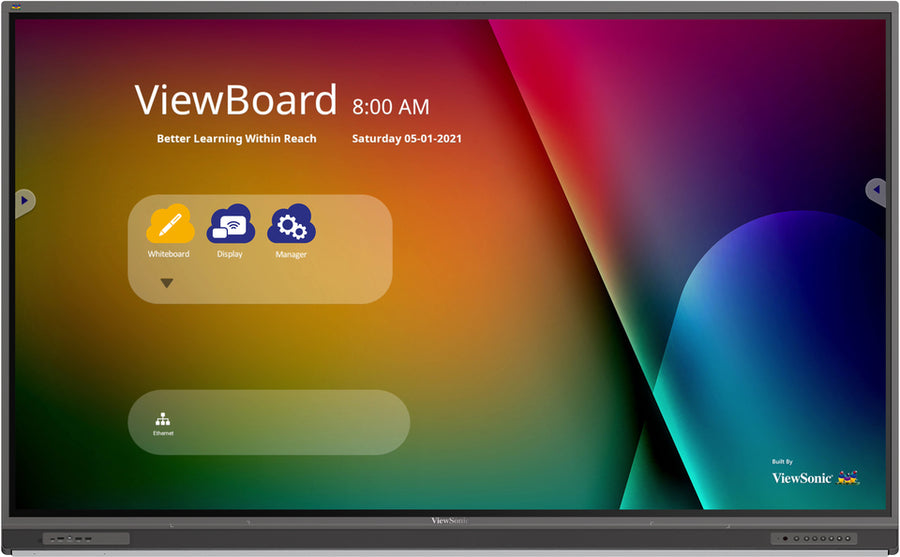

The ViewSonic ViewBoard 8652-1C is an 86-inch 4K UHD interactive flat panel for teaching and hybrid lessons. Its 3840 x 2160 display is rated 400 nits typical, touch registers 33 points on Windows and 20 on Android, and an 8-microphone array sits in the panel. Procure.ae supplies the ViewBoard 8652-1C across the UAE.
The 8652-1C has a 3840 x 2160 display with 400 nits typical brightness, 1,100:1 typical contrast and 2,500:1 with DCR, showing 1.07 billion colours at 10-bit depth. Ultra Fine Touch technology supports 33-point touch on Windows and 20 points on Android, with palm awareness for natural writing. Dual-pen capability is supported, and the surface has a 9H hardness rating with anti-glare coating. An ARM Cortex-A73 x4 processor runs with 4 GB DDR4 RAM and 32 GB storage.
Procure.ae supplies the 8652-1C as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. The panel has two 15 W front-facing speakers and a 15 W subwoofer, plus an 8-microphone array. Teachers running hybrid lessons from a personal device can reach the array and a connected visualiser to pick the camera and microphone source. Compared with the 8650-5, this model is rated 400 nits against 350 nits, adds an RGB/VGA input and an 8-microphone array, and has 9H rather than 7H surface hardness.
| Key Features | Ultra Fine Touch, palm awareness, dual-pen writing, 8-mic array, browser-based remote management, single-cable USB-C, ViewBoard Cast, myViewBoard Display |
| Model | 8652-1C |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 400 nits (typical) |
| Color Depth | 1.07 billion colours (10-bit) |
| Contrast Ratio | 1,100:1 (typical), 2,500:1 (with DCR) |
| Orientation | Landscape |
| Panel Technology | LCD |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 33 points (Windows), 20 points (Android) |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Infrared (Ultra Fine Touch) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Processor | ARM Cortex-A73 x4 |
| RAM | 4 GB DDR4 |
| Storage | 32 GB |
| Microphone | 8-microphone array |
| Speaker Output | 2 × 15 W front-facing, 15 W subwoofer |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | OPS module slot × 1 |
| Ports | RGB/VGA × 1 (1920 x 1080 at 60 Hz), USB 2.0 × 3, USB 3.0 × 2, USB Type-B touch × 3, USB-C × 1 (DP 1.2, PD 65 W, Ethernet 100M), RJ45 × 2, RS232 × 1 |
| Wi-Fi | WiFi module slot × 1 |
| Power Consumption | 150.4 W (typical); under 0.5 W (off) |
| Dimensions | 1957 x 1211 x 120 mm |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2112 x 1332 x 280 mm |
| Shipping Weight | 81.40 kg |
| Surface Protection | 9H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 68.65 kg |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
