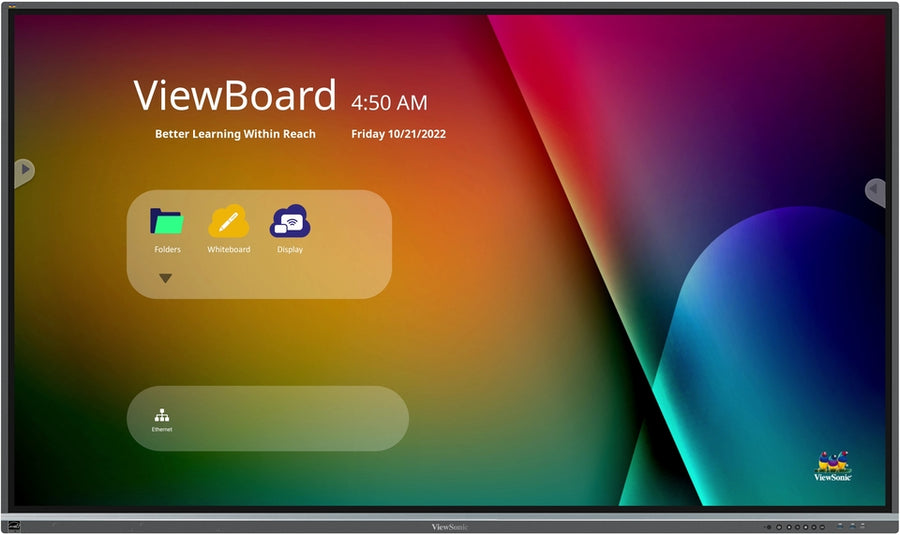

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – 8650-5
The ViewSonic ViewBoard 8650-5 is an 86-inch 4K UHD interactive flat panel for classrooms and training rooms. Its 3840 x 2160 IPS display has 350 nits typical brightness, and infrared touch registers 40 points on Windows and 20 on Android. Procure.ae supplies the ViewBoard 8650-5 across the UAE.
The 8650-5 uses a 3840 x 2160 (4K UHD) IPS panel with a DLED backlight, 350 nits typical brightness and 1,200:1 typical contrast, rising to 5,000:1 with DCR. It displays 1.07 billion colours at 10-bit depth. Ultra Fine Touch infrared technology provides a 32768 x 32768 touch resolution, and the anti-glare glass has a 7H hardness rating. An ARM Cortex-A73 x4 and Cortex-A53 x4 processor runs with 4 GB RAM and 32 GB storage.
Procure.ae supplies the 8650-5 as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. A single USB-C port carries DP 1.2 video, USB 2.0 data, 100M Ethernet and 65 W power delivery, so a laptop can connect and charge through one cable. An OPS slot takes a slot-in PC running myViewBoard for Windows, and the 800 x 600 mm VESA pattern supports wall mounting. Compared with the 8650-5F, this model has 4 GB RAM and 32 GB storage rather than 8 GB and 64 GB.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared (Ultra Fine Touch)
- Ultra Fine Touch
- 4K UHD IPS panel
- Dual-pen writing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra Fine Touch
Infrared touch registers 40 points on Windows and 20 points on Android at 32768 x 32768 resolution.
02
4K UHD IPS panel
3840 x 2160 resolution with 350 nits typical brightness and 1.07 billion colours at 10-bit.
03
Dual-pen writing
Dual-pen support for writing, with pens available in a range of colours and sizes.
04
Single-cable USB-C
One USB-C port with DP 1.2, USB 2.0, 100M Ethernet and 65 W power delivery.
05
myViewBoard annotation
Basic myViewBoard annotation software, plus myViewBoard for Windows in a slot-in PC.
06
Wireless presentation
vCast, myViewBoard Display App and AirSync are listed for wireless sharing.
07
Flicker-free blue light filter
Integrated TÜV-certified blue light filter for all brightness levels.
08
OPS and WiFi slots
OPS slot and WiFi module slot, with a light sensor and RS232 port.
Specifications
34 specificationsGeneral
Key FeaturesUltra Fine Touch, dual-pen writing, single-cable USB-C, myViewBoard, vCast and AirSync, light sensor, TÜV-certified blue light filter, flicker-free
Model8650-5
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Bezel SizeSlim
Brightness350 nits (typical)
Color Depth1.07 billion colours (10-bit)
Contrast Ratio1,200:1 (typical), 5,000:1 (DCR)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40 points (Windows), 20 points (Android)
Touch Resolution32768 x 32768
Touch TechnologyInfrared (Ultra Fine Touch)
Viewing Angle178° horizontal / 178° vertical
Performance
ProcessorARM Cortex-A73 x4 + Cortex-A53 x4
RAM4 GB
Storage32 GB
Connectivity
Input Voltage100–240 V AC ±10%
OPS SlotOPS slot × 1
PortsUSB 2.0 × 2, USB 3.0 × 4, USB Type-B touch × 2, USB-C × 1 (DP 1.2, PD 65 W, Ethernet 100M), RJ45 × 2, RS232 × 1, earphone out × 1
Wi-FiWiFi module slot × 1
Power
Power Consumption175 W (typical); under 0.5 W (off)
Physical
Dimensions1957.1 x 1159.8 x 86.5 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions2110 x 1283 x 225 mm
Shipping Weight86.9 kg
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight66.7 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – 8650-5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ViewBoard 8650-5 work with both Windows and Android?
Yes. Touch registers 40 points on Windows and 20 points on Android, and myViewBoard annotation software is available for both. A Windows PC can be fitted through the OPS slot, and simple LAN sharing links the panel with the slot-in device.
What room size is the 86-inch 8650-5 suited to?
The 86-inch panel suits medium and large classrooms and training rooms where content must be readable from the back of the room. The manufacturer's specifications do not state a recommended viewing distance, so Procure.ae can confirm the right screen size for a specific room on request.
Can the 8650-5 be wall mounted, and what VESA pattern does it use?
Yes. The panel uses an 800 x 600 mm VESA pattern and weighs 66.7 kg net, so the wall mount and structure must be rated for that load. Procure.ae can arrange delivery and installation across the UAE.
Can a laptop connect to the 8650-5 with one cable?
Yes. The USB-C port carries DisplayPort 1.2 video, USB 2.0 data, 100M Ethernet and up to 65 W of power delivery, so a compatible laptop can display, connect to the network and charge through one cable. Touch input uses the separate USB Type-B touch ports.
Does the 8650-5 support wireless presentation?
Yes. The manufacturer lists vCast, the myViewBoard Display App and AirSync for wireless presentation, so teachers and students can share content from their own devices without a cable. Wireless sharing works alongside the wired USB-C connection.
