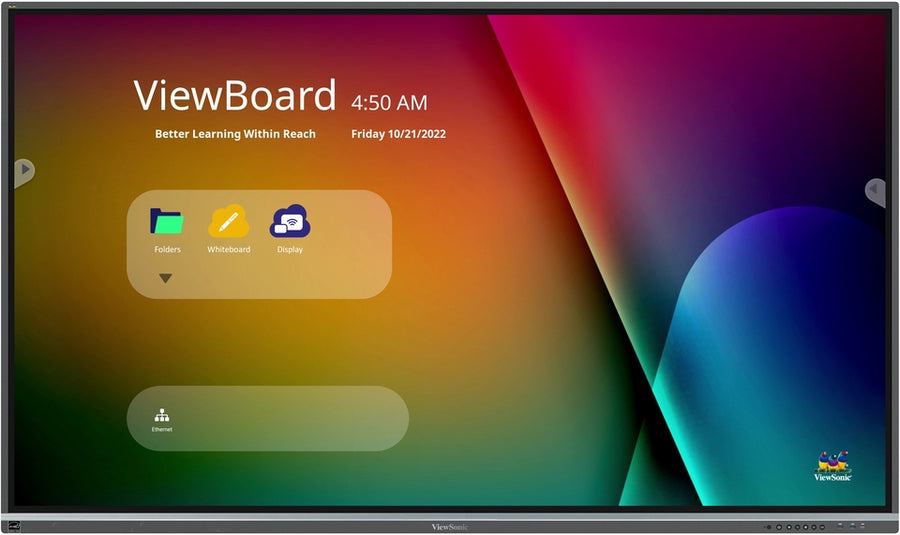

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – 8650-5
The ViewSonic ViewBoard 8650-5 is an 86-inch 4K UHD interactive flat panel for classrooms and training rooms. Its 3840 x 2160 IPS display has 350 nits typical brightness, and infrared touch registers 40 points on Windows and 20 on Android. Procure.ae supplies the ViewBoard 8650-5 across the UAE.
The 8650-5 uses a 3840 x 2160 (4K UHD) IPS panel with a DLED backlight, 350 nits typical brightness and 1,200:1 typical contrast, rising to 5,000:1 with DCR. It displays 1.07 billion colours at 10-bit depth. Ultra Fine Touch infrared technology provides a 32768 x 32768 touch resolution, and the anti-glare glass has a 7H hardness rating. An ARM Cortex-A73 x4 and Cortex-A53 x4 processor runs with 4 GB RAM and 32 GB storage.
Procure.ae supplies the 8650-5 as an authorised ViewSonic reseller, with delivery and installation across the UAE and wider MEA. A single USB-C port carries DP 1.2 video, USB 2.0 data, 100M Ethernet and 65 W power delivery, so a laptop can connect and charge through one cable. An OPS slot takes a slot-in PC running myViewBoard for Windows, and the 800 x 600 mm VESA pattern supports wall mounting. Compared with the 8650-5F, this model has 4 GB RAM and 32 GB storage rather than 8 GB and 64 GB.
Key features
Specifications
| Key Features | Ultra Fine Touch, dual-pen writing, single-cable USB-C, myViewBoard, vCast and AirSync, light sensor, TÜV-certified blue light filter, flicker-free |
| Model | 8650-5 |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Bezel Size | Slim |
| Brightness | 350 nits (typical) |
| Color Depth | 1.07 billion colours (10-bit) |
| Contrast Ratio | 1,200:1 (typical), 5,000:1 (DCR) |
| Orientation | Landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 40 points (Windows), 20 points (Android) |
| Touch Resolution | 32768 x 32768 |
| Touch Technology | Infrared (Ultra Fine Touch) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Processor | ARM Cortex-A73 x4 + Cortex-A53 x4 |
| RAM | 4 GB |
| Storage | 32 GB |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | OPS slot × 1 |
| Ports | USB 2.0 × 2, USB 3.0 × 4, USB Type-B touch × 2, USB-C × 1 (DP 1.2, PD 65 W, Ethernet 100M), RJ45 × 2, RS232 × 1, earphone out × 1 |
| Wi-Fi | WiFi module slot × 1 |
| Power Consumption | 175 W (typical); under 0.5 W (off) |
| Dimensions | 1957.1 x 1159.8 x 86.5 mm |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2110 x 1283 x 225 mm |
| Shipping Weight | 86.9 kg |
| Surface Protection | 7H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 66.7 kg |
