ViewSonic ViewBoard 80-pin OPS Slot-in PC – VPCF5-S33-G1-2A

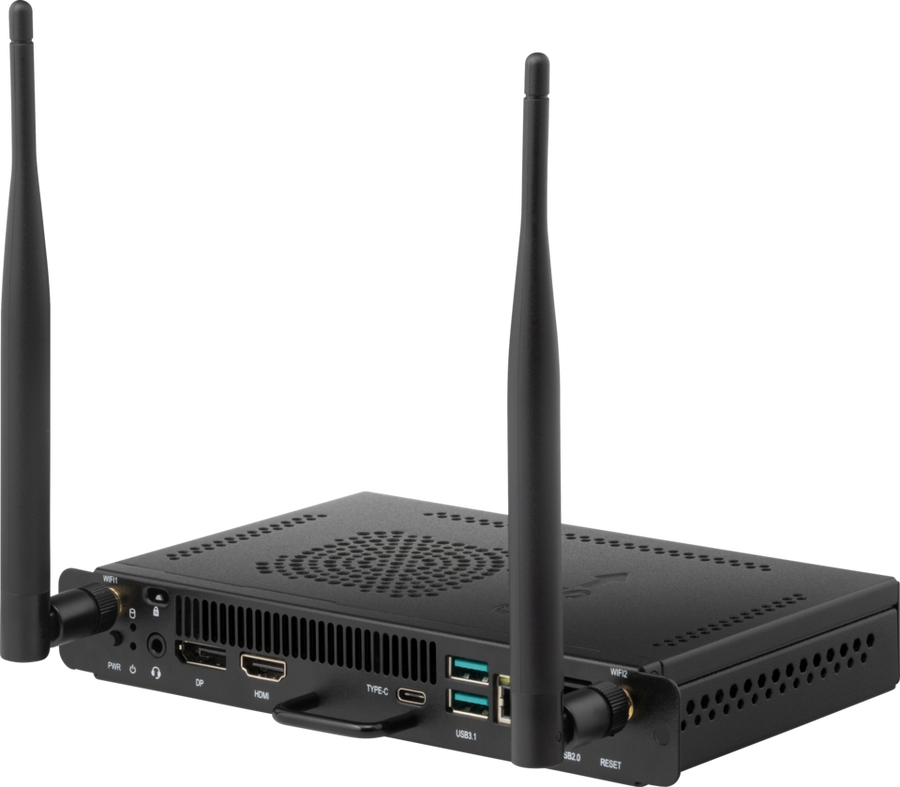

The ViewSonic VPCF5-S33-G1-2A is an 80-pin OPS slot-in PC for ViewBoard interactive displays. It uses a 12th Gen Intel Core i5 or later processor with 8 GB memory, a 256 GB PCIe SSD and Wi-Fi 6 with Bluetooth 5.2. Its 80-pin connector carries 4K HDMI and 5K DisplayPort signals at 60 Hz. Procure.ae supplies the VPCF5-S33-G1-2A in the UAE.

The VPCF5-S33-G1-2A uses a 12th Gen Intel Core i5 or later processor with Intel Iris Xe Graphics. It has 8 GB of DDR4 memory and a 256 GB PCIe SSD. Its graphics support up to 8K at 30 Hz over DisplayPort. Intel Wi-Fi 6 AX101 and Bluetooth 5.2 are built in, with an RJ45 LAN port, USB 3.1 and USB 2.0 Type-A ports, a USB-C data port and a combined mic-in and line-out jack. It draws up to 90 W from a 19 V DC supply at 4.74 A.

The VPCF5-S33-G1-2A is designed to sync with ViewBoard interactive displays and Presentation Displays, and it uses an 80-pin OPS connector. The manufacturer lists UEFI Shell as the operating system. The module measures 200 x 119 x 30 mm and weighs 0.7 kg net. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPCF5-S33-G1, this model uses a 12th Gen Intel Core i5 or later processor and an 80-pin OPS connector.
