ViewSonicInteractive Flat PanelsSKU IFP7563-1C

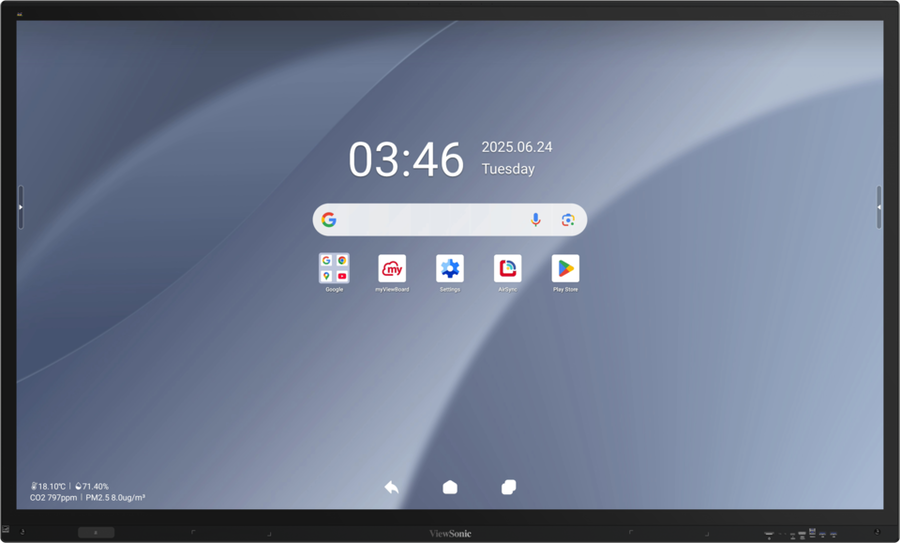

ViewSonic ViewBoard 75-inch 4K PCAP Interactive Flat Panel – IFP7563-1C
The ViewSonic IFP7563-1C is a 75-inch 4K UHD interactive flat panel with 50-point PCAP touch and palm rejection. It runs EDLA-certified Android 15 on an octa-core processor with 16 GB of RAM. Procure.ae supplies the ViewSonic IFP7563-1C across the UAE for classrooms and enterprise meeting rooms.
The ViewBoard IFP7563-1C is a 75-inch 4K UHD display with 50-point PCAP touch and palm rejection for both passive and active pens. Its ADS panel offers 450 nits typical brightness, 5,000:1 contrast and a 6.5 ms response time. An octa-core processor, 16 GB of LPDDR RAM and 128 GB of eMMC storage run Android 15. Environmental sensors measure temperature, humidity, eCO2, VOCs and PM2.5, and a PIR sensor is included. The panel is EDLA certified.
The IFP7563-1C fits enterprise and higher-education rooms that combine hybrid meetings, interactive lessons and brainstorming. Write Away enables pen-on-paper annotation. Its software includes myViewBoard for Android and Windows, TeamOne for real-time collaboration, AirSync for wireless casting and Manager for remote device management. For more memory, the IFP7563-2C has 32 GB of RAM in the same 75-inch format.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
PCAP
- 50-point PCAP touch
- Write Away
- Android 15 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
50-point PCAP touch
50-point touch on Windows and Android with palm rejection.
02
Write Away
Pen-on-paper annotation with passive and active pen support.
03
Android 15 platform
EDLA-certified Android 15 with an octa-core processor and 16 GB RAM.
04
Environmental sensors
Temperature, humidity, eCO2, VOC and PM2.5 sensors, plus a PIR sensor.
05
Software suite
myViewBoard, TeamOne, AirSync and Manager software included.
06
NFC sign-in
NFC tap-to-sign-in for shared settings.
07
Camera-ready top port
USB 3.2 Gen 1 port with PD 15 W to support camera mounting.
08
4K UHD panel
3840 x 2160 display with 1.07 billion colors and 178° viewing angles.
Specifications
30 specificationsGeneral
Key Features50-point PCAP touch, palm rejection, Write Away pen-on-paper, EDLA certified, Android 15, NFC sign-in, environmental sensors, AirSync and TeamOne software
ModelIFP7563-1C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size3.8 / 3.8 / 11.3 / 32.5 mm
Brightness450 nits
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio5,000:1
Panel TechnologyADS (TFT LCD with DLED backlight)
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points50-point multi-touch (Windows and Android)
Touch Resolution32767 x 32767
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 15
ProcessorOcta-core (4 x Cortex-A76 + 4 x Cortex-A55)
RAM16 GB LPDDR
Storage128 GB eMMC
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort × 1, Audio In × 1, Audio Out × 1, RS232 × 1, MicroSD × 1, OPS slot × 1, WiFi slot × 1, RJ45 × 2, USB-C × 3, USB 3.2 Gen 1 × 4, USB 2.0 × 2, USB 3.0 × 2
USB-C Ports3 (front and rear with DP 1.2, touch and PD 65 W or 100 W; top camera port with PD 15 W)
Power
Power Consumption101.1 W (on), below 0.5 W (off)
Physical
Dimensions1714.3 x 1032.4 x 79.1 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, anti-glare, anti-fingerprint and anti-bacterial
VESA Mount800 x 400 mm
Weight56.1 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 75-inch 4K PCAP Interactive Flat Panel – IFP7563-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic IFP7563-1C?
The IFP7563-1C is a 75-inch 4K UHD interactive flat panel with 50-point PCAP touch. It is EDLA certified, runs Android 15 and is designed for classrooms, hybrid meetings and enterprise collaboration.
Does the IFP7563-1C support pen writing with palm rejection?
Yes. The panel supports both passive and active pens and includes palm rejection. Its Write Away feature enables pen-on-paper annotation, and the 50-point PCAP touch layer supports multi-touch on Windows and Android.
Does the IFP7563-1C include a Wi-Fi module?
The panel includes a WiFi slot that accepts an optional Wi-Fi module, and it has two RJ45 Ethernet ports with 10/100/1000 Mbps speed. The manufacturer's specifications do not state a built-in Wi-Fi module.
What software is included with the IFP7563-1C?
The panel includes myViewBoard for Android and myViewBoard for Windows, which is embedded in the optional VPC. It also includes TeamOne for real-time collaboration, AirSync for wireless casting and Manager for remote device management.
How is the IFP7563-1C mounted?
The panel uses an 800 x 400 mm VESA wall-mount pattern and weighs 56.1 kg net. Use a bracket rated for that weight and confirm the wall structure before installation.
