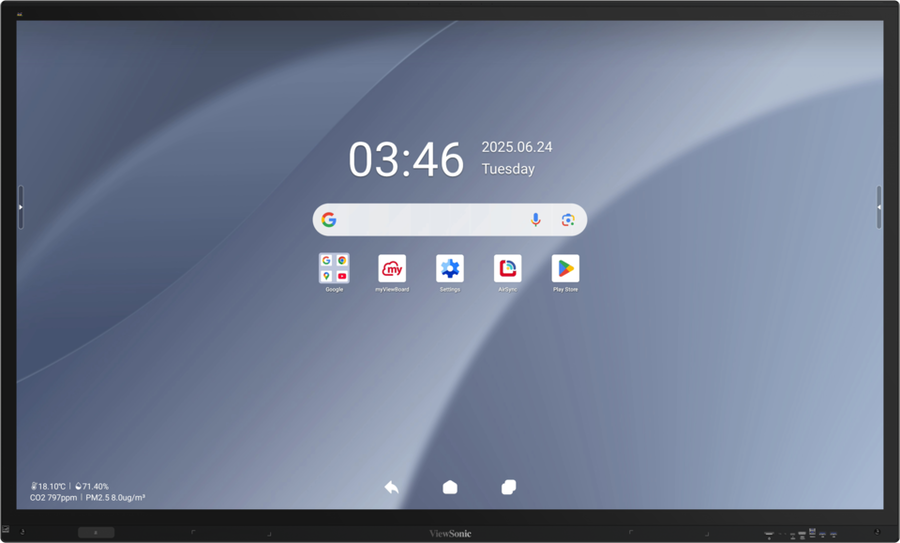

ViewSonic ViewBoard 75-inch 4K PCAP Interactive Flat Panel – IFP7563-1C
The ViewSonic IFP7563-1C is a 75-inch 4K UHD interactive flat panel with 50-point PCAP touch and palm rejection. It runs EDLA-certified Android 15 on an octa-core processor with 16 GB of RAM. Procure.ae supplies the ViewSonic IFP7563-1C across the UAE for classrooms and enterprise meeting rooms.
The ViewBoard IFP7563-1C is a 75-inch 4K UHD display with 50-point PCAP touch and palm rejection for both passive and active pens. Its ADS panel offers 450 nits typical brightness, 5,000:1 contrast and a 6.5 ms response time. An octa-core processor, 16 GB of LPDDR RAM and 128 GB of eMMC storage run Android 15. Environmental sensors measure temperature, humidity, eCO2, VOCs and PM2.5, and a PIR sensor is included. The panel is EDLA certified.
The IFP7563-1C fits enterprise and higher-education rooms that combine hybrid meetings, interactive lessons and brainstorming. Write Away enables pen-on-paper annotation. Its software includes myViewBoard for Android and Windows, TeamOne for real-time collaboration, AirSync for wireless casting and Manager for remote device management. For more memory, the IFP7563-2C has 32 GB of RAM in the same 75-inch format.
Key features
Specifications
| Key Features | 50-point PCAP touch, palm rejection, Write Away pen-on-paper, EDLA certified, Android 15, NFC sign-in, environmental sensors, AirSync and TeamOne software |
| Model | IFP7563-1C |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Bezel Size | 3.8 / 3.8 / 11.3 / 32.5 mm |
| Brightness | 450 nits |
| Color Depth | 1.07 billion colors (8-bit + FRC) |
| Contrast Ratio | 5,000:1 |
| Panel Technology | ADS (TFT LCD with DLED backlight) |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 6.5 ms |
| Screen Size | 75 inch |
| Touch Points | 50-point multi-touch (Windows and Android) |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | PCAP |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Android 15 |
| Processor | Octa-core (4 x Cortex-A76 + 4 x Cortex-A55) |
| RAM | 16 GB LPDDR |
| Storage | 128 GB eMMC |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort × 1, Audio In × 1, Audio Out × 1, RS232 × 1, MicroSD × 1, OPS slot × 1, WiFi slot × 1, RJ45 × 2, USB-C × 3, USB 3.2 Gen 1 × 4, USB 2.0 × 2, USB 3.0 × 2 |
| USB-C Ports | 3 (front and rear with DP 1.2, touch and PD 65 W or 100 W; top camera port with PD 15 W) |
| Power Consumption | 101.1 W (on), below 0.5 W (off) |
| Dimensions | 1714.3 x 1032.4 x 79.1 mm |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H pencil hardness, anti-glare, anti-fingerprint and anti-bacterial |
| VESA Mount | 800 x 400 mm |
| Weight | 56.1 kg (net) |
