ViewSonicInteractive Flat PanelsSKU IFP6552-1CF

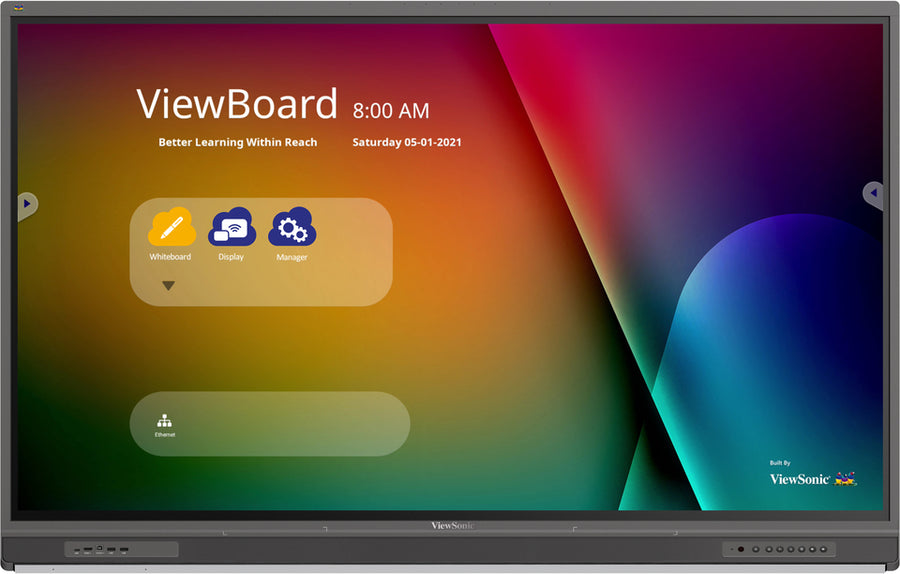

ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6552-1CF
The ViewSonic ViewBoard IFP6552-1CF is a 65-inch 4K UHD interactive whiteboard for classrooms, with an IPS panel, 33-point touch on Windows and an 8-microphone array. It connects through a single USB-C cable with 65 W power delivery. Procure.ae supplies the IFP6552-1CF across the UAE.
The panel delivers 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio, with 1.07 billion colours (10-bit), 400 nits typical brightness and a 1,200:1 typical contrast ratio, rising to 3,000:1 maximum with DCR enabled. The response time is 8 ms. Ultra Fine Touch technology supports 33 touch points on Windows and 20 on Android, with palm awareness and dual-pen writing. A quad-core ARM Cortex-A73 processor at 1.8 GHz, 8 GB DDR4 RAM and 64 GB storage run the built-in software.

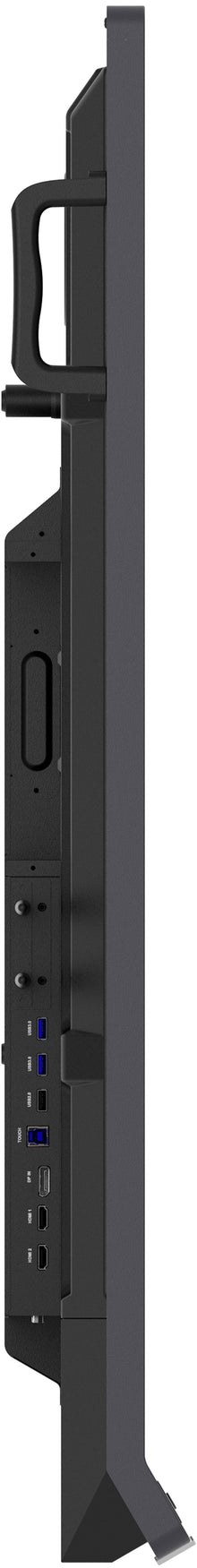

The IFP6552-1CF suits classrooms and lecture rooms where teachers switch between a visualizer, a PC and a personal device. The angled front design gives access to shortcut keys and I/O ports. Ports include RGB/VGA, audio in, RS232, RJ45 in and out, USB 2.0 and 3.0 Type A, three Type B touch ports, USB-C with 65 W power delivery and DisplayPort 1.2, plus OPS and WiFi module slots. The panel mounts on a 400 x 600 mm VESA pattern.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Ultra Fine Touch
- 4K UHD IPS panel
- Ultra Fine Touch
- Dual-pen writing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 resolution, 400 nits typical brightness and 10-bit colour.
02
Ultra Fine Touch
33-point touch on Windows and 20-point touch on Android, with palm awareness.
03
Dual-pen writing
Dual-pen capability for writing and annotation at the board.
04
8-microphone array
Built-in array for selecting the camera and microphone source during lessons.
05
Speakers
2 x 15 W front-facing speakers and a 15 W subwoofer.
06
Single-cable connection
USB-C port with DisplayPort 1.2, Ethernet 100M and 65 W power delivery.
07
Software
myViewBoard WhiteBoard for Android and Windows, with vCast and myViewBoard Display wireless presentation.
08
Management
myViewBoard Manager for browser-based remote management, plus One Click to Cloud Drive.
Specifications
34 specificationsGeneral
Key FeaturesUltra Fine Touch, 33-point touch on Windows, dual-pen writing, 8-mic array, single-cable USB-C with 65 W power, myViewBoard Manager, vCast wireless presentation
ModelIFP6552-1CF
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits (typical)
Color Depth1.07 billion colours (10-bit)
Contrast Ratio1,200:1 (typical); 3,000:1 (maximum, DCR enabled)
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points33-point touch (Windows), 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
ProcessorQuad-core ARM Cortex-A73, 1.8 GHz
RAM8 GB DDR4
Storage64 GB
Audio
Microphone8-microphone array
Speaker Output2 x 15 W front speakers, 15 W subwoofer
Connectivity
Input Voltage100–240 V AC ±10%
OPS Slot1 module slot
PortsRGB/VGA x1, Audio in x1, RS232 x1, RJ45 x2 (1 in, 1 out), Audio out x1 (earphone)
USB PortsUSB 2.0 Type A x3 (front x2, side x1), USB 3.0 Type A x2 (side), USB Type B x3 (touch)
USB-C Ports1 (USB 2.0, DisplayPort 1.2, Ethernet 100M, 65 W power delivery)
Wi-Fi1 module slot (optional WiFi module)
Power
Power Consumption119.2 W (typical), less than 0.5 W (off)
Physical
Dimensions1488 x 948 x 120 mm (W x H x D)
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection9H anti-glare
VESA Mount400 x 600 mm
Weight42.35 kg (net)
Downloads
Manufacturer documents for the ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6552-1CF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the ViewSonic IFP6552-1CF?
The IFP6552-1CF has a 65-inch panel with 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio. It has 400 nits typical brightness, a 1,200:1 typical contrast ratio and 3,000:1 maximum with DCR enabled, and an 8 ms response time.
Does the IFP6552-1CF connect to a laptop with one cable?
Yes. The USB-C port carries DisplayPort 1.2 video, Ethernet 100M data and 65 W power delivery, so one cable can power and connect a compatible laptop. The panel also has an RGB/VGA input.
Is the IFP6552-1CF suitable for a classroom?
Yes. It is designed for teaching, with myViewBoard annotation software, dual-pen writing, 33-point touch on Windows and wireless presentation through vCast and myViewBoard Display. The 8-microphone array and visualizer source selection suit hybrid lessons.
How is the IFP6552-1CF mounted?
The IFP6552-1CF mounts to a wall on a 400 x 600 mm VESA pattern. The physical size is 1488 x 948 x 120 mm and the net weight is 42.35 kg, so confirm the wall structure and bracket rating before installation. Procure.ae provides installation across the UAE and MEA.
Does the IFP6552-1CF support optional modules?
Yes. It has an OPS module slot for an optional PC module and a WiFi module slot for an optional WiFi module. The manufacturer's specifications do not state the part numbers of compatible modules for this model.
