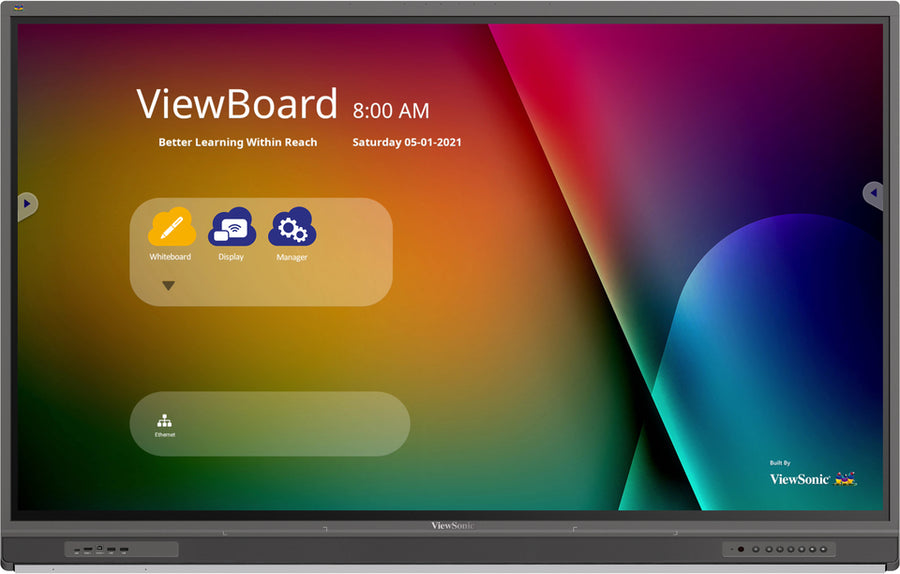

ViewSonic ViewBoard 65-inch 4K Interactive Flat Panel – IFP6552-1CF
The ViewSonic ViewBoard IFP6552-1CF is a 65-inch 4K UHD interactive whiteboard for classrooms, with an IPS panel, 33-point touch on Windows and an 8-microphone array. It connects through a single USB-C cable with 65 W power delivery. Procure.ae supplies the IFP6552-1CF across the UAE.
The panel delivers 3840 x 2160 (4K UHD) resolution at a 16:9 aspect ratio, with 1.07 billion colours (10-bit), 400 nits typical brightness and a 1,200:1 typical contrast ratio, rising to 3,000:1 maximum with DCR enabled. The response time is 8 ms. Ultra Fine Touch technology supports 33 touch points on Windows and 20 on Android, with palm awareness and dual-pen writing. A quad-core ARM Cortex-A73 processor at 1.8 GHz, 8 GB DDR4 RAM and 64 GB storage run the built-in software.
The IFP6552-1CF suits classrooms and lecture rooms where teachers switch between a visualizer, a PC and a personal device. The angled front design gives access to shortcut keys and I/O ports. Ports include RGB/VGA, audio in, RS232, RJ45 in and out, USB 2.0 and 3.0 Type A, three Type B touch ports, USB-C with 65 W power delivery and DisplayPort 1.2, plus OPS and WiFi module slots. The panel mounts on a 400 x 600 mm VESA pattern.
Key features
Specifications
| Key Features | Ultra Fine Touch, 33-point touch on Windows, dual-pen writing, 8-mic array, single-cable USB-C with 65 W power, myViewBoard Manager, vCast wireless presentation |
| Model | IFP6552-1CF |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits (typical) |
| Color Depth | 1.07 billion colours (10-bit) |
| Contrast Ratio | 1,200:1 (typical); 3,000:1 (maximum, DCR enabled) |
| Orientation | Landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 65 inch |
| Touch Points | 33-point touch (Windows), 20-point touch (Android) |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Ultra Fine Touch |
| Viewing Angle | 178° horizontal / 178° vertical (typical) |
| Processor | Quad-core ARM Cortex-A73, 1.8 GHz |
| RAM | 8 GB DDR4 |
| Storage | 64 GB |
| Microphone | 8-microphone array |
| Speaker Output | 2 x 15 W front speakers, 15 W subwoofer |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | 1 module slot |
| Ports | RGB/VGA x1, Audio in x1, RS232 x1, RJ45 x2 (1 in, 1 out), Audio out x1 (earphone) |
| USB Ports | USB 2.0 Type A x3 (front x2, side x1), USB 3.0 Type A x2 (side), USB Type B x3 (touch) |
| USB-C Ports | 1 (USB 2.0, DisplayPort 1.2, Ethernet 100M, 65 W power delivery) |
| Wi-Fi | 1 module slot (optional WiFi module) |
| Power Consumption | 119.2 W (typical), less than 0.5 W (off) |
| Dimensions | 1488 x 948 x 120 mm (W x H x D) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H anti-glare |
| VESA Mount | 400 x 600 mm |
| Weight | 42.35 kg (net) |
