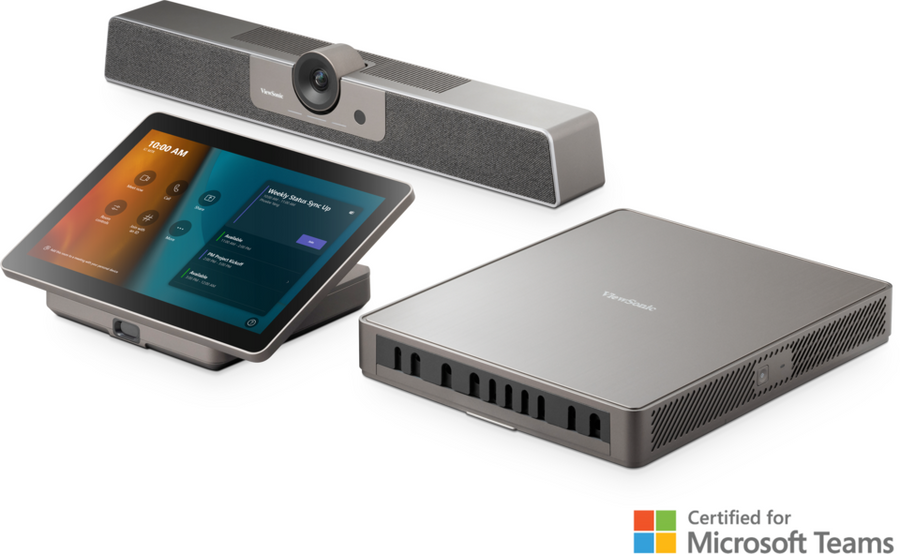

ViewSonic TeamJoin Teams Rooms Kit with Video Bar – TRS10-UB
The ViewSonic TeamJoin TRS10-UB is a Microsoft Teams Rooms kit with a computing engine, a 10.1-inch touch console and a 4K video bar. The video bar has a 12 MP sensor with auto framing, voice tracking and a six-element microphone array for meetings. It is a complete bundle for Microsoft Teams Rooms spaces. Procure.ae supplies the TRS10-UB in the UAE.
The video bar captures 4K H.264 video at up to 30 fps, with 1080p and 720p formats also supported. It uses an IMX577 1/2.3-inch CMOS sensor with a 117.8-degree diagonal field of view and 5X electronic PTZ zoom. Auto framing and voice tracking keep speakers in view, and a six-element microphone array picks up sound up to 8 m away. Speaker output is 8 W and 3 W, with a maximum of 80 dBA at 1 m. The video bar is powered by PoE at 802.3at, 25.5 W maximum, or by its DC input.
The TRS10-UB is a complete Microsoft Teams Rooms bundle that combines the computing engine (MPC310-W31-TU), touch console (MRC1010-TN) and video bar (UMB202). It is intended for meeting spaces of any size, like the TRS10, and adds camera and audio in one package. The bundle includes wall-mount components, screws, a 1.8 m USB Type-C cable and a 5 m USB Type-C cable, and the video bar comes with a lens cover.
Screen Size
10.1 inch (touch console)
Resolution
3840 x 2160 (4K UHD) video capture;...
Touch Technology
PCAP
Type
Microsoft Teams Rooms Kit with Vide...
- Teams Rooms computing engine
- 4K video bar
- Auto framing and voice tracking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Teams Rooms computing engine
Intel Core i3-1220P, 8 GB RAM and 128 GB storage on Windows 11 IoT Enterprise.
02
4K video bar
A 12 MP IMX577 sensor with 4K H.264 capture and a 117.8-degree diagonal field of view.
03
Auto framing and voice tracking
Keeps participants in view and follows the speaker.
04
Microphone array
A six-element array with an 8 m pick-up range.
05
5X EPTZ zoom
Electronic pan, tilt and zoom with 5X digital zoom, controlled by remote.
06
Speaker output
8 W and 3 W drivers with a maximum of 80 dBA at 1 m.
07
PoE powering
IEEE 802.3at Power over Ethernet at 25.5 W maximum for the video bar.
08
10-point touch console
A 10.1-inch 1920 x 1200 display with PIR motion sensor.
Specifications
26 specificationsGeneral
Key Features4K video capture, 117.8° diagonal field of view, auto framing, voice tracking, six-element microphone array, 5X EPTZ, PoE 802.3at, Microsoft Teams Rooms
ModelTRS10-UB
TypeMicrosoft Teams Rooms Kit with Video Bar
What's in the BoxComputing engine, touch console, 4K video bar, 1.5 m HDMI cable, 5 m USB Type-C cable, 1.8 m USB Type-C cable, wall-mount components, screws, lens cover, quick start guide
Display
CameraIMX577 1/2.3-inch CMOS sensor, 12 MP
Resolution3840 x 2160 (4K UHD) video capture; touch console 1920 x 1200
Screen Size10.1 inch (touch console)
Touch Points10-point multi-touch
Touch Response Time< 25 ms
Touch TechnologyPCAP
Viewing Angle117.8° diagonal / 109° horizontal / 74.4° vertical
Zoom5X digital zoom (EPTZ)
Performance
Operating SystemWindows 11 IoT Enterprise (x64) on computing engine
ProcessorIntel Core i3-1220P (1.5 GHz, turbo 4.4 GHz)
RAM8 GB DDR4 SODIMM
Storage128 GB SATA
Audio
Max SPL80 dBA at 1 m (1 kHz)
MicrophoneSix-element array
Pickup Range8 m
Speaker Output8 W + 3 W (mid-bass and treble drivers)
Connectivity
BluetoothBluetooth 5.3 (computing engine)
PoEIEEE 802.3at, 25.5 W maximum (video bar)
PortsEngine: USB 3.0 × 4, USB-C × 1, RJ45 × 1, HDMI out × 1. Console: HDMI in × 1, USB 2.0 × 1, USB-C × 1, audio out × 1. Video bar: USB-C × 1, audio out × 1, DC 2.0 × 1, RJ45 × 1
Wi-FiNone
Physical
DimensionsComputing engine 230 x 275.5 x 43 mm; touch console 245 x 160 x 98 mm (L x H x D)
VESA MountVESA bracket and wall-mount components included
Downloads
Manufacturer documents for the ViewSonic TeamJoin Teams Rooms Kit with Video Bar – TRS10-UB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TRS10-UB include a camera and speaker?
Yes. The bundle includes a 4K video bar with a 12 MP camera sensor, a six-element microphone array and 8 W + 3 W speaker output, in addition to the computing engine and touch console.
Does the video bar need PoE?
No, the video bar can take power from its DC 2.0 input or from PoE. The RJ45 port is for power supply only, accepting IEEE 802.3at PoE at 25.5 W maximum, so PoE is one option rather than a requirement.
What is the camera field of view and zoom?
The camera has a 117.8-degree diagonal, 109-degree horizontal and 74.4-degree vertical field of view, with 5X electronic PTZ zoom. The 4K H.264 stream runs at up to 30 fps, and the camera is controlled with the supplied remote controller.
Can the video bar be used with a laptop or PC?
Yes. The video bar supports UVC 1.1 video and UAC 2.0 audio over USB 3.0, which is backward compatible with USB 2.0. The manufacturer lists Windows 7 to 11, macOS 10.10 or later, Google ChromeOS 29.0.1547.70 or later and Android as supported operating systems.
Can the TRS10-UB be wall mounted?
The bundle includes wall-mount components and screws, and the computing engine includes a VESA mounting bracket. The manufacturer's specifications do not state a VESA pattern for the video bar or touch console.
