ViewSonicMeeting Room SolutionsSKU MPC310-W31-TU

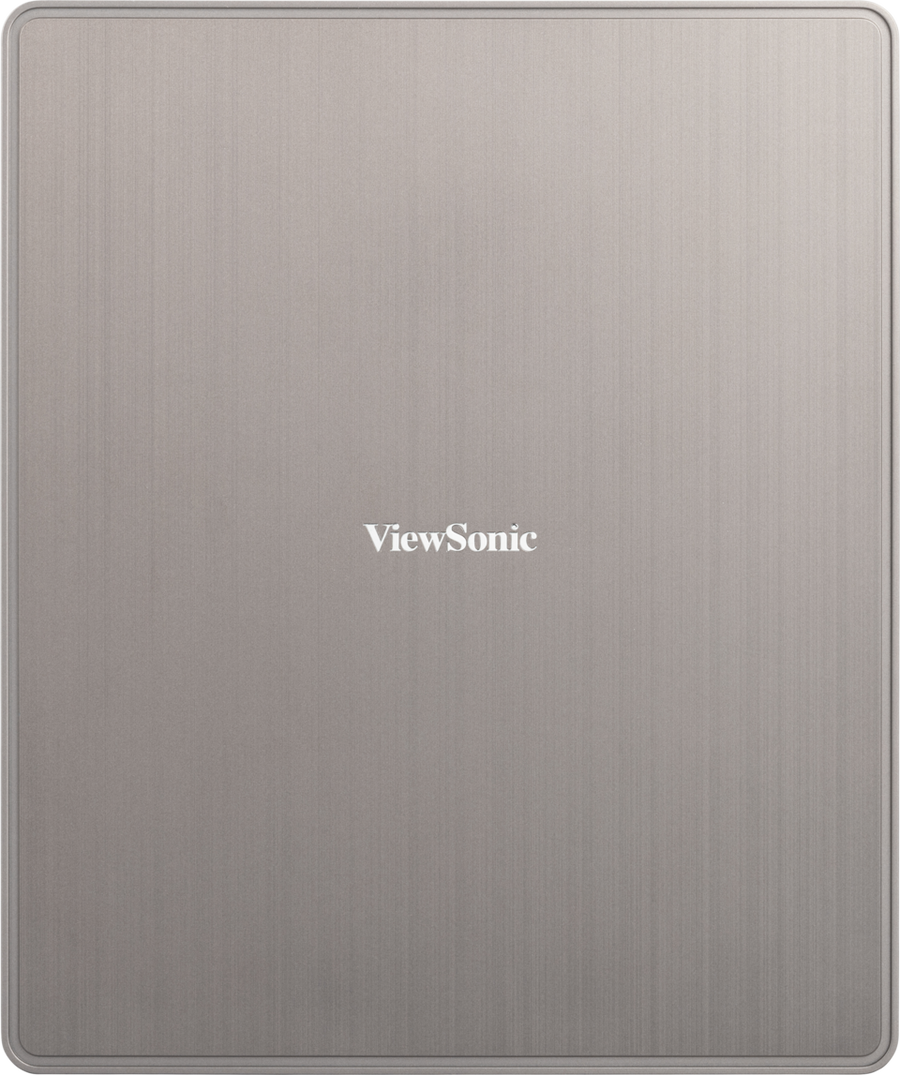

ViewSonic TeamJoin Computing Engine for Microsoft Teams Rooms – MPC310-W31-TU
The ViewSonic MPC310-W31-TU TeamJoin Computing Engine is a Windows 11 IoT Enterprise PC for Microsoft Teams Rooms meeting spaces. It runs an Intel Core i3-1220P with 8 GB RAM and 128 GB storage, and drives a display at 4K 60 Hz over HDMI. Procure.ae supplies the MPC310-W31-TU in the UAE.
The MPC310-W31-TU runs Windows 11 IoT Enterprise with Microsoft Teams Rooms software pre-installed. Its 12th Gen Intel Core i3-1220P has a 1.5 GHz base clock, turbo to 4.4 GHz and Intel UHD graphics. It has 8 GB of DDR4 SODIMM memory and 128 GB of SATA storage. Video output is one HDMI port at 4K 60 Hz with CEC control for screen power on and off. Connectivity includes four USB 3.0 Type-A ports, a USB 3.0 Type-C port and a gigabit Ethernet port.
The engine is one half of the TeamJoin room solutions and pairs with a touch console and display in Microsoft Teams Rooms spaces of different sizes. It has no Wi-Fi, so it connects over the wired Ethernet port. A cable management system and a VESA mounting bracket help IT staff install and maintain it, and the Kensington slot supports physical security. The TRS10 and TRS10-UB bundles use this engine with a touch console.
Type
Microsoft Teams Rooms Computing Engine
Weight
3.70 kg
- Microsoft Teams Rooms software
- 12th Gen Intel Core
- Memory and storage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Microsoft Teams Rooms software
Pre-installed to support calls, content sharing and meeting connections.
02
12th Gen Intel Core
An i3-1220P processor with a 1.5 GHz base clock, turbo to 4.4 GHz and Intel UHD graphics.
03
Memory and storage
8 GB DDR4 SODIMM RAM and 128 GB SATA storage.
04
4K display output
One HDMI out at 4K 60 Hz with CEC screen power control.
05
USB and Ethernet
Four USB 3.0 Type-A ports, a USB 3.0 Type-C port and a 10/100/1000 Mbps RJ45 port.
06
Bluetooth 5.3
Built-in Bluetooth with no Wi-Fi, so network access is wired.
07
Cable management
An integrated system simplifies setup and maintenance for IT staff.
08
Power and mounting
100–240 V AC input, 111.9 W maximum consumption and a VESA mounting bracket.
Specifications
21 specificationsGeneral
Key FeaturesMicrosoft Teams Rooms software pre-installed, 12th Gen Intel Core, Windows 11 IoT Enterprise, 4K HDMI out with CEC, cable management system
ModelMPC310-W31-TU
TypeMicrosoft Teams Rooms Computing Engine
What's in the BoxComputing engine, VESA mounting bracket, cable management system
Performance
GraphicsIntel UHD Graphics
Operating SystemWindows 11 IoT Enterprise (x64)
ProcessorIntel Core i3-1220P (1.5 GHz, turbo 4.4 GHz)
RAM8 GB DDR4 SODIMM
Storage128 GB SATA
Connectivity
BluetoothBluetooth 5.3
EthernetRJ45 × 1, 10/100/1000 Mbps
HDMI Outputs1 × 4K@60 Hz (CEC screen power control)
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 3.0 Type-A × 4, USB 3.0 Type-C × 1 (DP out 4K@30 Hz), RJ45 × 1, HDMI out × 1
Wi-FiNone
Power
Power Consumption111.9 W (maximum)
Standby Power1.5 W
Physical
Dimensions230 x 275.5 x 43 mm
VESA MountBracket included
Weight3.70 kg
Compliance
Security FeaturesKensington lock slot, OS recovery button
Downloads
Manufacturer documents for the ViewSonic TeamJoin Computing Engine for Microsoft Teams Rooms – MPC310-W31-TU — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the MPC310-W31-TU a Microsoft Teams Rooms device?
Yes. The MPC310-W31-TU is a TeamJoin Computing Engine with Microsoft Teams Rooms software pre-installed on Windows 11 IoT Enterprise. It is designed to run the meeting room system and connect to a display, camera and touch console in the same room.
Does the computing engine have Wi-Fi?
No. The manufacturer lists no Wi-Fi, so the MPC310-W31-TU connects to the network through its RJ45 Ethernet port at 10/100/1000 Mbps. It includes Bluetooth 5.3, and the manufacturer lists the antenna as built-in.
Can it drive a 4K display?
Yes. The HDMI out supports 4K at 60 Hz with CEC control for screen power on and off, and the USB 3.0 Type-C port provides DisplayPort output at 4K 30 Hz.
How much memory and storage does it include?
It includes 8 GB of DDR4 SODIMM memory, built from two 4 GB modules, and 128 GB of SATA storage. The manufacturer lists an Intel Core i3-1220P processor with Intel UHD graphics.
Can the MPC310-W31-TU be mounted behind a display?
Yes, with the supplied VESA mounting bracket. The unit measures 230 x 275.5 x 43 mm and weighs 3.70 kg, and the manufacturer's specifications do not list other mounting kits.
