ViewSonicMeeting Room SolutionsSKU UMB202

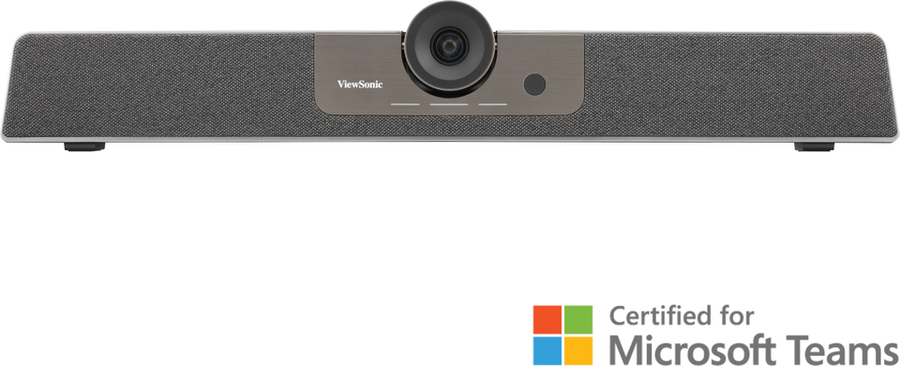

ViewSonic TeamJoin 4K Video Bar System – UMB202
The ViewSonic UMB202 TeamJoin 4K Video Bar System is an all-in-one video conferencing bar that combines a 4K camera, speaker and microphone array for meeting rooms of varying sizes. It offers 5x digital zoom, auto-framing and a six-element microphone array with an 8-meter pickup range. Procure.ae supplies the UMB202 across the UAE.
The UMB202 uses a Sony IMX577 1/2.3-inch 12 MP sensor and encodes video up to 3840 x 2160 at 30 fps. Its electronic PTZ provides 5x digital zoom, a 109-degree horizontal field of view and auto-framing with voice tracking. A six-element beamforming microphone array picks up speech up to 8 meters away, and the built-in speakers deliver up to 8 W plus 3 W. Digital noise reduction, white balance control and a microphone mute button are included.
The UMB202 is part of ViewSonic's TeamJoin solutions for Microsoft Teams Rooms, so it suits meeting rooms of different sizes. It connects to Windows, macOS, Chrome OS and Android hosts through USB Type-C, and its RJ45 port can power the bar over PoE (IEEE 802.3at, 25.5 W maximum). A wall mount kit with screws is included for mounting.
Resolution
3840 x 2160 (4K UHD)
Type
Video Conferencing System
- 4K Video Capture
- Auto Framing
- 5x Digital Zoom
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K Video Capture
The 12 MP Sony IMX577 sensor outputs up to 3840 x 2160 at 30 fps.
02
Auto Framing
Automatically frames participants and tracks the active speaker.
03
5x Digital Zoom
Electronic PTZ with a 109-degree horizontal field of view.
04
Six-Element Microphone Array
Beamforming pickup of up to 8 meters.
05
Integrated Speaker
Mid-bass and treble drivers rated 8 W plus 3 W maximum output.
06
PoE Power Input
The RJ45 port supports IEEE 802.3at at 25.5 W maximum.
07
USB Connectivity
USB 3.0 with USB 2.0 compatibility, UVC 1.1 video and UAC 2.0 audio.
08
Remote PTZ Control
PTZ camera control is available through the supplied remote controller.
Specifications
14 specificationsGeneral
Key FeaturesAuto framing, voice tracking, 5x digital zoom, remote PTZ control, noise reduction, white balance, mic mute button
ModelUMB202
TypeVideo Conferencing System
What's in the BoxUSB Type-C cable (1.8 m), wall mount components, screws, lens cover, quick start guide
Display
CameraSony IMX577 12 MP sensor, 109° HFOV, 5x digital zoom
Resolution3840 x 2160 (4K UHD)
Zoom5x digital zoom
Performance
Operating SystemWindows 7/8.1/10/11, macOS 10.10+, Chrome OS, Android
Audio
Microphone6-element beamforming array
Pickup Range8 m
Speaker Output8 W + 3 W (maximum)
Connectivity
ConnectivityUSB 3.0 (USB 2.0 compatible), UVC 1.1, UAC 2.0
PoEIEEE 802.3at, 25.5 W maximum
PortsUSB-C × 1, Audio Out × 1, DC 2.0 power × 1, RJ45 × 1 (power only)
Downloads
Manufacturer documents for the ViewSonic TeamJoin 4K Video Bar System – UMB202 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the UMB202 support Microsoft Teams Rooms?
Yes. The UMB202 is part of ViewSonic's TeamJoin solutions for Microsoft Teams Rooms, which are designed for meeting rooms of diverse sizes. It combines a 4K camera, speaker and microphone array in one bar.
Which operating systems does the UMB202 support?
The UMB202 supports Windows 7, 8.1, 10 and 11 or higher, macOS 10.10 or higher, Chrome OS version 29.0.1547.70 or higher, and Android. The list includes Windows, macOS, Chrome OS and Android, so the bar can connect to a range of meeting room hosts.
What room size does the UMB202 cover?
The manufacturer's specifications state an 8-meter microphone pickup range and a 109-degree horizontal field of view with 5x digital zoom. These suit meeting rooms of different sizes. Procure.ae can confirm the right setup for a specific room.
Can the UMB202 be powered over Ethernet?
Yes. The RJ45 port is used for power only and supports IEEE 802.3at at 25.5 W maximum. A DC 2.0 power input is also provided. Procure.ae can confirm the power option that suits your installation.
How is the UMB202 mounted?
The package includes wall mount components and screws. The manufacturer's specifications do not state mounting dimensions for the bar, so confirm the bracket fit with the installer before drilling. The installer can plan the bracket and cable route in advance, and Procure.ae can advise on fixing for your room.
