ViewSonic CDE Series 86-inch 4K Digital Signage Display – CDE8614-2C
The ViewSonic CDE8614-2C is an 86-inch 4K UHD commercial display built for 24/7 operation in offices, retail spaces and transit hubs. It offers 500 nits of brightness, Android 14 on a quad-core processor, and landscape or portrait mounting. Procure.ae supplies the CDE8614-2C across the UAE, with quotes, delivery and installation.

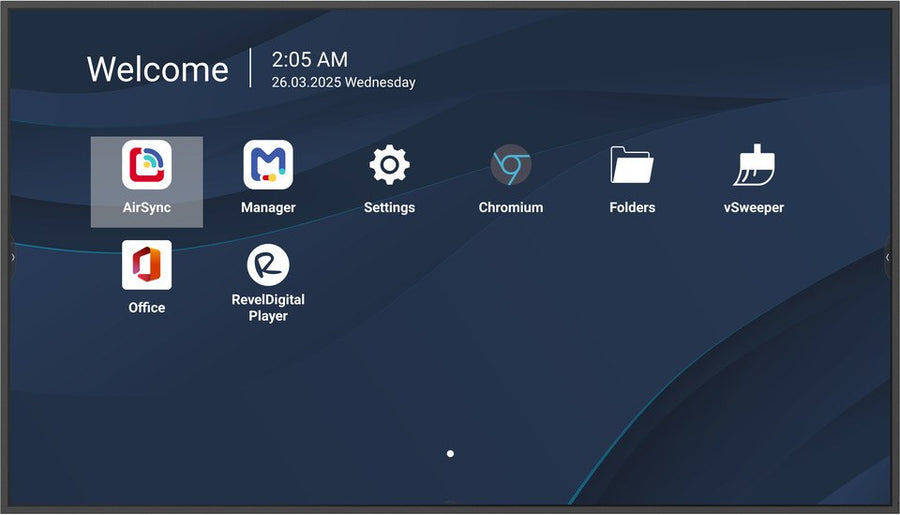

The CDE8614-2C uses a 3840 x 2160 (4K UHD) TFT LCD panel with DLED backlight, 500 nits typical brightness and an 8 ms response time. Its 1,200:1 typical contrast ratio rises to 2,000:1 with dynamic contrast ratio (DCR) enabled, and viewing angles are 178 degrees horizontally and vertically. A quad-core ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage runs Android 14 for fast warm boot and smooth multitasking. Continuous USB media playback with auto signal failover keeps content running if the primary source is lost.
The display suits corporate lobbies, retail floors, transit hubs and meeting spaces. ViewSonic Manager provides remote device management, and AirSync supports wireless presentation. It integrates with leading Pro AV control systems through its RS-232 port and RJ45 Ethernet port. The USB-C port carries DisplayPort 1.2 and 15 W power delivery, and a Wi-Fi slot is fitted. Unlike the larger CDE31 Series, this model has no OPS slot and 4 GB RAM instead of 8 GB.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Native 4K UHD panel
- Android 14 platform
- Landscape and portrait
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Native 4K UHD panel
3840 x 2160 resolution at 500 nits typical brightness, with an 8 ms response time.
02
Android 14 platform
Quad-core ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage.
03
Landscape and portrait
The display operates in both orientations for signage and wayfinding.
04
USB media playback
Continuous playback from USB with auto signal failover if the primary source is lost.
05
Wireless presentation
AirSync wireless presentation is included for meeting-room use.
06
Remote management
ViewSonic Manager supports streamlined deployment and remote device control.
07
Pro AV integration
RS-232 and RJ45 ports connect to leading Pro AV control systems.
08
Energy-efficient operation
Rated at 120.95 W consumption with an ENERGY STAR certification.
Specifications
28 specificationsGeneral
Key FeaturesAndroid 14, AirSync wireless presentation, ViewSonic Manager remote management, USB media playback with auto signal failover, landscape and portrait, anti-glare 3H surface, 24/7 operation
ModelCDE8614-2C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size15.9 mm
Brightness500 nits
Contrast Ratio1,200:1 (typical; 2,000:1 with DCR)
Display TypeCommercial LCD display
OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core ARM Cortex-A73
RAM4 GB
Storage32 GB
Connectivity
Input Voltage100–240 V AC ±10%
PortsRS-232 × 1, Wi-Fi slot × 1, RJ45 × 1, USB 2.0 × 2, USB-C × 1 (DisplayPort 1.2, 15 W PD)
Power
Power Consumption120.95 W
Physical
Dimensions1930.8 x 1101.7 x 68 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight42 kg
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the ViewSonic CDE Series 86-inch 4K Digital Signage Display – CDE8614-2C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewSonic CDE8614-2C built for 24/7 operation?
Yes. ViewSonic describes the CDE8614-2C as a commercial-grade display built for 24/7 operation in offices, retail spaces and transit hubs. It has an operating temperature range of 0 to 40 °C and a 20% to 80% RH humidity range, non-condensing.
Can the CDE8614-2C show portrait content?

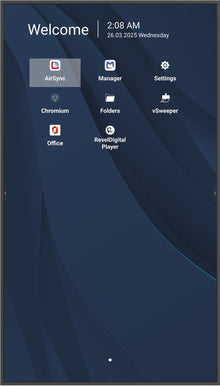

Yes. The display supports both landscape and portrait orientation. This suits vertical menus, wayfinding screens and portrait digital signage. Confirm the mounting orientation with your installer before fitting, since the panel is rated for either orientation.
Which operating system does the CDE8614-2C use?
It runs Android 14 on a quad-core ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage. ViewSonic Launcher is included, and ViewSonic Manager handles remote device management for multi-screen deployments.
What VESA mount does the CDE8614-2C need?
It uses a 600 x 400 mm VESA mounting pattern. The panel measures 1930.8 x 1101.7 x 68 mm and weighs 42 kg net, so the wall or floor mount should be rated for that load. Procure.ae can advise on installation options.
Does the CDE8614-2C connect to Pro AV control systems?
Yes. It has an RS-232 port and an RJ45 Ethernet port, and it integrates with leading Pro AV control systems. AirSync provides wireless presentation, and USB-C carries DisplayPort 1.2 video with 15 W power delivery.
