ViewSonicDigital SignageSKU CDE5531-1C

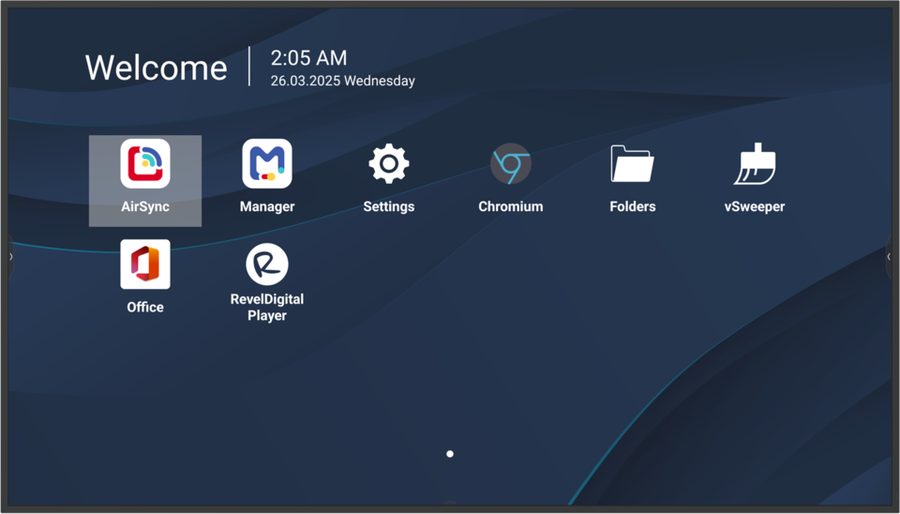

ViewSonic CDE Series 55-inch 4K Digital Signage Display – CDE5531-1C
The ViewSonic CDE5531-1C is a 55-inch 4K UHD commercial display for corporate, retail, education and healthcare environments. It offers 500 nits brightness, 8 GB RAM and Android 14, with landscape and portrait orientation. Procure.ae supplies the ViewSonic CDE5531-1C in the UAE.
The CDE5531-1C has a 3840 x 2160 native panel with a 6.5 ms response time and 1,200:1 typical contrast, rising to 5,000:1 with DCR enabled. Its anti-glare screen has 3H hardness and 25% haze. A quad-core ARM Cortex-A73 processor with 8 GB RAM and 32 GB storage runs Android 14, and the manufacturer states that the platform is upgradeable to Android 16 for ongoing security updates. The manufacturer describes reliable 24/7 operation.
The display suits meeting spaces and digital signage networks. It includes dual 16 W built-in speakers, 3.5 mm audio in and out, two RJ45 ports for LAN in and LAN out, and AirSync wireless presentation. ViewSonic Manager supports centralised remote control. The 400 x 400 mm VESA pattern supports wall mounting, and the set measures 1233 x 703.5 x 62 mm, with a net weight of 12.95 kg.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500-nit brightness

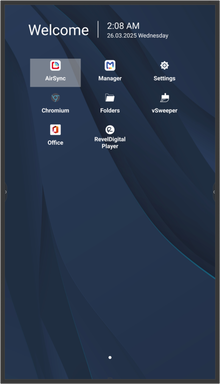

- Landscape and portrait
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 native resolution on a 55-inch 16:9 LCD panel with DLED backlight.
02
500-nit brightness
500 nits brightness with 1,200:1 typical contrast and 5,000:1 with DCR enabled.
03
Landscape and portrait
Supports both landscape and portrait orientation.
04
Android 14 platform
Quad-core ARM Cortex-A73 processor with 8 GB RAM and 32 GB storage.
05
Built-in speakers
Dual 16 W built-in speakers with 3.5 mm audio in and out.
06
Remote management
ViewSonic Manager remote control, static IP configuration and a web-based UI.
07
Anti-glare surface
Anti-glare coating with 3H hardness and 25% haze.
08
AirSync presentation
Wireless presentation through AirSync, with a WiFi slot and RJ45 LAN ports.
Specifications
33 specificationsGeneral
Key FeaturesAirSync wireless presentation, ViewSonic Manager remote control, Anti-glare 3H surface, Dual 16 W speakers, Static IP and web-based UI, Android 14 platform
ModelCDE5531-1C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size9.9 mm (all sides)
Brightness500 nits
Contrast Ratio1,200:1 (typical); 5,000:1 (DCR)
OrientationLandscape and portrait
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core ARM Cortex-A73
RAM8 GB
Storage32 GB
Audio
Audio In3.5 mm
Audio Out3.5 mm
Speaker Output2 × 16 W built-in
Connectivity
EthernetRJ45 × 2 (LAN in and LAN out)
Input Voltage100–240 V AC ±10%
PortsRS-232 × 1, SPDIF × 1, RJ45 × 2, USB 2.0 × 1, USB 3.2 Gen 1 × 1, USB-C × 1
Serial PortRS-232 × 1
USB-C PortsUSB-C × 1 (PD 65 W, DP 1.2, USB 2.0)
Wi-FiWiFi slot × 1
Power
Power Consumption57.75 W
Physical
Dimensions1233 x 703.5 x 62 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight12.95 kg
Downloads
Manufacturer documents for the ViewSonic CDE Series 55-inch 4K Digital Signage Display – CDE5531-1C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the ViewSonic CDE5531-1C built for 24/7 digital signage?
Yes. The manufacturer describes the CDE5531-1C as a commercial-grade display for reliable 24/7 operation across corporate, retail, education and healthcare environments. It offers 500 nits brightness, landscape and portrait orientation, and Android 14 for content playback.
What wall mount does the CDE5531-1C use?
It uses a 400 x 400 mm VESA wall mount pattern, so the mount must match that pattern. The display weighs 12.95 kg net and measures 1233 x 703.5 x 62 mm, so check the mount's load rating and the wall structure. Procure.ae arranges delivery and installation across the UAE.
What connections does the CDE5531-1C offer?
It has an RS-232 port, an SPDIF port, two RJ45 ports for LAN in and LAN out, two USB Type-A ports and one USB-C port with 65 W power delivery and DisplayPort 1.2. The manufacturer's specifications do not list an HDMI input, so confirm your source connection before ordering.
Can the CDE5531-1C be managed remotely?
Yes. The manufacturer lists centralised remote control through ViewSonic Manager, static IP configuration and a simplified web-based UI. AirSync supports wireless presentation, and a WiFi slot is provided for network connection.
