ViewSonicFloor Standing KiosksSKU EP5542

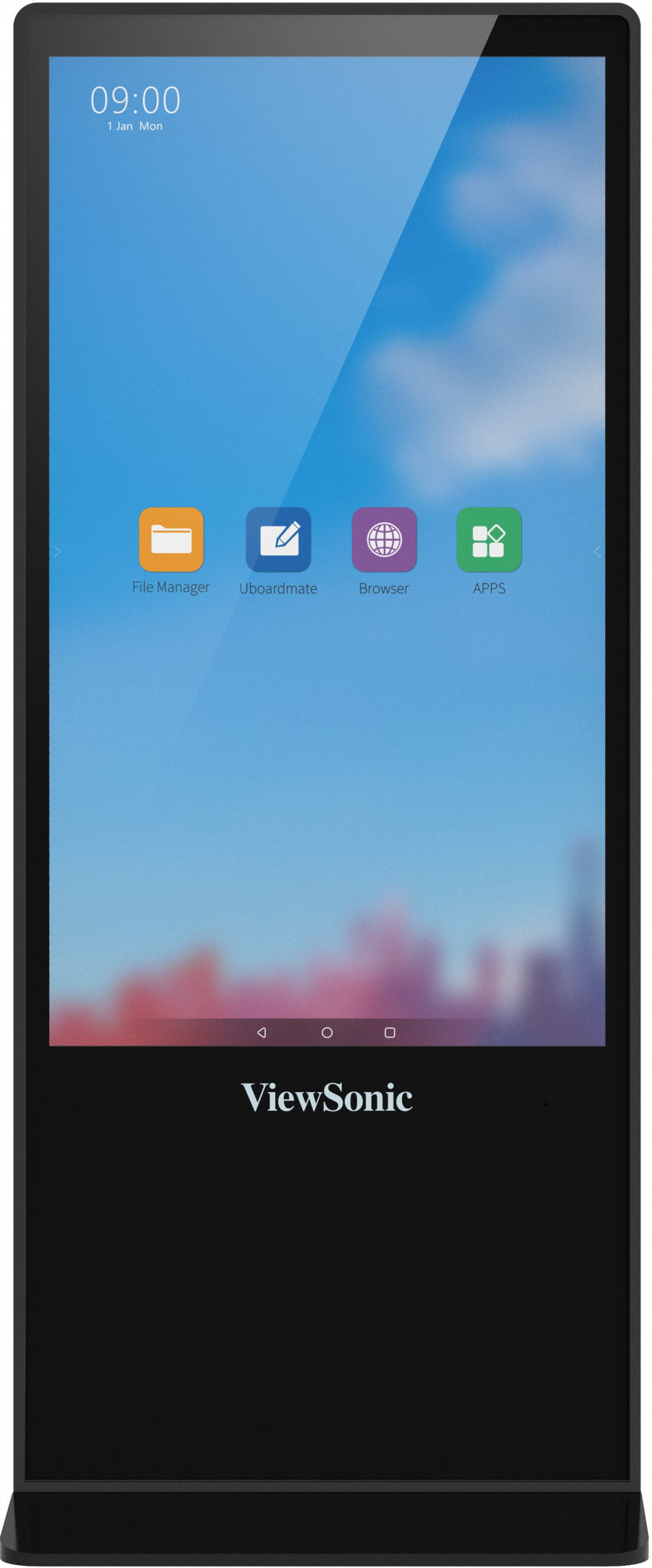

ViewSonic 55-inch Portrait 4K UHD Digital ePoster Kiosk – EP5542
The ViewSonic EP5542 is a freestanding 55-inch portrait 4K UHD digital ePoster kiosk for visual messaging in commercial spaces. It offers a 2160 x 3840 panel rated 450 nits typical, an embedded quad-core media player and 16 GB of internal storage. Procure.ae supplies the ViewSonic EP5542 across the UAE.
The EP5542 uses a 55-inch TFT LCD with VA panel technology and DLED backlight. Its anti-glare surface has 7H pencil hardness and 2% haze, and the glass faceplate is scratch-proof. Typical brightness is 450 nits and typical contrast is 1,300:1, with 178-degree horizontal and vertical viewing angles. Dual 10 W stereo speakers and the quad-core media player with 16 GB of internal memory handle multimedia playback.
The EP5542 is designed as a freestanding unit for lobbies, reception areas and public spaces. Settings for several devices can be managed remotely with the vController app, which integrates RS232 and LAN command control. Power draw is 126 W normal and 149 W maximum on 100-240 V AC. Compared with the EP5543, it has a VA panel and 450 nits typical brightness, against 700 nits on the EP5543.
Screen Size
55 inch
Resolution
2160 x 3840 (4K UHD)
Brightness
450 nits
Type
Digital ePoster Kiosk
- Portrait 4K UHD
- Anti-glare glass
- Embedded media player
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Portrait 4K UHD
2160 x 3840 native resolution, with 60 Hz input over HDMI and DisplayPort.
02
Anti-glare glass
7H pencil hardness and 2% haze on the surface.
03
Embedded media player
quad-core player with 16 GB of internal memory.
04
Stereo audio
dual 10 W stereo speakers.
05
Remote management
vController app over RS232 and LAN command control.
06
Multiple inputs
HDMI 2.0 × 3, DisplayPort 1.2, VGA and RJ45 LAN ports.
07
Wide viewing angle
178 degrees horizontal and vertical, with 450 nits typical brightness.
Specifications
29 specificationsGeneral
ControlsvController app, RS232, LAN
Key Features55-inch portrait 4K UHD, 450 nits typical, 7H anti-glare glass, quad-core media player, 16 GB storage, RS232 and LAN control, dual 10 W speakers
ModelEP5542
TypeDigital ePoster Kiosk
Display
Aspect Ratio9:16
BacklightDLED
Brightness450 nits
Color Depth1.07 billion
Contrast Ratio1,300:1
Display TypeTFT LCD
OrientationPortrait
Panel TechnologyVA
Resolution2160 x 3840 (4K UHD)
Response Time9 ms (G to G)
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
ProcessorQuad-core media player
Storage16 GB
Audio
Speaker OutputDual 10 W stereo
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 3, DisplayPort 1.2 × 1, VGA × 1, RJ45 × 1, RS232 × 1, USB Type-A 2.0 × 3, SPDIF × 1, 3.5 mm audio × 2
Power
Power Consumption126 W (normal), 149 W (max)
Standby PowerUnder 0.5 W (off)
Physical
Dimensions768.5 x 1870 x 450 mm
MountingFreestanding
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, 7H pencil hardness, 2% haze
Weight62.7 kg
Downloads
Manufacturer documents for the ViewSonic 55-inch Portrait 4K UHD Digital ePoster Kiosk – EP5542 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What panel does the EP5542 use?
It uses a 55-inch TFT LCD with VA panel technology and DLED backlight. The panel has a 2160 x 3840 native resolution, 450 nits typical brightness and 1,300:1 typical contrast, with 9 ms typical G-to-G response time and a rated backlight life of 30,000 hours.
Can the EP5542 be managed remotely?
Yes. The vController app manages settings across multiple devices, integrated with RS232 and LAN command control. The unit includes an RJ45 port and an RS232 port for these connections, and settings for multiple devices can be managed wherever the units are.
What media does the EP5542 play?
The EP5542 plays multimedia through its embedded quad-core media player, which has 16 GB of internal memory. The manufacturer's specifications do not list supported file formats, so confirm your content format with Procure.ae before installation.
Does the EP5542 need wall mounting?
No. The EP5542 is designed as a freestanding all-in-one unit. The manufacturer's specifications do not list a VESA mount, so ask Procure.ae about mounting options for your site before ordering.
What power does the EP5542 need?
It runs on 100-240 V AC with a wide input range. Consumption is 126 W normal and 149 W maximum, and it draws under 0.5 W when off. The unit is rated for 0 to 40 °C and 20% to 80% humidity, non-condensing.
Can I buy the EP5542 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
