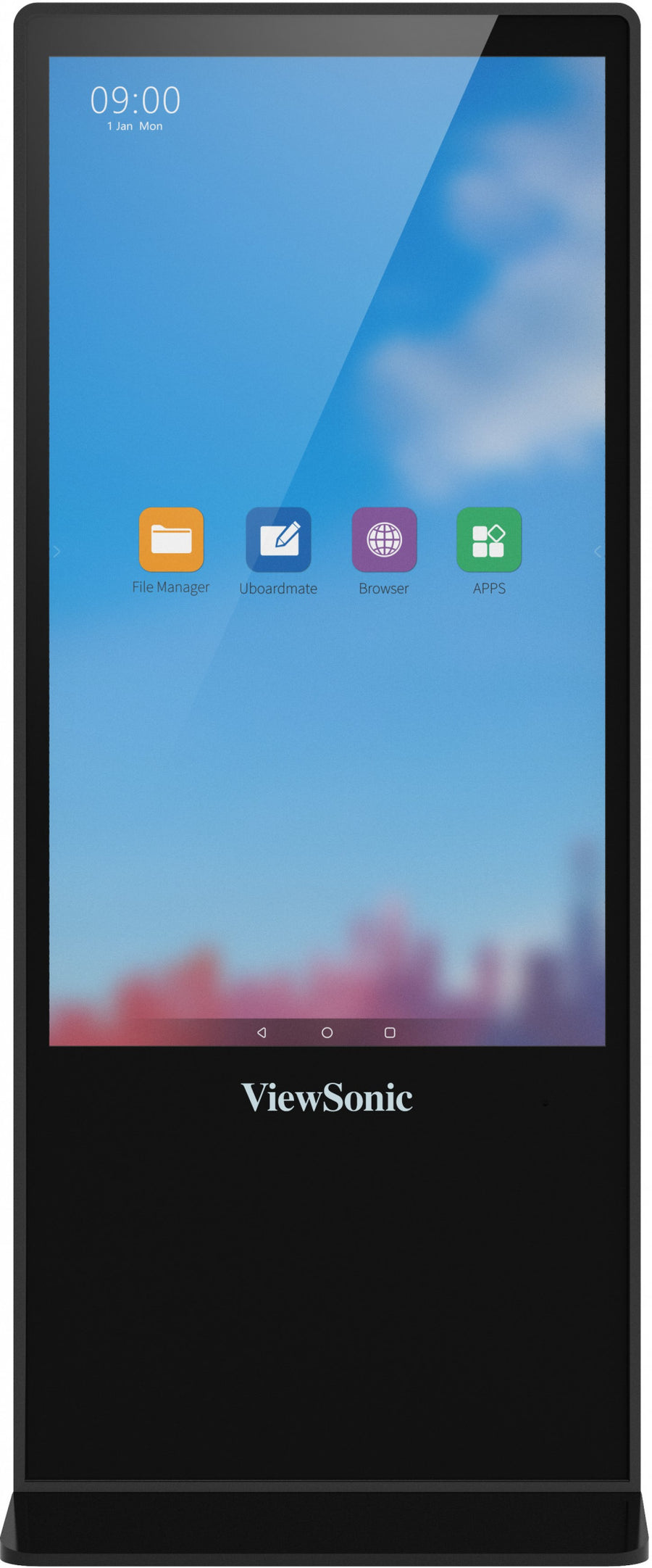

ViewSonic 55-inch Portrait 4K UHD Digital ePoster Kiosk – EP5542
The ViewSonic EP5542 is a freestanding 55-inch portrait 4K UHD digital ePoster kiosk for visual messaging in commercial spaces. It offers a 2160 x 3840 panel rated 450 nits typical, an embedded quad-core media player and 16 GB of internal storage. Procure.ae supplies the ViewSonic EP5542 across the UAE.
The EP5542 uses a 55-inch TFT LCD with VA panel technology and DLED backlight. Its anti-glare surface has 7H pencil hardness and 2% haze, and the glass faceplate is scratch-proof. Typical brightness is 450 nits and typical contrast is 1,300:1, with 178-degree horizontal and vertical viewing angles. Dual 10 W stereo speakers and the quad-core media player with 16 GB of internal memory handle multimedia playback.
The EP5542 is designed as a freestanding unit for lobbies, reception areas and public spaces. Settings for several devices can be managed remotely with the vController app, which integrates RS232 and LAN command control. Power draw is 126 W normal and 149 W maximum on 100-240 V AC. Compared with the EP5543, it has a VA panel and 450 nits typical brightness, against 700 nits on the EP5543.
Key features
Specifications
| Controls | vController app, RS232, LAN |
| Key Features | 55-inch portrait 4K UHD, 450 nits typical, 7H anti-glare glass, quad-core media player, 16 GB storage, RS232 and LAN control, dual 10 W speakers |
| Model | EP5542 |
| Type | Digital ePoster Kiosk |
| Aspect Ratio | 9:16 |
| Backlight | DLED |
| Brightness | 450 nits |
| Color Depth | 1.07 billion |
| Contrast Ratio | 1,300:1 |
| Display Type | TFT LCD |
| Orientation | Portrait |
| Panel Technology | VA |
| Resolution | 2160 x 3840 (4K UHD) |
| Response Time | 9 ms (G to G) |
| Screen Size | 55 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Processor | Quad-core media player |
| Storage | 16 GB |
| Speaker Output | Dual 10 W stereo |
| Input Voltage | 100–240 V AC |
| Ports | HDMI 2.0 × 3, DisplayPort 1.2 × 1, VGA × 1, RJ45 × 1, RS232 × 1, USB Type-A 2.0 × 3, SPDIF × 1, 3.5 mm audio × 2 |
| Power Consumption | 126 W (normal), 149 W (max) |
| Standby Power | Under 0.5 W (off) |
| Dimensions | 768.5 x 1870 x 450 mm |
| Mounting | Freestanding |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | Anti-glare, 7H pencil hardness, 2% haze |
| Weight | 62.7 kg |
