ViewSonicFloor Standing KiosksSKU EP5543

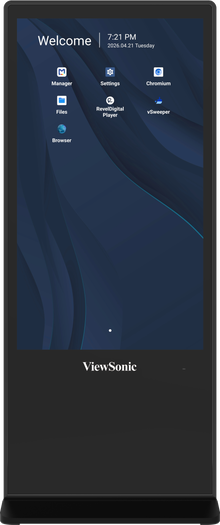

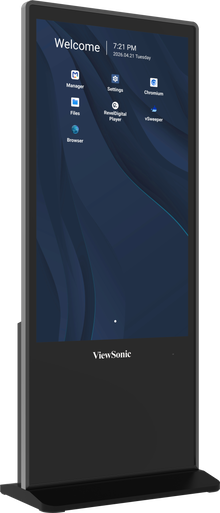

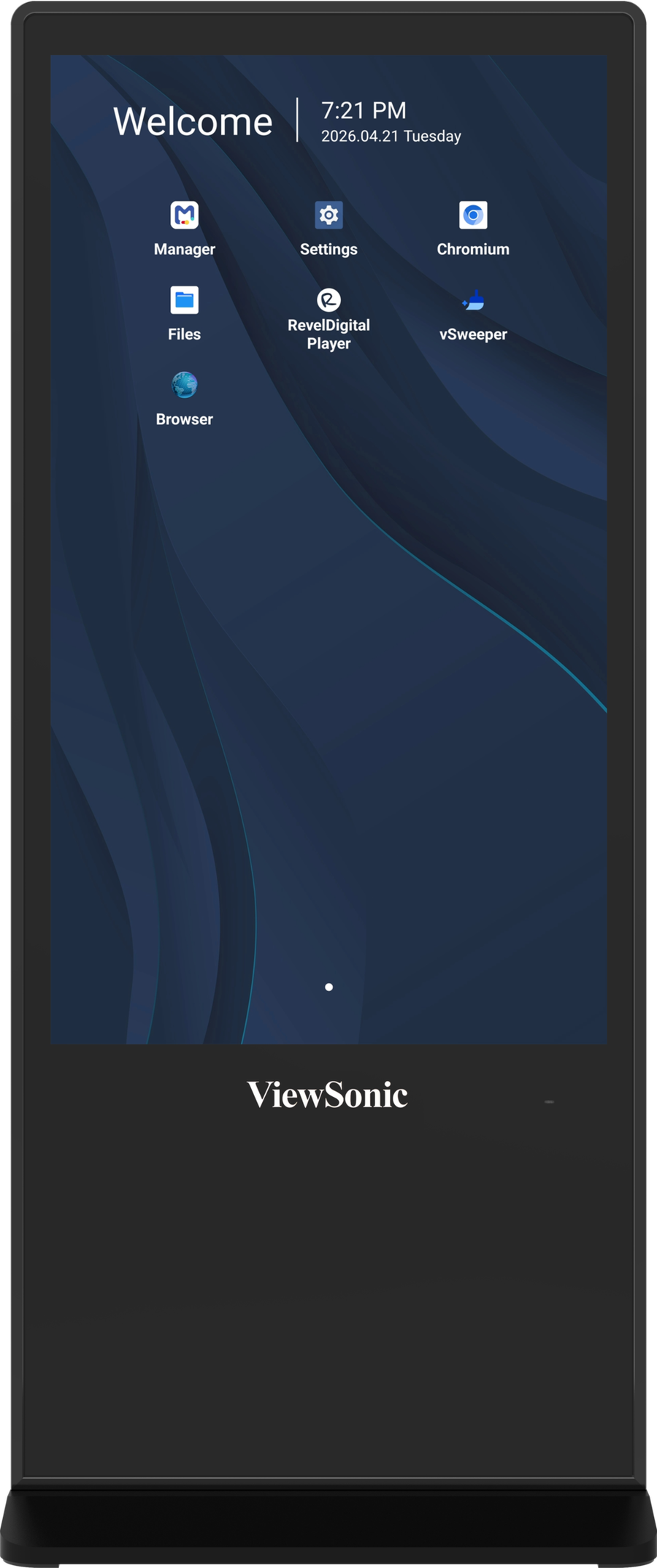

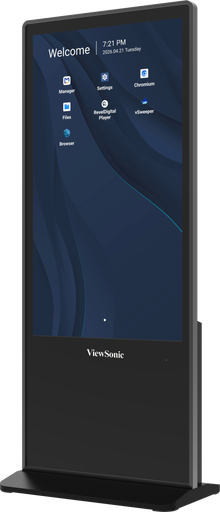

ViewSonic 55-inch 4K UHD Android ePoster Kiosk – EP5543
The ViewSonic EP5543 is a 55-inch 4K UHD all-in-one ePoster kiosk running Android 14 for corporate, hospitality and campus signage. It has 700 nits typical brightness, 8 GB RAM and 128 GB storage. Procure.ae supplies the ViewSonic EP5543 across the UAE.
The EP5543 uses an ADS-type TFT LCD with DLED backlight and a 2160 x 3840 native resolution. Typical brightness is 700 nits with 25% haze anti-glare, typical contrast is 1,200:1, and viewing angles are 178 degrees horizontal and vertical. Its octa-core Android 14 platform has 8 GB RAM and 128 GB storage, and it plays JPEG, PNG, MP4 and HTML5 content. It comes pre-installed with Revel Digital CMS, and more platforms can be added via Google Play Store.

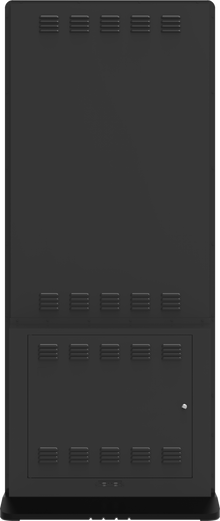

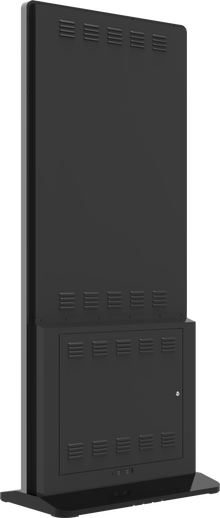

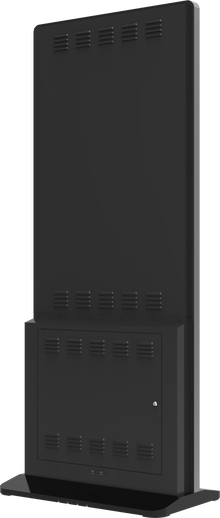

The EP5543 is an all-in-one freestanding design with a built-in Mini PC compartment, integrated AC power output and hidden cable routing. It is built for always-on operation in corporate communications, campus announcements and hospitality signage. Compared with the EP5542, it lists 700 nits typical brightness against 450 nits, and an Android 14 platform with 8 GB RAM. Procure.ae delivers and installs across the UAE.
Screen Size
55 inch
Resolution
2160 x 3840 (4K UHD)
Brightness
700 nits
Type
Digital ePoster Kiosk
- Android 14 platform
- Brightness
- 4K UHD panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
octa-core system with 8 GB RAM and 128 GB storage.
02
Brightness
700 nits typical, with a 25% haze anti-glare surface.
03
4K UHD panel
2160 x 3840 native resolution at 60 Hz over HDMI and DisplayPort.
04
Revel Digital CMS
pre-installed for centralised content management.
05
Media formats
JPEG, PNG, MP4 and HTML5 content, plus Google Play apps.
06
Built-in Mini PC bay
compartment with integrated AC power output and hidden cable routing.
07
Always-on operation
designed for reliable 24/7 operation at 0 to 40 °C.
Specifications
30 specificationsGeneral
Key FeaturesAndroid 14, 55-inch 4K UHD portrait, 700 nits, Revel Digital CMS, JPEG/PNG/MP4/HTML5, 8 GB RAM, 128 GB storage, built-in Mini PC compartment
ModelEP5543
TypeDigital ePoster Kiosk
Display
Aspect Ratio9:16
BacklightDLED
Brightness700 nits
Color Depth1.07 billion (8-bit + FRC)
Contrast Ratio1,200:1
Display TypeTFT LCD
OrientationPortrait
Panel TechnologyADS
Resolution2160 x 3840 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Media TypeJPEG, PNG, MP4, HTML5
Operating SystemAndroid 14
ProcessorOcta-core
RAM8 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 2, HDMI × 1, DisplayPort 1.2 × 1, VGA × 1, 3.5 mm audio × 2, microphone (3.5 mm) × 1, RJ45 × 2, USB Type-A × 4, RS232 × 1, SPDIF × 1
Power
Power Consumption61.7 W (typical), 230 W (max)
Standby PowerUnder 0.5 W (standby), under 0.3 W (off)
Physical
Dimensions778.5 x 1875 x 450 mm
MountingFreestanding
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, 7H pencil hardness, 25% haze
Weight63 kg
Downloads
Manufacturer documents for the ViewSonic 55-inch 4K UHD Android ePoster Kiosk – EP5543 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What operating system does the EP5543 run?
It runs Android 14 on an octa-core platform with 8 GB RAM and 128 GB storage. Revel Digital CMS is pre-installed for content management, and more apps can be added through the Google Play Store.
Does the EP5543 support 4K content?
Yes. The panel has a 2160 x 3840 native resolution, and its HDMI and DisplayPort inputs are rated for 2160 x 3840 at 60 Hz. The platform is described for smooth 4K multimedia playback with reliable commercial performance.
What content formats can the EP5543 play?
The EP5543 supports JPEG, PNG, MP4 and HTML5 content. It is pre-installed with Revel Digital CMS for centralised content management, and other platforms can be installed from the Google Play Store.
Does the EP5543 need wall mounting?
No. The EP5543 is an all-in-one freestanding design with a built-in Mini PC compartment and integrated AC power output. The manufacturer's specifications do not list a VESA mount, so ask Procure.ae about mounting options for your site.
What power does the EP5543 need?
It runs on 100-240 V AC and draws 61.7 W typical and 230 W maximum. Standby draw is under 0.5 W and off-mode draw is under 0.3 W. It is rated for 0 to 40 °C and 20% to 80% humidity, non-condensing.
