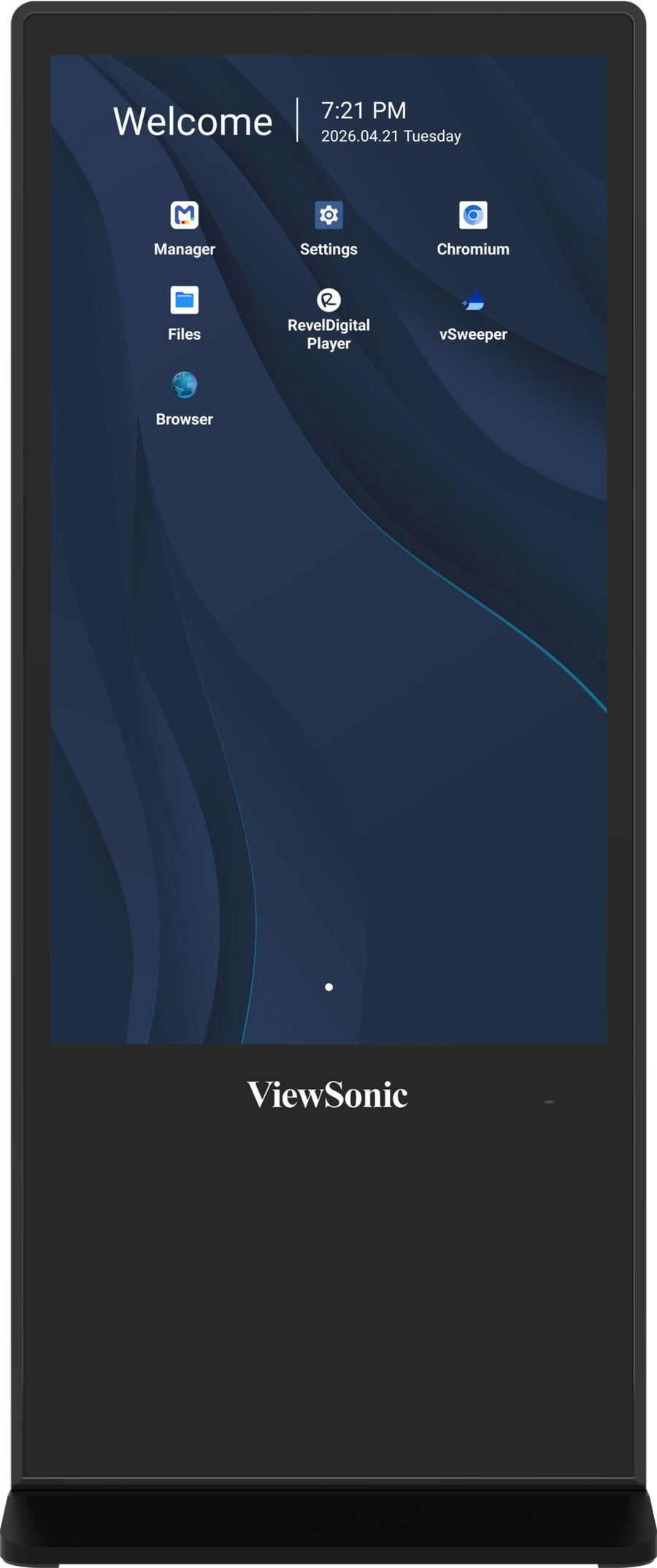

ViewSonic 55-inch 4K UHD Android ePoster Kiosk – EP5543

ViewSonic 55-inch 4K UHD Android ePoster Kiosk – EP5543

The ViewSonic EP5543 is a 55-inch 4K UHD all-in-one ePoster kiosk running Android 14 for corporate, hospitality and campus signage. It has 700 nits typical brightness, 8 GB RAM and 128 GB storage. Procure.ae supplies the ViewSonic EP5543 across the UAE.

The EP5543 uses an ADS-type TFT LCD with DLED backlight and a 2160 x 3840 native resolution. Typical brightness is 700 nits with 25% haze anti-glare, typical contrast is 1,200:1, and viewing angles are 178 degrees horizontal and vertical. Its octa-core Android 14 platform has 8 GB RAM and 128 GB storage, and it plays JPEG, PNG, MP4 and HTML5 content. It comes pre-installed with Revel Digital CMS, and more platforms can be added via Google Play Store.

The EP5543 is an all-in-one freestanding design with a built-in Mini PC compartment, integrated AC power output and hidden cable routing. It is built for always-on operation in corporate communications, campus announcements and hospitality signage. Compared with the EP5542, it lists 700 nits typical brightness against 450 nits, and an Android 14 platform with 8 GB RAM. Procure.ae delivers and installs across the UAE.

Screen Size
55 inch
Resolution
2160 x 3840 (4K UHD)
Brightness
700 nits
Type
Digital ePoster Kiosk
Weight
63 kg

Key features

01
Android 14 platform
octa-core system with 8 GB RAM and 128 GB storage.
02
Brightness
700 nits typical, with a 25% haze anti-glare surface.
03
4K UHD panel
2160 x 3840 native resolution at 60 Hz over HDMI and DisplayPort.
04
Revel Digital CMS
pre-installed for centralised content management.
05
Media formats
JPEG, PNG, MP4 and HTML5 content, plus Google Play apps.
06
Built-in Mini PC bay
compartment with integrated AC power output and hidden cable routing.
07
Always-on operation
designed for reliable 24/7 operation at 0 to 40 °C.

Specifications

General
Key FeaturesAndroid 14, 55-inch 4K UHD portrait, 700 nits, Revel Digital CMS, JPEG/PNG/MP4/HTML5, 8 GB RAM, 128 GB storage, built-in Mini PC compartment
ModelEP5543
TypeDigital ePoster Kiosk
Display
Aspect Ratio9:16
BacklightDLED
Brightness700 nits
Color Depth1.07 billion (8-bit + FRC)
Contrast Ratio1,200:1
Display TypeTFT LCD
OrientationPortrait
Panel TechnologyADS
Resolution2160 x 3840 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Media TypeJPEG, PNG, MP4, HTML5
Operating SystemAndroid 14
ProcessorOcta-core
RAM8 GB
Storage128 GB
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 2, HDMI × 1, DisplayPort 1.2 × 1, VGA × 1, 3.5 mm audio × 2, microphone (3.5 mm) × 1, RJ45 × 2, USB Type-A × 4, RS232 × 1, SPDIF × 1
Power
Power Consumption61.7 W (typical), 230 W (max)
Standby PowerUnder 0.5 W (standby), under 0.3 W (off)
Physical
Dimensions778.5 x 1875 x 450 mm
MountingFreestanding
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, 7H pencil hardness, 25% haze
Weight63 kg
QR code to ViewSonic 55-inch 4K UHD Android ePoster Kiosk – EP5543 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
