ViewSonicDigital SignageSKU CDE4314-2C

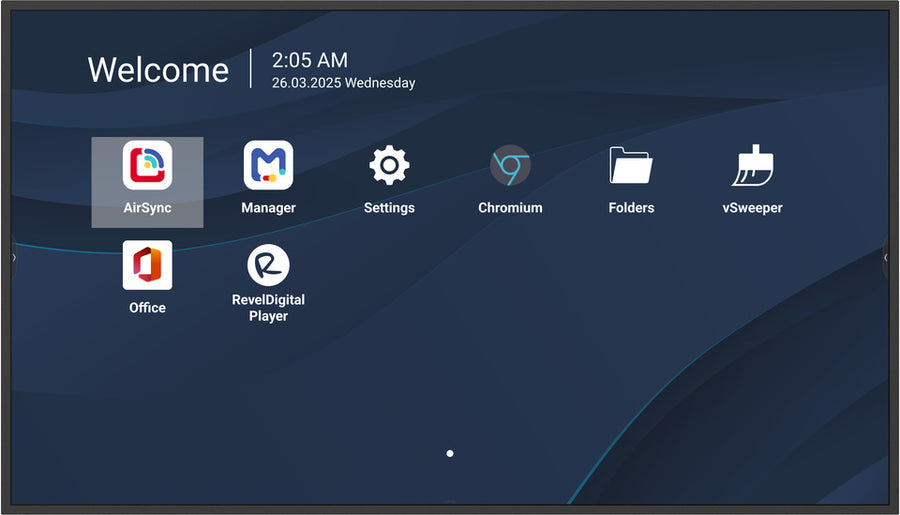

ViewSonic 43-inch 4K Commercial Digital Signage Display – CDE4314-2C
The ViewSonic CDE4314-2C is a 43-inch 4K commercial digital signage display built for 24/7 operation. It has 3840 x 2160 resolution, 500 nits typical brightness, and landscape or portrait orientation, and it runs Android 14. Procure.ae supplies the CDE4314-2C in the UAE.
The display uses a 43-inch 16:9 LCD panel with DLED backlight, 3840 x 2160 native resolution and 8-bit plus FRC colour. Brightness is 500 nits typical, and contrast is 1,200:1 typical or 2,000:1 with dynamic contrast enabled. The 8 ms response time and 178-degree viewing angles keep content readable from the side. An anti-glare coating with 3H surface hardness helps in bright rooms. A quad-core Cortex-A73 processor with 4 GB DDR4 RAM and 32 GB storage runs the built-in Android 14 system, which the manufacturer describes as offering fast warm boot.
The manufacturer lists ViewSonic Manager for deployment and remote management, and says the display integrates with leading Pro AV control systems. AirSync provides wireless presentation. The USB-C port carries DisplayPort 1.2 video, 15 W power delivery and Ethernet sharing. According to the manufacturer, USB media playback continues with automatic signal failover if the primary source is lost. The VESA pattern is 200 x 200 mm.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- 4K UHD Panel

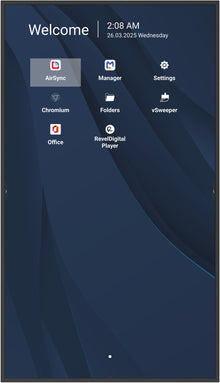

- Landscape and Portrait
- 500-Nit Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3840 x 2160 resolution on a 43-inch 16:9 LCD.
02
Landscape and Portrait
supports both orientations for signage layouts.
03
500-Nit Brightness
500 nits typical with an anti-glare coating and 3H surface hardness.
04
Android 14 Platform
quad-core processor with 4 GB DDR4 RAM and 32 GB storage.
05
USB-C with Power Delivery
DisplayPort 1.2 video, 15 W power delivery and Ethernet sharing.
06
AirSync Wireless Presentation
wireless presentation supported by the built-in system.
07
Remote Management
ViewSonic Manager for deployment and remote management.
08
Continuous Playback
USB media playback with automatic signal failover.
Specifications
31 specificationsGeneral
Application24/7 commercial and digital signage use
Key Features43-inch 4K, 500 nits, landscape and portrait, Android 14, AirSync wireless presentation, USB-C with 15 W PD, remote management software, RS-232 control
ModelCDE4314-2C
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size9.9 mm on all sides
Brightness500 nits (typical)
Color Depth8-bit + FRC
Contrast Ratio1,200:1 typical; 2,000:1 with DCR enabled
OrientationLandscape and portrait
Panel TechnologyLCD (TFT)
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
Operating SystemAndroid 14
ProcessorQuad-core ARM Cortex-A73
RAM4 GB DDR4
Storage32 GB
Connectivity
Input Voltage100–240 V AC ±10%

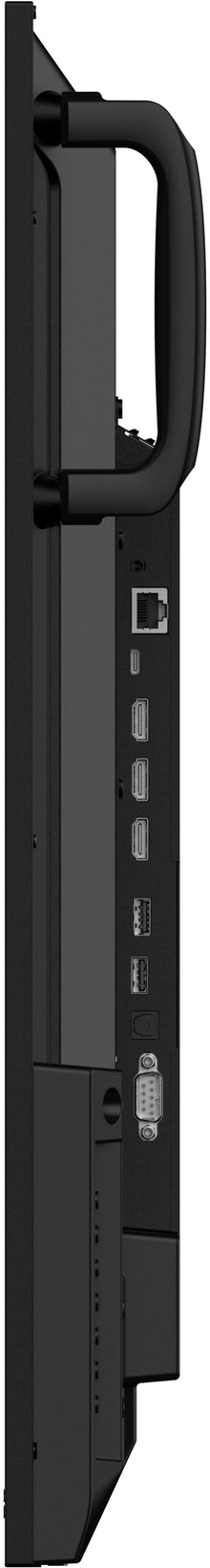

PortsRS-232 x 1, SPDIF x 1, RJ45 x 1, USB 2.0 Type-A x 2, USB-C x 1 (DP 1.2, 15 W PD), WiFi slot x 1
Wi-FiWiFi module slot x 1
Power
Power Consumption65.18 W (ENERGY STAR)
Physical
Dimensions964.6 x 552.5 x 62 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Weight13.04 kg (gross)
Surface Protection3H hardness, anti-glare coating, 25% haze
VESA Mount200 x 200 mm
Weight9.1 kg (net)
Downloads
Manufacturer documents for the ViewSonic 43-inch 4K Commercial Digital Signage Display – CDE4314-2C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the CDE4314-2C a 4K display?
Yes. The panel has a native resolution of 3840 x 2160 in a 16:9 aspect ratio, at 43 inches. The manufacturer lists 8-bit plus FRC colour, a 1,200:1 typical contrast ratio and 500 nits typical brightness.
Can it run 24/7?
Yes. The manufacturer describes the display as built for 24/7 operation in offices, retail spaces and transit hubs. It has a fast warm boot for immediate start-up, and continuous USB media playback with automatic signal failover.
Can it be mounted in portrait orientation?
Yes. The display supports both landscape and portrait orientation. It has a 200 x 200 mm VESA wall-mount pattern, and it weighs 9.1 kg net, so choose a bracket rated for that weight plus the mount hardware.
How is it managed remotely?
The display works with ViewSonic Manager for deployment and remote management, and the manufacturer says it integrates with leading Pro AV control systems. It also has an RS-232 port and an RJ45 network port.
Does it suit bright rooms?
The display has 500 nits typical brightness, an anti-glare coating and 3H surface hardness, with a 25% haze rating that softens reflections. Those specifications help readability in bright rooms, although placement near strong sunlight still needs planning.
Can I buy the CDE4314-2C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
