TrendDigital SignageSKU TD-185CDT

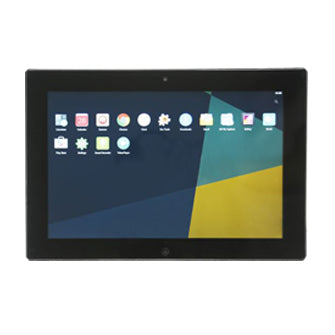

Trend Compact 18.5-inch Digital Signage Display – TD-185CDT
The Trend TD-185CDT is an 18.5-inch Full HD digital signage display with 10-point capacitive touch and Power over Ethernet. It runs Android 6.0 and includes a desktop bracket, so it suits compact kiosks, wayfinding and interactive signage. Procure.ae supplies the TD-185CDT across the UAE.
The TD-185CDT uses an 18.5-inch IPS panel with 1920 x 1080 (Full HD) resolution, a 16:9 aspect ratio, 250 nits brightness and a 1,000:1 contrast ratio. Its 10-point capacitive touch supports interactive kiosks and wayfinding screens. The display runs Android 6.0 on an A64 quad-core processor, with 8 GB of storage (up to 32 GB optional). It also includes 802.11 b/g/n Wi-Fi, Bluetooth 4.0, an RJ45 port with PoE, and a 2 MP camera.
The TD-185CDT fits retail counters, hotel reception desks, restaurant ordering points and wayfinding kiosks where a compact touch screen sits on a desk or a wall. Its RJ45 port supports Power over Ethernet, so one cable can carry network and power. The standard desktop bracket sets the display up on a counter, and the 75 x 75 mm VESA pattern works with compatible wall or arm mounts. Wireless keyboard and mouse support allows local input. The manufacturer lists a 1-year warranty.
Screen Size
18.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
250 nits
Touch Technology
PCAP
- 10-point touch
- Full HD IPS panel
- Power over Ethernet
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
10-point touch
Capacitive touch supports 10 points for kiosk and wayfinding use.
02
Full HD IPS panel
The 18.5-inch panel shows 1920 x 1080 at 250 nits with a 16:9 aspect ratio.
03
Power over Ethernet
The RJ45 port supports PoE, so network and power can share one cable.
04
Android 6.0
Runs Android 6.0, with optional Android 5.1 and 4.4 builds.
05
Desktop bracket included
A standard desktop bracket is supplied, and the VESA pattern is 75 x 75 mm.
06
Storage options
Storage is 8 GB built in, with up to 32 GB optional and an SD card slot.
07
Wireless input
Wireless keyboard and mouse support allows local control.
08
2-megapixel camera
A 2 MP camera is built in.
Specifications
30 specificationsGeneral
Key Features10-point capacitive touch, Full HD IPS panel, Power over Ethernet, Android 6.0, Desktop bracket included, Wireless keyboard and mouse support, 2 MP camera
ModelTD-185CDT
TypeCompact Digital Signage Display
What's in the Box12 V / 3 A adapter, standard desktop bracket
Display
Aspect Ratio16:9
Brightness250 nits
Camera2 MP
Contrast Ratio1,000:1
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Screen Size18.5 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Performance
Operating SystemAndroid 6.0 (optional Android 5.1 / 4.4)
ProcessorA64 quad-core (optional RK3188 / RK3288)
Storage8 GB (up to 32 GB optional)
Audio
Audio Out3.5 mm stereo headphone output
Speaker Output3 W x 2
Connectivity
BluetoothBluetooth 4.0
EthernetRJ45 x1
PoESupported
PortsSD card slot x1 (up to 32 GB), Mini USB OTG x1, USB Host 2.0 x3, RJ45 x1, DC power x1, 3.5 mm headphone x1
SD Card Slot1 (up to 32 GB)
Wi-Fi802.11 b/g/n
Power
Power Source12 V DC, 3 A adapter
Physical
Dimensions460 x 282 x 37 mm
MountingStandard desktop bracket included
VESA Mount75 x 75 mm
Weight2.7 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend Compact 18.5-inch Digital Signage Display – TD-185CDT — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TD-185CDT a touch screen?
Yes. It has 10-point capacitive touch, which supports multi-touch interaction for kiosks, wayfinding and interactive signage. The panel is an 18.5-inch IPS display at 1920 x 1080, so touch content should be designed for that resolution.
Does the TD-185CDT support Power over Ethernet?
Yes. The RJ45 network port supports PoE, so the display can receive network and power over one Ethernet cable, provided the switch or injector supports PoE. The standard accessories include a 12 V / 3 A adapter for direct DC power.
What operating system does the TD-185CDT use?
It runs Android 6.0. The manufacturer also lists optional Android 5.1 and 4.4 builds, and the device supports installing apps for content and interactive use. Confirm the build you need before ordering.
How is the TD-185CDT mounted?
The TD-185CDT comes with a standard desktop bracket for counter or desk use. It also has a 75 x 75 mm VESA pattern for compatible wall or arm mounts. Check mount hardware against that pattern before installation.
Does the TD-185CDT have Wi-Fi and Bluetooth?
Yes. It has 802.11 b/g/n Wi-Fi and Bluetooth 4.0. It also supports wireless keyboard and mouse input, and its Ethernet port supports PoE, so you can choose wired or wireless networking for each site.
Can I buy the TD-185CDT in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
