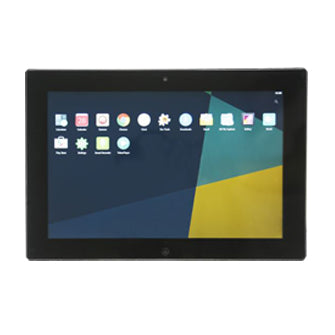

The Trend TD-185CDT is an 18.5-inch Full HD digital signage display with 10-point capacitive touch and Power over Ethernet. It runs Android 6.0 and includes a desktop bracket, so it suits compact kiosks, wayfinding and interactive signage. Procure.ae supplies the TD-185CDT across the UAE.
The TD-185CDT uses an 18.5-inch IPS panel with 1920 x 1080 (Full HD) resolution, a 16:9 aspect ratio, 250 nits brightness and a 1,000:1 contrast ratio. Its 10-point capacitive touch supports interactive kiosks and wayfinding screens. The display runs Android 6.0 on an A64 quad-core processor, with 8 GB of storage (up to 32 GB optional). It also includes 802.11 b/g/n Wi-Fi, Bluetooth 4.0, an RJ45 port with PoE, and a 2 MP camera.
The TD-185CDT fits retail counters, hotel reception desks, restaurant ordering points and wayfinding kiosks where a compact touch screen sits on a desk or a wall. Its RJ45 port supports Power over Ethernet, so one cable can carry network and power. The standard desktop bracket sets the display up on a counter, and the 75 x 75 mm VESA pattern works with compatible wall or arm mounts. Wireless keyboard and mouse support allows local input. The manufacturer lists a 1-year warranty.
| Key Features | 10-point capacitive touch, Full HD IPS panel, Power over Ethernet, Android 6.0, Desktop bracket included, Wireless keyboard and mouse support, 2 MP camera |
| Model | TD-185CDT |
| Type | Compact Digital Signage Display |
| What's in the Box | 12 V / 3 A adapter, standard desktop bracket |
| Aspect Ratio | 16:9 |
| Brightness | 250 nits |
| Camera | 2 MP |
| Contrast Ratio | 1,000:1 |
| Panel Technology | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Size | 18.5 inch |
| Touch Points | 10-point multi-touch |
| Touch Technology | PCAP |
| Operating System | Android 6.0 (optional Android 5.1 / 4.4) |
| Processor | A64 quad-core (optional RK3188 / RK3288) |
| Storage | 8 GB (up to 32 GB optional) |
| Audio Out | 3.5 mm stereo headphone output |
| Speaker Output | 3 W x 2 |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | RJ45 x1 |
| PoE | Supported |
| Ports | SD card slot x1 (up to 32 GB), Mini USB OTG x1, USB Host 2.0 x3, RJ45 x1, DC power x1, 3.5 mm headphone x1 |
| SD Card Slot | 1 (up to 32 GB) |
| Wi-Fi | 802.11 b/g/n |
| Power Source | 12 V DC, 3 A adapter |
| Dimensions | 460 x 282 x 37 mm |
| Mounting | Standard desktop bracket included |
| VESA Mount | 75 x 75 mm |
| Weight | 2.7 kg |
| Warranty | 1 year |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
