Specktron CMM-8U Series AI Camera, 48MP USB AI conference cameraSpecktron
Meeting Room SolutionsSKU CMM-8U Series AI Camera

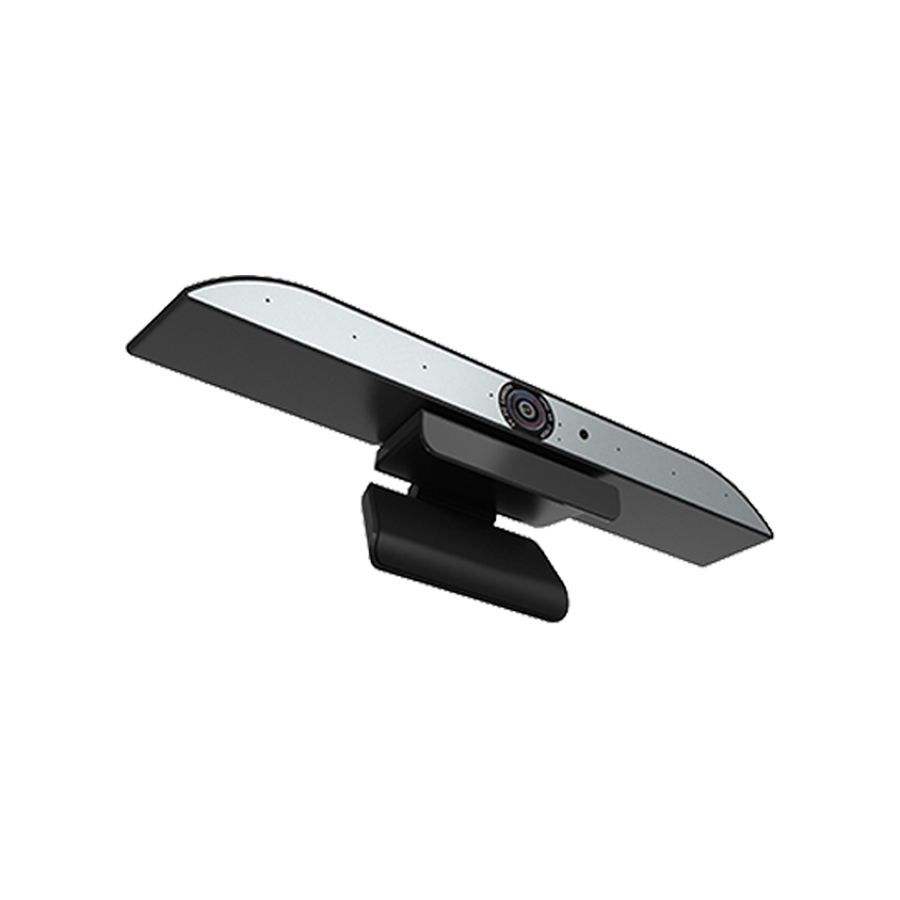

Specktron 48MP AI Conference Camera – CMM-8U Series

The Specktron CMM-8U Series AI Camera is a USB conference camera with a 48MP sensor, a 105-degree diagonal field of view and auto framing. Its 8-microphone array picks up voices up to 8 meters. It suits hybrid meetings, classrooms and boardrooms. Procure.ae supplies the Specktron CMM-8U in the UAE.

The camera uses a 1/2-inch CMOS sensor with 48MP effective pixels and 3D digital noise reduction. It outputs MJPEG up to 8000 x 6000, with 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1280 x 960 and 1280 x 720 modes. The 105 degree ±5 degree diagonal field of view, auto white balance, backlight compensation, voice tracking and auto framing keep the presenter in shot, and the camera tilts 15 degrees up and down.

The camera suits hybrid meetings, classrooms and boardrooms, and the manufacturer lists it as a camera accessory for interactive flat panels. It connects over USB with the UVC video and UAC audio standards, and it draws up to 700 mA at DC 5 V. Its operating range is 0 to 50 °C. The manufacturer's specifications do not state a mounting bracket or the video conferencing platforms it supports, so confirm both with Procure.ae before ordering.

Ideal for: hybrid meetings, classrooms, boardrooms, and interactive flat panel rooms, across Dubai, Abu Dhabi, Sharjah and the wider GCC.

Resolution
8000 x 6000 (48MP, MJPEG), 3840 x 2...
Type
AI Conference Camera
  • 48MP sensor
  • 105-degree field of view
  • Auto framing and tracking
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
48MP sensor
1/2-inch CMOS sensor with 3D digital noise reduction.
02
105-degree field of view
105° ±5° diagonal, with ±15° up and down tilt.
03
Auto framing and tracking
Voice tracking and auto framing keep the presenter in shot.
04
8-microphone array
Built-in array picks up voices up to 8 meters, with a signal-to-noise ratio of 65 dB or more.
05
USB UVC and UAC support
Uses the UVC video and UAC audio protocol standards.
06
Multiple video modes
MJPEG up to 8000 x 6000, plus 4K UHD and Full HD modes.
07
Operating range
0 to 50 °C in use and -30 to 70 °C in storage.
08
Power input
DC 5 V at up to 700 mA.

Specifications

16 specifications
General
Key Features48MP CMOS sensor, 105° field of view, auto framing and voice tracking, 8-mic array with 8 m pickup, UVC and UAC protocols, MJPEG up to 8000 x 6000
ModelCMM-8U Series AI Camera
TypeAI Conference Camera
Display
Camera48MP CMOS sensor, 1/2-inch, 3D digital noise reduction
Resolution8000 x 6000 (48MP, MJPEG), 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD)
Performance
FunctionsAuto white balance, backlight compensation, voice tracking, auto framing
Storage Conditions-30 to 70 °C
Audio
MicrophoneBuilt-in 8-mic array
Pickup RangeUp to 8 m
Signal-to-Noise Ratio65 dB or more
Connectivity
Input VoltageDC 5 V
ProtocolsUVC, UAC
Power
Power ConsumptionUp to 700 mA at DC 5 V
Physical
Dimensions292 x 41 x 31 mm
Operating Temperature0 to 50 °C
Tilt±15° up and down

Downloads

Manufacturer documents for the Specktron 48MP AI Conference Camera – CMM-8U Series — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What does the CMM-8U Series AI Camera do?
It is a USB AI conference camera that tracks the presenter with voice tracking and auto framing. It has a 48MP sensor and a 105-degree diagonal field of view for hybrid meetings, classrooms and boardrooms.
Does it work with video conferencing software over USB?
Yes, it supports the UVC video and UAC audio protocol standards over USB. The manufacturer's specifications do not name specific conferencing platforms, so confirm your platform with Procure.ae before ordering.
What video resolutions does it output?
It outputs MJPEG at up to 8000 x 6000, plus 3840 x 2160 (4K UHD), 1920 x 1080 (Full HD), 1280 x 960 and 1280 x 720. Its video formats also include YUY2 and H.264.
How far can the microphones pick up a voice?
The built-in 8-microphone array picks up voices up to 8 meters, with a signal-to-noise ratio of 65 dB or more. The manufacturer's specifications do not state how the array performs in rooms with high background noise.
Can I mount it on an interactive flat panel?
The manufacturer's specifications do not state a mounting bracket or VESA pattern for this camera. The body measures 292 x 41 x 31 mm and tilts 15 degrees up and down, so check the fitting with Procure.ae before installation.
Can I buy the CMM-8U Series AI Camera in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
