SonyDigital SignageSKU FW-32BZ30J

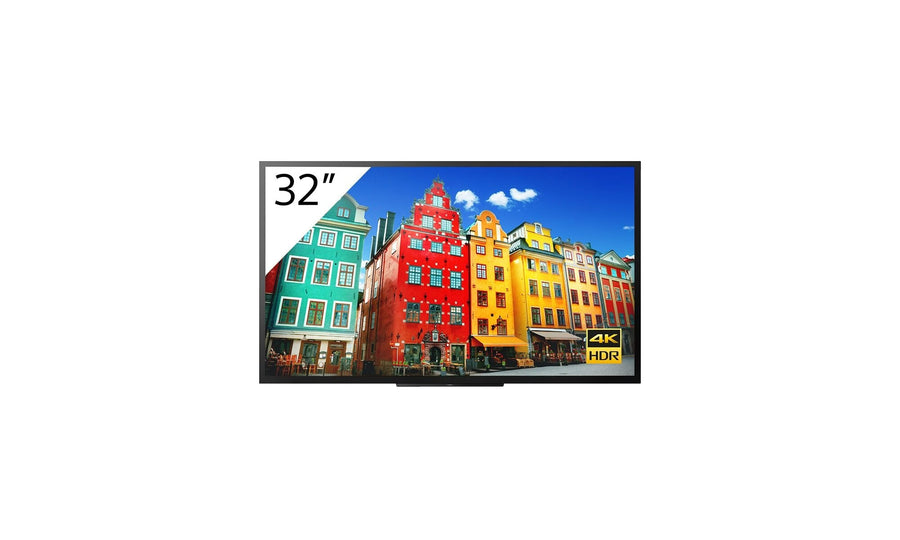

Sony Pro BRAVIA BZ30J 32-inch 4K UHD Digital Signage Display – FW-32BZ30J
The Sony FW-32BZ30J is a 32-inch 4K UHD professional display from the Pro BRAVIA BZ30J series, suited to reception areas, meeting rooms and retail counters. It offers 3840 x 2160 resolution, 300 nits brightness, a 3,000:1 contrast ratio and HDR10, HLG and Dolby Vision support. Procure.ae supplies the FW-32BZ30J in the UAE.
The FW-32BZ30J uses a 32-inch VA LCD panel with edge LED backlighting and frame dimming. It delivers 300 nits brightness, a 3,000:1 contrast ratio and 92% DCI-P3 colour gamut, with a 178-degree viewing angle. Picture processing comes from the 4K HDR Processor X1 and 4K X-Reality PRO, and Motionflow XR 240 runs on the native 60 Hz panel. The panel has a 10 ms grey-to-grey response time, and the built-in speakers output 5 W + 5 W.
The display runs Android with HTML5 platform support and includes Chromecast built-in, Apple AirPlay and Wi-Fi Direct for sharing content from compatible devices. IP control, RS-232C control and HDMI-CEC let it connect to a room or building control system. Multicast/IPTV support suits networked signage, and the display supports portrait and tilt orientation on a 100 x 200 mm VESA pattern.
Screen Size
32 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
- 4K UHD panel
- HDR support
- Colour performance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution on a 32-inch 16:9 VA panel.
02
HDR support
HDR10, HLG and Dolby Vision compatibility.
03
Colour performance
TRILUMINOS PRO display with 92% DCI-P3 colour gamut.
04
Brightness and contrast
300 nits brightness and a 3,000:1 contrast ratio.
05
Wireless sharing
integrated Wi-Fi with Wi-Fi Direct, Chromecast built-in and Apple AirPlay.
06
Android platform
Android operating system with HTML5 platform support and 16 GB on-board storage.
07
Network control
IP control, RS-232C control and HDMI-CEC.
08
Multicast and IPTV
multicast and IPTV support for networked signage.
Specifications
29 specificationsGeneral
Key FeaturesTRILUMINOS PRO, HDR10 / HLG / Dolby Vision, Chromecast built-in, Apple AirPlay, HTML5 platform, Portrait and tilt, IP control, RS-232C control
ModelFW-32BZ30J
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightEdge LED with frame dimming
Brightness300 nits
Color Gamut92% DCI-P3
Contrast Ratio3,000:1
Display TypeLCD
Panel TechnologyVA
Refresh Rate60 Hz (native)
Resolution3840 x 2160 (4K UHD)
Response Time10 ms
Screen Size32 inch
Viewing Angle178 degrees (89 / 89 horizontal and vertical)
Performance
Duty Cycle24/7
Operating SystemAndroid
Storage16 GB
Audio
Dynamic RangeHDR10, HLG, Dolby Vision
Speaker Output5 W + 5 W
Connectivity
PortsHDMI In × 4, USB × 2, Ethernet × 1, Composite Video In × 1, Analog Audio In × 1, Digital Audio Out × 1
Wi-FiIntegrated, with Wi-Fi Direct
Power
Power Consumption33 kWh per 1,000 h on-mode (EPREL)
Standby Power0.5 W
Physical
ColorBlack
Dimensions726 x 430 x 76 mm (without stand)
MountingVESA wall mount, portrait and tilt
VESA Mount100 x 200 mm
Weight7.7 kg (with stand)
Downloads
Manufacturer documents for the Sony Pro BRAVIA BZ30J 32-inch 4K UHD Digital Signage Display – FW-32BZ30J — datasheets, manuals, drawings and certificates.
- Datasheet – FW-32BZ30J
- User manual – FW-32BZ30J
- User manual – Sony (covers 19 models)
- User manual – Sony BZ30J / BZ40J
- BRAVIA-Wifi-Access-point-Meeting-Free-App EN
- BRAVIA-line-up-chart-2022-EU-WEB1
- Multi-screen-installation-of-LCD-Displays-or-LCD-Monitors
- BRAVIA Datasheet 2021
- Safety 50181151M
- Dismantling information for use by professional recyclers(English only) 98887894M
Questions
Can’t find your answer? Ask on WhatsApp
Is the FW-32BZ30J designed for continuous signage use?
Yes. The manufacturer lists 24/7 operation for the FW-32BZ30J, with a power saving mode, dynamic backlight control and 0.5 W standby consumption. It also includes an on/off timer and a sleep timer for scheduled operation.
Can the FW-32BZ30J be mounted in portrait orientation?
Yes. The display supports portrait and tilt orientation and is VESA hole spacing compatible, with a 100 x 200 mm hole pitch. It is listed at 7.7 kg with stand, so check the wall mount's VESA pattern and weight rating before installation. Procure.ae can arrange installation across the UAE.
Can the FW-32BZ30J connect to a control system?
Yes. It supports IP control and RS-232C control, and HDMI-CEC lets compatible devices control power and input over HDMI. These options suit integration with a room or building control system.
Which HDMI signals does it accept?
It has four HDMI inputs with HDCP 2.3 support. Supported signals include 4096 x 2160 at 24, 50 and 60 Hz, 3840 x 2160 at 24, 25, 30, 50 and 60 Hz, and 1080p at 24, 30, 50 and 60 Hz, plus 1080i, 720p, 576p and 480p.
Does the FW-32BZ30J have built-in speakers?
Yes. It has 5 W + 5 W down-firing speakers. The side panel includes a digital audio output and an analog audio input for external sound equipment, plus one composite video input with a mini jack.
