SonyMeeting Room SolutionsSKU BRC-X400

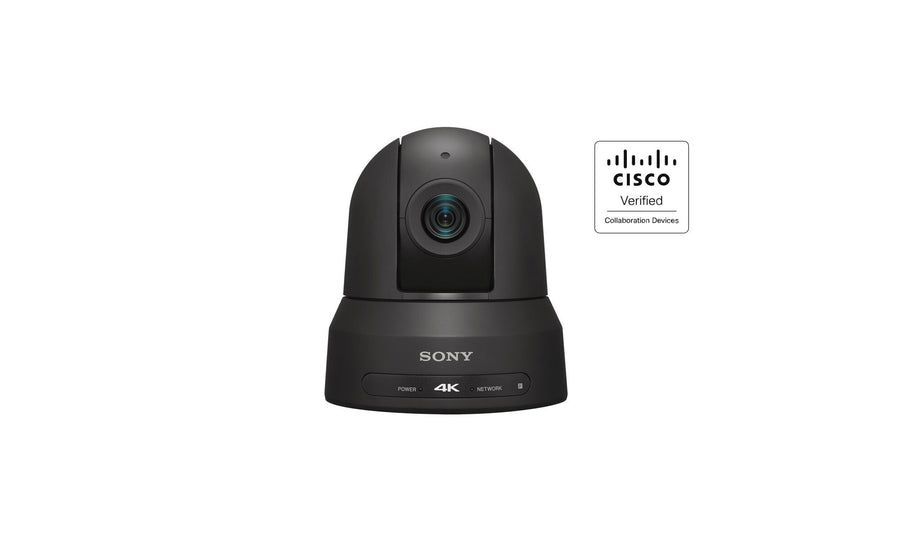

Sony 4K IP PTZ Conference Camera with 30x Zoom – BRC-X400
The Sony BRC-X400 is a 4K IP PTZ camera for conference rooms, classrooms and live streaming setups. It offers 30x optical zoom with clear image zoom, 4K UHD output over HDMI, and NDI|HX capability with an optional licence. Procure.ae supplies the Sony BRC-X400 across the UAE.
The BRC-X400 uses a 1/2.5-type Exmor R CMOS sensor with approximately 8.5 megapixels effective and a 30x optical zoom. It offers 30x zoom at 4K with clear image zoom, 40x at HD, and up to 80x at HD with tele convert. Its HDMI output and IP stream reach 3840 x 2160, with a maximum of 60 fps in H.264 and H.265. Pan runs ±170 degrees and tilt from +90 to -20 degrees, with maximum pan and tilt speeds of 300 and 126 degrees per second.
The BRC-X400 suits rooms where one camera feeds a video conferencing platform, a recorder and a network stream at the same time. It supports three multi-streams to up to five clients, and audio is embedded in both the baseband video and the IP stream. It accepts VISCA RS-422 and VISCA over IP control, and its RJ-45 ports include S700PTP. It runs on DC 12 V or PoE+ and mounts to a ceiling with the supplied brackets.
Resolution
3840 x 2160 (4K UHD)
Speed
Pan 1.1 to 101°/s; tilt 1.1 to 91°/s
Type
PTZ Camera
Weight
1.8 kg
- 4K UHD output
- 30x optical zoom
- NDI|HX capability
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD output
3840 x 2160 over HDMI and IP streaming.
02
30x optical zoom
4K with clear image zoom, and 40x at HD.
03
NDI|HX capability
available with a licence sold separately.
04
IP streaming
up to 3840 x 2160 at 60 fps in H.264 or H.265.
05
Multi streaming
three streams to up to five clients.
06
Baseband outputs
3G-SDI and HDMI with embedded audio.
07
Microphone inputs
two 3.5 mm inputs with mic or line selection.
08
PoE+ or DC power
DC 12 V or PoE+ (IEEE 802.3at compliant).
Specifications
22 specificationsGeneral
Key Features4K UHD output, 30x optical zoom with clear image zoom, NDI|HX (license sold separately), IP streaming, 3G-SDI and HDMI outputs, PoE+ power, ceiling mount
ModelBRC-X400
TypePTZ Camera
What's in the BoxAC power adaptor and cord, IR remote commander, ceiling brackets (2), wire rope, M3 and M2.6 screws, HDMI cable fixing plate, warranty
Display
Camera1/2.5-type Exmor R CMOS, approx. 8.5 MP effective
Resolution3840 x 2160 (4K UHD)
Viewing Angleapprox. 70° horizontal (wide)
Zoom30x optical (4K with clear image zoom); 40x HD with clear image zoom; up to 80x HD with tele convert
Performance
SpeedPan 1.1 to 101°/s; tilt 1.1 to 91°/s
Storage Conditions-20 to +60 °C
Audio
Audio In3.5 mm mini-phone × 2 (mic / line selectable)
Connectivity
Data Rate512 kbps to 50 Mbps (IP stream)
Input VoltageDC 10.8 to 13.2 V
PoEPoE+ (IEEE 802.3at compliant)
PortsHDMI × 1, 3G-SDI × 1, IP streaming (RJ-45) × 1, VISCA IN/OUT RJ-45, S700PTP RJ-45, external sync BNC × 1
ProtocolsIPv4, IPv6, HTTP, HTTPS, RTP/RTCP, RTSP, UPnP, VISCA over IP
Power
Power Consumption25.5 W max
Physical
ColorWhite / Black
Dimensions158.4 x 177.5 x 200.2 mm
MountingCeiling mount (with ceiling bracket); tripod 1/4-20 UNC
Operating Temperature0 to 40 °C
Weight1.8 kg
Downloads
Manufacturer documents for the Sony 4K IP PTZ Conference Camera with 30x Zoom – BRC-X400 — datasheets, manuals, drawings and certificates.
- Datasheet – BRC-X400
- User manual – Sony (covers 13 models)
- User manual – Sony BRC-X400 / SRG-X120 / SRG-X400
- User manual – Sony (covers 12 models)
- User manual – Sony (covers 11 models)
- SRT Introduction V1.0
- Image Delay Time BRC-X400 Series 20200225
- NDI HX Introduction V1.0
- BRC-X400 SRG-X400 SRG-X120 Safety-Regulation
- BRC SRG List-of-Verified-IEEE-802.3-at-Power-Sourcing-Equipment V1.0
- BRC-X1000 X400 series integration manual CameraTrackingFunction v1.0
- ToDistributebyRTMPS Eng1
- EU BATTERY FLYER 50819240M
- BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 CGI Command List E7761001M
- BRC-X400 - X401 - SRG-X400 - X402 - 201M2 - X120 - HD1M2 VISCA Command List E0421001M
Questions
Can’t find your answer? Ask on WhatsApp
Does the Sony BRC-X400 support 4K?
Yes. The BRC-X400 outputs 4K UHD at 29.97p, 25p and 23.98p over HDMI and as an IP stream. Its 3G-SDI and HD outputs cover 1080p and 720p. The camera also supports 4K IP streaming at up to 3840 x 2160 for network workflows.
Do I need a licence for NDI|HX?
Yes. NDI|HX capability requires a licence that is sold separately from the camera, so include it in the order for NDI workflows. Procure.ae can advise on licence details before the order is placed, so the NDI workflow is ready at installation.
How many streams and clients does the BRC-X400 support?
It supports three multi-streams and up to five clients at the same time. IP video reaches 3840 x 2160 at a maximum of 60 fps in H.264 and H.265, with a bitrate range of 512 kbps to 50 Mbps.
Can the BRC-X400 be controlled by a control system?
Yes. It supports VISCA over IP and VISCA RS-422, plus S700PTP on its RJ-45 port and IR remote control. Up to 256 preset positions are available over CGI, or 100 over VISCA.
How is the BRC-X400 mounted and powered?
It mounts to a ceiling with the supplied ceiling brackets and wire rope. It runs on DC 12 V (10.8 to 13.2 V) or PoE+ (IEEE 802.3at compliant), and draws up to 25.5 W.
Can I buy the BRC-X400 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
