SMARTMeeting Room SolutionsSKU SMART Chromebox OPS CBM13

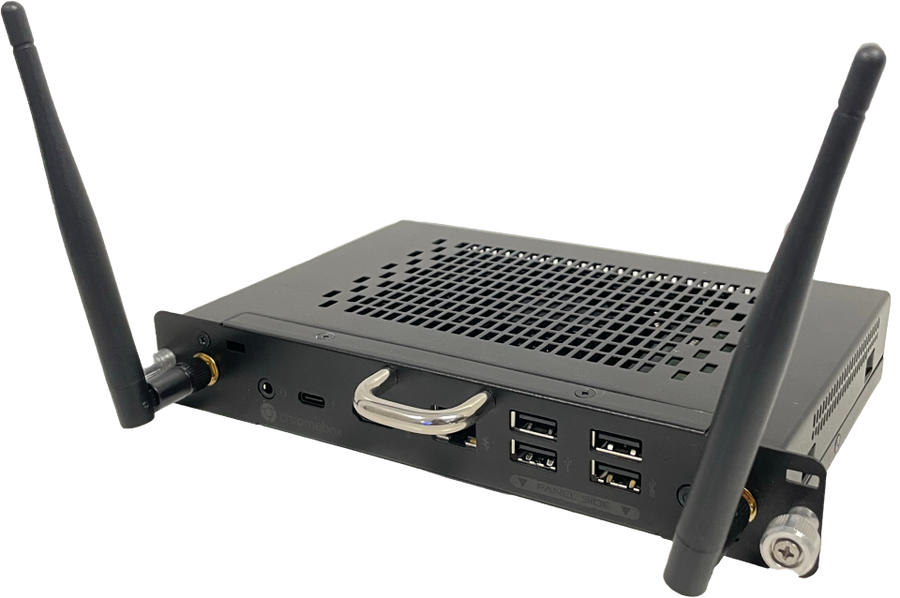

SMART Chromebox OPS CBM13 Slot-in PC – CBM13-i3, CBM13-i5
The SMART Chromebox OPS CBM13 is a slot-in OPS computer module from SMART, available as the CBM13-i3 (Intel Core i3 1315U) or the CBM13-i5 (Intel Core i5 1335U). It has 8 GB DDR4 memory, a 256 GB NVMe SSD and 4K UHD output at 60 Hz on Chrome OS. Procure.ae supplies the CBM13 across the UAE, with delivery and installation.
The module runs Chrome OS under a Chrome OS license. Intel UHD Graphics provide full 4K UHD video at 60 Hz, and integrated HD audio sits alongside a Gigabit Ethernet LAN port. Wireless is Intel, with 2.4 GHz, 5 GHz and 6 GHz support, IEEE 802.11ax (Wi-Fi 6E) and Bluetooth 5.3, using two antennas. Memory is 8 GB DDR4 and storage is a 256 GB M.2 NVMe SSD on both models.
Ports include a stereo 3.5 mm jack, a USB Type-C port, an HDMI 2.1 port, an RJ45 port, two USB 2.0 Type-A and two USB 3.2 Gen 1 Type-A ports. The module draws 12 V to 19 V DC, with typical consumption of 90 W and standby below 0.5 W. It weighs 1.0 kg and measures 200 x 140 x 30 mm. The two models differ only in processor, as the specifications show.
Resolution
3840 x 2160 (4K UHD) at 60 Hz
Type
OPS Slot-in PC
Weight
1.0 kg
- Intel Core processors
- Full 4K UHD output
- Memory and storage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core processors
CBM13-i3 uses an Intel Core i3 1315U and CBM13-i5 uses an Intel Core i5 1335U.
02
Full 4K UHD output
Intel UHD Graphics output full 4K UHD video at 60 Hz.
03
Memory and storage
8 GB DDR4 memory and a 256 GB M.2 NVMe SSD on both models.
04
Wi-Fi 6E and Bluetooth
Intel wireless with IEEE 802.11ax (Wi-Fi 6E) and Bluetooth 5.3, using two antennas.
05
Gigabit networking
A Gigabit Ethernet LAN port with an RJ45 connector.
06
Port selection
Includes HDMI 2.1, USB-C, stereo 3.5 mm, two USB 2.0 and two USB 3.2 Gen 1 Type-A ports.
07
Low standby power
Typical power consumption is 90 W, and standby power is below 0.5 W.
08
Chrome OS
Runs on a Chrome OS license, as the manufacturer states.
Specifications
22 specificationsGeneral
ModelSMART Chromebox OPS CBM13
TypeOPS Slot-in PC
Display
Resolution3840 x 2160 (4K UHD) at 60 Hz
Performance
GraphicsIntel UHD Graphics
Operating SystemChrome OS (Chrome OS license)
ProcessorCBM13-i3: Intel Core i3 1315U; CBM13-i5: Intel Core i5 1335U
RAM8 GB DDR4
Storage256 GB M.2 NVMe SSD
Audio
AudioHD audio, stereo 3.5 mm
Connectivity
Antenna2
BluetoothBluetooth 5.3
EthernetGigabit Ethernet (RJ45)
Input Voltage12 V to 19 V DC
OPS SlotSlot-in OPS computing module
PortsHDMI 2.1 × 1, USB-C × 1, USB 3.2 Gen 1 Type-A × 2, USB 2.0 Type-A × 2, RJ45 × 1, Stereo 3.5 mm × 1
Wi-FiWi-Fi 6E (IEEE 802.11ax), 2.4 / 5 / 6 GHz
Power
Power Consumption90 W (typical), under 0.5 W standby
Physical
Dimensions200 x 140 x 30 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Weight1.0 kg
Compliance
CertificationsCE, REACH, RoHS, Battery, Packaging, POP
Downloads
Manufacturer documents for the SMART Chromebox OPS CBM13 Slot-in PC – CBM13-i3, CBM13-i5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the difference between the CBM13-i3 and CBM13-i5?
The CBM13-i3 uses an Intel Core i3 1315U and the CBM13-i5 uses an Intel Core i5 1335U. Both models have 8 GB DDR4 memory, a 256 GB NVMe SSD, Intel UHD Graphics and Wi-Fi 6E with Bluetooth 5.3.
Does the CBM13 support 4K video?
Yes, the module supports full 4K UHD video at 60 Hz through Intel UHD Graphics. The manufacturer lists 4K UHD video output at 60 Hz, so check that your display accepts 4K at 60 Hz before ordering.
What operating system does the CBM13 run?
The CBM13 runs Chrome OS under a Chrome OS license, as the manufacturer states. The manufacturer's specifications do not state a Chrome OS version, so Procure.ae can confirm the current version before you order.
What power supply does the CBM13 need?
The module needs 12 V to 19 V DC and has a typical power consumption of 90 W, with standby below 0.5 W. The manufacturer's specifications do not state whether a power adapter is included, so confirm that with Procure.ae before ordering.
Can I buy the SMART Chromebox OPS CBM13 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
