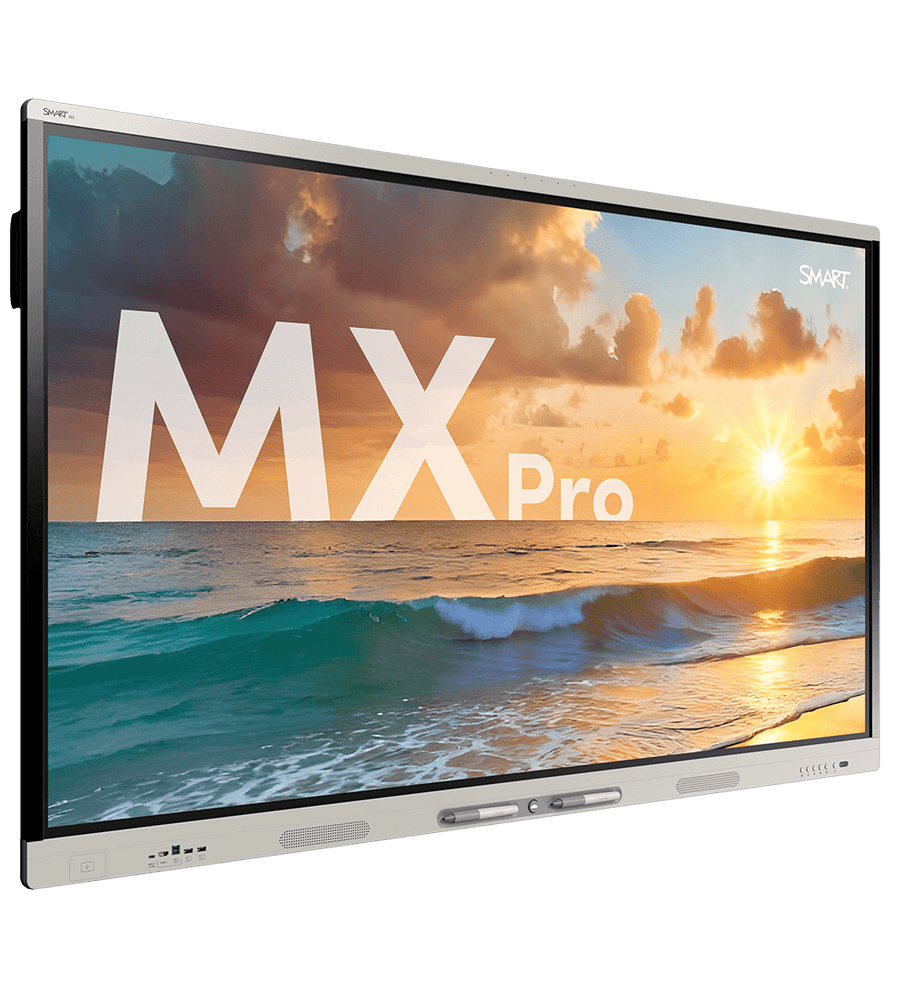

SMART Board MX086-V5 Pro interactive display
The SMART Board MX086-V5 Pro interactive display is a interactive flat panel available in the UAE from Procure.ae.
Transform your workplace or classroom with the SMART Board MX086-V5 Pro interactive display , the ultimate solution for collaborative presentations and dynamic teaching. Designed with an expansive 86-inch touchscreen, this interactive display offers seamless 4K UHD clarity, delivering lifelike visuals for engaging meetings and lessons. The SMART Board MX086-V5 Pro supports multi-touch capabilities , allowing multiple users to interact simultaneously, making brainstorming and teamwork more efficient. With built-in wireless connectivity , you can easily share content from any device,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Display
- Multi-Touch Technology
- Integrated Wireless Connectivity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Display
Delivers ultra-clear visuals with vibrant colors for presentations and lessons.
02
Multi-Touch Technology
Supports up to 20 simultaneous touch points for group collaboration.
03
Integrated Wireless Connectivity
Effortlessly connect devices for seamless content sharing.
04
Anti-Glare Glass Surface
Ensures optimal visibility, even in brightly lit rooms.
05
Windows Ink Compatibility
Enables natural handwriting and annotation directly on the screen.
06
Robust Collaboration Tools
Supports video conferencing, digital whiteboarding, and screen mirroring.
07
Remote Management Capabilities
Simplifies IT tasks and software updates from a central location.
08
Energy-Efficient Design
Reduces power consumption for sustainable operation.
Specifications
47 specificationsGeneral
Key FeaturesPalm rejection, Pen and touch differentiation, NFC card reader, Sensors: Proximity, Ambient light, Infrared
What's in the BoxPower cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1, Pens × 2, Remote control × 1, AAA batteries × 2, Wi-Fi/Bluetooth antennas × 2, Installation instructions × 1, Important information document × 1
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time≤ 5 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 15
ProcessorOcta-core
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort 1.2 × 2
Microphone6-mic array
Speaker Output2 × 20 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.1) × 4
HDMI OutputsHDMI Out × 1
OPS SlotOptional
SD Card SlotmicroSD card slot × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB 2.0 × 2
USB PortsUSB 3.2 Gen 1 × 4, USB 2.0 × 1
USB-C PortsUSB-C (USB 2.0, DP 1.2 in, 27 W charging, 65 W charging)
VGA InputVGA × 1 (Rear)
Wi-FiWi-Fi 6E (802.11ax), 2.4/5/6 GHz
Power
Power Consumption149 W
Standby Power0.2 W
Physical
Dimensions1962 x 1199 x 89 mm
Operating Humidity5% to 80% RH
Operating Temperature5°C to 35°C
Shipping Dimensions2165 x 1445 x 160 mm
Shipping Weight94 kg
Surface ProtectionHeat-tempered, anti-glare, anti-fingerprint glass
VESA Mount800 x 600 mm
Weight68 kg
Downloads
Manufacturer documents for the SMART Board MX086-V5 Pro interactive display — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board MX (V5) Pro series
- Datasheet – SMART Board MX (V5) Pro series / Board MX (V5) Pro series with iQ TAA – specssbidmx000v5pw
- Datasheet – SMART Board MX (V5) Pro series / Board MX (V5) Pro series with iQ TAA – specssbidmx200v5pw
- Brochure – SMART Board MX (V5) Pro series
- User manual – SMART Board MX (V5) Pro series / Board MX (V5) Pro series with iQ TAA / Board MX (V5) series
- Installation guide – SMART Board MX (V5) Pro series / Board MX (V5) Pro series with iQ TAA / Board MX (V5) series
Questions
Can’t find your answer? Ask on WhatsApp
What is the SMART interactive flat panel used for?
Transform your workplace or classroom with the SMART Board MX086-V5 Pro interactive display , the ultimate solution for collaborative presentations and dynamic teaching. Designed with an expansive 86-inch touchscreen, this interactive display offers seamless 4K UHD clarity, delivering lifelike.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 13, so you can open apps, whiteboard, and browse without a separate computer.
