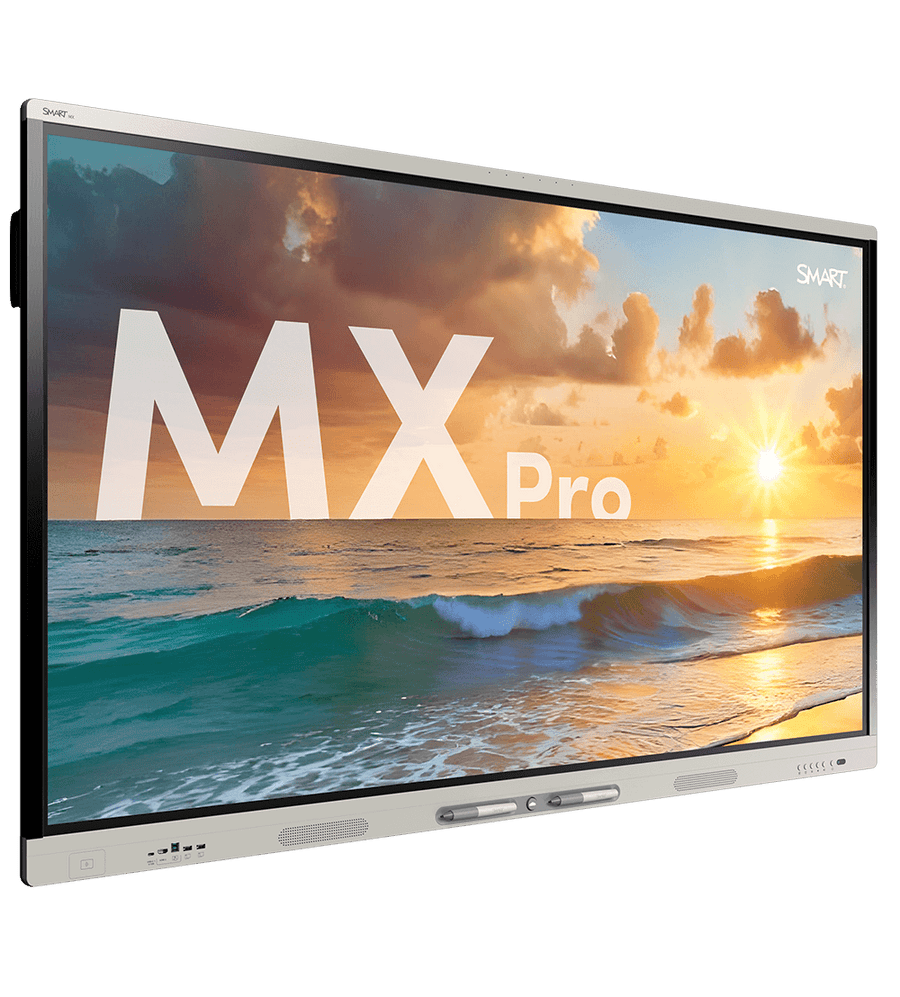

SMART Board MX086-V5 Pro interactive display
The SMART Board MX086-V5 Pro interactive display is a interactive flat panel available in the UAE from Procure.ae.
Transform your workplace or classroom with the SMART Board MX086-V5 Pro interactive display , the ultimate solution for collaborative presentations and dynamic teaching. Designed with an expansive 86-inch touchscreen, this interactive display offers seamless 4K UHD clarity, delivering lifelike visuals for engaging meetings and lessons. The SMART Board MX086-V5 Pro supports multi-touch capabilities , allowing multiple users to interact simultaneously, making brainstorming and teamwork more efficient. With built-in wireless connectivity , you can easily share content from any device,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key features
Specifications
| Key Features | Palm rejection, Pen and touch differentiation, NFC card reader, Sensors: Proximity, Ambient light, Infrared |
| What's in the Box | Power cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1, Pens × 2, Remote control × 1, AAA batteries × 2, Wi-Fi/Bluetooth antennas × 2, Installation instructions × 1, Important information document × 1 |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Color Depth | 10-bit (1.07 billion colours) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | ±1 mm |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | ≤ 5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating System | Android 15 |
| Processor | Octa-core |
| RAM | 8 GB |
| Storage | 64 GB |
| Audio In | Audio in × 1 |
| Audio Out | Audio out × 1 |
| DisplayPort | DisplayPort 1.2 × 2 |
| Microphone | 6-mic array |
| Speaker Output | 2 × 20 W |
| Speaker Type | Built-in |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ45 (Gigabit) × 2 |
| HDMI Inputs | HDMI In (HDMI 2.1) × 4 |
| HDMI Outputs | HDMI Out × 1 |
| OPS Slot | Optional |
| SD Card Slot | microSD card slot × 1 |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB 2.0 × 2 |
| USB Ports | USB 3.2 Gen 1 × 4, USB 2.0 × 1 |
| USB-C Ports | USB-C (USB 2.0, DP 1.2 in, 27 W charging, 65 W charging) |
| VGA Input | VGA × 1 (Rear) |
| Wi-Fi | Wi-Fi 6E (802.11ax), 2.4/5/6 GHz |
| Power Consumption | 149 W |
| Standby Power | 0.2 W |
| Dimensions | 1962 x 1199 x 89 mm |
| Operating Humidity | 5% to 80% RH |
| Operating Temperature | 5°C to 35°C |
| Shipping Dimensions | 2165 x 1445 x 160 mm |
| Shipping Weight | 94 kg |
| Surface Protection | Heat-tempered, anti-glare, anti-fingerprint glass |
| VESA Mount | 800 x 600 mm |
| Weight | 68 kg |
