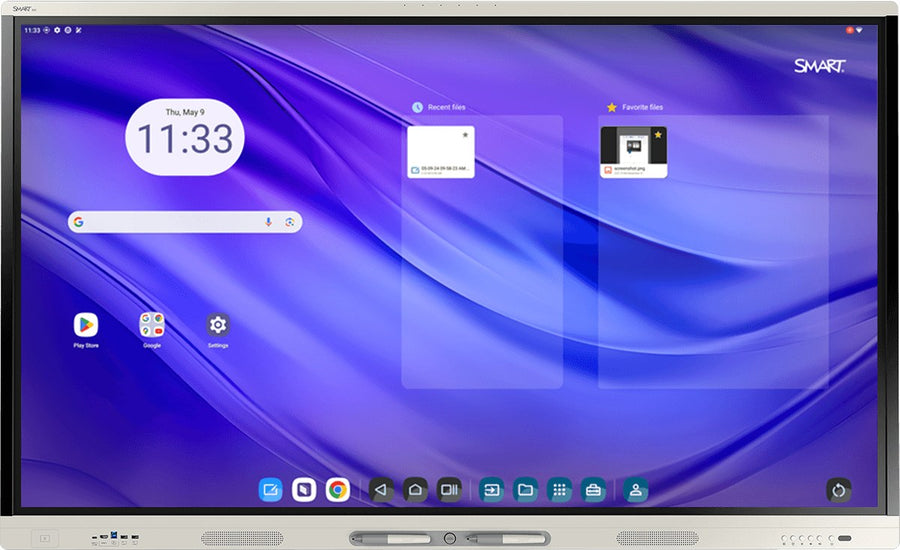

SMART Board MX (V5) Pro 86-inch Interactive Flat Panel – MX086-V5-PW

Name: SMART Board MX (V5) Pro 86-inch Interactive Flat Panel – MX086-V5-PW
Brand: SMART
SKU: MX086-V5-PW
Availability: InStock

The SMART Board MX (V5) Pro 86-inch is a 4K UHD interactive flat panel for boardrooms, lecture halls and training rooms. It has 50-point touch, Android 15 with automatic updates to Android 17, and two 20 W speakers. Procure.ae supplies the MX086-V5-PW across the UAE, with delivery and installation.

The 86-inch panel has a 3840 x 2160 resolution, 400 nits brightness, a 178° viewing angle and an LED backlight. HyPr Touch with Advanced IR supports up to 50 touch points, with 1 mm accuracy and a typical touch response of 5 ms. It recognises simultaneous tool differentiation and object awareness, and two pens and magnetic, frame-mounted tool holders are included. An integrated linear six-microphone array with onboard acoustic echo cancellation supports calls and presentations.

Inside, the panel has an octa-core CPU, 8 GB DDR4 memory and 64 GB storage, running Android 15 with over-the-air updates. An OPS PC accessory slot and support for SMART PCM modules let a computing module be added. Wired connectivity includes two RJ45 ports, and wireless covers Wi-Fi 6E (802.11ax) and Bluetooth 5.2. The ports cover USB-C, USB 3.2 Gen 1, VGA, RS-232 and S/PDIF optical. At 86 inches the panel draws 149 W typical and mounts to VESA M8 800 x 600 mm.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits

Touch Technology

HyPr Touch with Advanced IR

4K UHD panel
50-point touch
Android 15 platform

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

4K UHD panel

3840 x 2160 resolution at 400 nits, with a 178° viewing angle.

50-point touch

HyPr Touch with Advanced IR supports up to 50 touch points, depending on the operating system.

Android 15 platform

Octa-core CPU, 8 GB DDR4 memory and 64 GB storage.

Automatic updates

Over-the-air updates, with an automatic update path to Android 17.

Six-microphone array

Integrated linear array with onboard acoustic echo cancellation.

Integrated audio

Two integrated 20 W speakers.

Computing and I/O

OPS PC accessory slot, SMART PCM module support, RJ45 LAN in and out, VGA and RS-232.

Wireless connectivity

Wi-Fi 6E (802.11ax) with tri-band antennas and Bluetooth 5.2.

Specifications

37 specifications

General

Key Features4K UHD, 50-point touch, Android 15, automatic updates to Android 17, six-microphone array, 2 x 20 W speakers, SMART OPS support, Wi-Fi 6E

ModelMX086-V5-PW

TypeInteractive Flat Panel

What's in the Box2 pens, remote control, 5 m USB 2.0 A to B cable, 2 external antennas

Display

Aspect Ratio16:9

BacklightLED

Brightness400 nits

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Screen Size86 inch

Touch Accuracy1 mm

Touch Points50-point multi-touch

Touch Response Time5 ms

Touch TechnologyHyPr Touch with Advanced IR

Viewing Angle178°

Performance

LicenseRoom licence and 10 personal licences

Operating SystemAndroid 15

ProcessorOcta-core CPU

RAM8 GB

Storage64 GB

Storage Conditions-20 to 60 °C

Audio

MicrophoneIntegrated linear six-microphone array with echo cancellation

Speaker Output2 x 20 W

Connectivity

BluetoothBluetooth 5.2

EthernetRJ45 1000BASE-T (x2)

Input Voltage100–240 V AC, 50/60 Hz

PortsUSB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1

Wi-FiWi-Fi 6E (802.11ax)

Power

Power Consumption149 W (typical)

Standby Power0.2 W

Physical

ColorWhite

Dimensions1962 x 1199 x 89 mm (W x H x D)

Operating Humidity5% to 80% RH, non-condensing

Operating Temperature5 to 35 °C

VESA Mount800 x 600 mm

Weight68 kg

Compliance

CertificationsCE, UKCA, ENERGY STAR, HDMI, HDCP, EPEAT

Downloads

Manufacturer documents for the SMART Board MX (V5) Pro 86-inch Interactive Flat Panel – MX086-V5-PW — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What size and resolution is the SMART Board MX086-V5-PW?

It is an 86-inch interactive flat panel with a 3840 x 2160 (4K UHD) resolution and a 16:9 aspect ratio. The screen is rated at 400 nits brightness and a 178° viewing angle, with LED backlighting.

Does the MX086-V5-PW need a special wall mount?

Yes, it mounts by VESA M8 at 800 x 600 mm. The manufacturer's specifications do not list a wall-mount bracket among the included items, so confirm the mounting kit with Procure.ae before installation.

Can I connect a laptop or PC to the MX086-V5-PW?

Yes. USB-C ports carry 4K at 60 Hz DisplayPort video, with touch and digital audio on the DisplayPort 1.2 port. Two RJ45 ports, USB 3.2 Gen 1 Type-A and Type-B ports and an OPS PC accessory slot give further connection options.

How many touch points does the MX086-V5-PW support and how accurate is it?

It supports up to 50 touch points, depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms. Simultaneous tool differentiation and object awareness are also supported.

Is the MX086-V5-PW suitable for a large boardroom or lecture hall?

Yes, for rooms that need a large screen. The 86-inch 4K panel has 400 nits brightness and two 20 W speakers, and the six-microphone array supports echo-cancelled audio. Procure.ae can confirm room layout and viewing distance before quoting.

Can I buy the MX086-V5-PW in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
