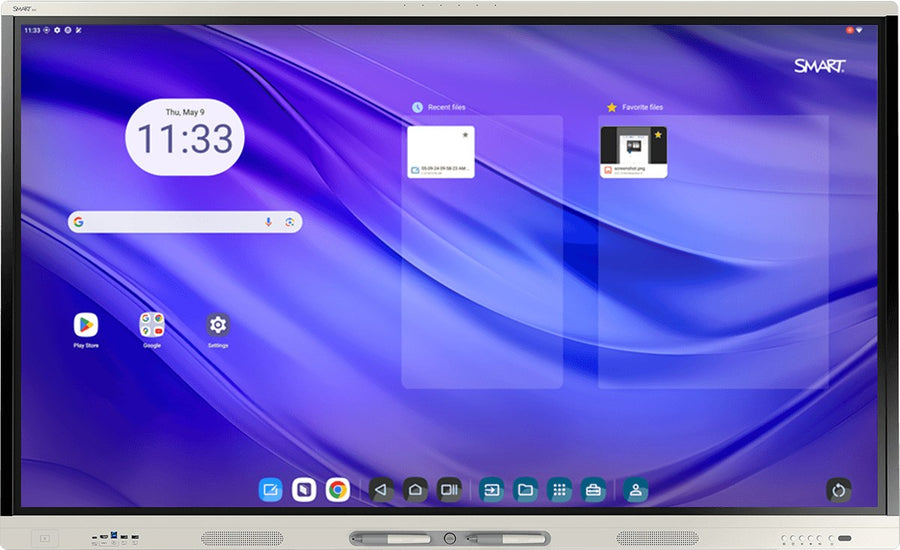

SMART Board MX (V5) Pro 86-inch Interactive Flat Panel – MX086-V5-PW
The SMART Board MX (V5) Pro 86-inch is a 4K UHD interactive flat panel for boardrooms, lecture halls and training rooms. It has 50-point touch, Android 15 with automatic updates to Android 17, and two 20 W speakers. Procure.ae supplies the MX086-V5-PW across the UAE, with delivery and installation.
The 86-inch panel has a 3840 x 2160 resolution, 400 nits brightness, a 178° viewing angle and an LED backlight. HyPr Touch with Advanced IR supports up to 50 touch points, with 1 mm accuracy and a typical touch response of 5 ms. It recognises simultaneous tool differentiation and object awareness, and two pens and magnetic, frame-mounted tool holders are included. An integrated linear six-microphone array with onboard acoustic echo cancellation supports calls and presentations.
Inside, the panel has an octa-core CPU, 8 GB DDR4 memory and 64 GB storage, running Android 15 with over-the-air updates. An OPS PC accessory slot and support for SMART PCM modules let a computing module be added. Wired connectivity includes two RJ45 ports, and wireless covers Wi-Fi 6E (802.11ax) and Bluetooth 5.2. The ports cover USB-C, USB 3.2 Gen 1, VGA, RS-232 and S/PDIF optical. At 86 inches the panel draws 149 W typical and mounts to VESA M8 800 x 600 mm.
Key features
Specifications
| Key Features | 4K UHD, 50-point touch, Android 15, automatic updates to Android 17, six-microphone array, 2 x 20 W speakers, SMART OPS support, Wi-Fi 6E |
| Model | MX086-V5-PW |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A to B cable, 2 external antennas |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 50-point multi-touch |
| Touch Response Time | 5 ms |
| Touch Technology | HyPr Touch with Advanced IR |
| Viewing Angle | 178° |
| License | Room licence and 10 personal licences |
| Operating System | Android 15 |
| Processor | Octa-core CPU |
| RAM | 8 GB |
| Storage | 64 GB |
| Storage Conditions | -20 to 60 °C |
| Microphone | Integrated linear six-microphone array with echo cancellation |
| Speaker Output | 2 x 20 W |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ45 1000BASE-T (x2) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | USB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1 |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Power Consumption | 149 W (typical) |
| Standby Power | 0.2 W |
| Color | White |
| Dimensions | 1962 x 1199 x 89 mm (W x H x D) |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| VESA Mount | 800 x 600 mm |
| Weight | 68 kg |
| Certifications | CE, UKCA, ENERGY STAR, HDMI, HDCP, EPEAT |
