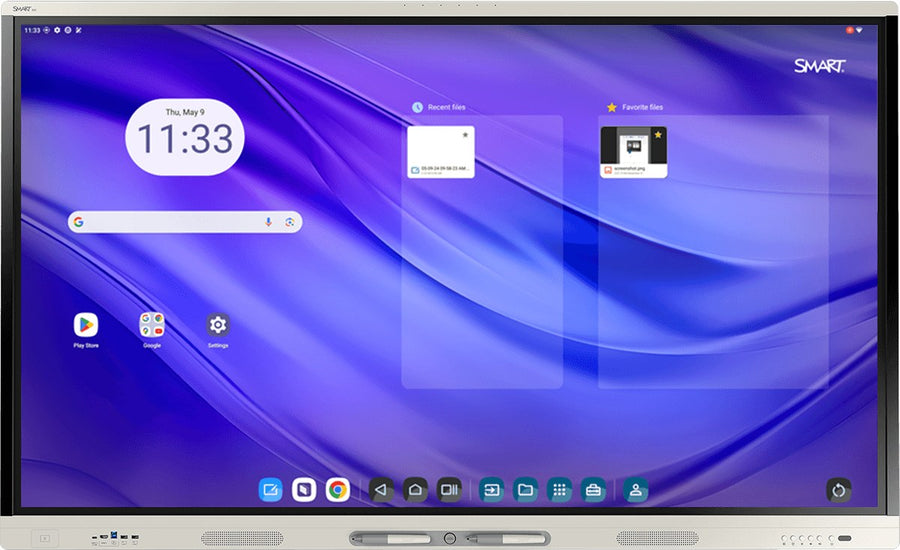

SMART Board MX065-V5-PW 65-inch interactive flat panelSMART

SMART Board MX (V5) Pro 65-inch 4K UHD Interactive Flat Panel – MX065-V5-PW

The SMART Board MX065-V5-PW is a 65-inch 4K UHD interactive flat panel from the SMART Board MX (V5) Pro series. It has a 16:9 LED display at 400 nits, up to 50-point touch and Android 15 built in, with a rear OPS slot for SMART PCM modules. It suits classrooms and meeting rooms, and Procure.ae supplies it across the UAE.

The MX065-V5-PW uses HyPr Touch with Advanced IR, which supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms or less. Simultaneous tool differentiation and Object Awareness support more than one tool in use at the same time. The 3840 × 2160 display runs at 60 Hz with a 178° viewing angle. Two 20 W integrated speakers and a linear six-microphone array with onboard acoustic echo cancellation are built in for presentations and calls.

Android 15 provides a personalised home screen, split screen, picture-in-picture with touch pass-through, with an automatic update path to Android 17. For connections, the rear panel has an OPS slot, a USB-C port for 4K at 60 Hz over DisplayPort 1.4a and RJ45 LAN ports, and the panel includes Wi-Fi 6E and Bluetooth 5.2. Against the 55-inch model, this version has 400-nit brightness, 20 W speakers and a wider 600 × 400 mm VESA pattern. The M8 VESA pattern of 600 × 400 mm supports wall mounting.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
  • Infrared touch
  • 4K UHD display
  • Android 15 platform
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Infrared touch
HyPr Touch with Advanced IR gives up to 50 touch points (OS dependent) at 1 mm accuracy.
02
4K UHD display
3840 × 2160 LED panel with 400 nits, a 178° viewing angle and 60 Hz refresh.
03
Android 15 platform
Octa-core CPU, 8 GB DDR4 memory and 64 GB storage (up to 576 GB).
04
Pen input
Two pens ship with the panel, with magnetic and frame-mounted tool holders and simultaneous tool differentiation.
05
Built-in audio
Two 20 W integrated speakers and a six-microphone array with onboard echo cancellation.
06
Connectivity
Wi-Fi 6E, Bluetooth 5.2, RJ45 1000BASE-T ports and a rear OPS slot for SMART PCM modules.
07
Multi-window
Split screen and picture-in-picture with touch pass-through.
08
Wall mounting
M8 VESA pattern of 600 × 400 mm.

Specifications

43 specifications
General
ControlsPower, Home, Volume, input select, screen shade, freeze frame
Key FeaturesSimultaneous tool differentiation, Object Awareness, Picture-in-picture with touch pass-through, Split screen, Six-microphone array, Automatic OTA updates, Rear OPS slot, Wi-Fi 6E
ModelMX065-V5-PW
TypeInteractive Flat Panel
What's in the Box2 pens, remote control, 2 external Wi-Fi and Bluetooth antennas, 5 m USB 2.0 A-to-B cable, room license, 10 personal licenses
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Touch Accuracy1 mm
Touch PointsUp to 50-point multi-touch (OS dependent)
Touch Response Time≤ 5 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 15 (automatic OTA update to Android 17)
ProcessorOcta-core
RAM8 GB DDR4
Storage64 GB (up to 576 GB)
Storage Conditions-20 to 60 °C
Audio
Audio Out3.5 mm stereo, S/PDIF optical
MicrophoneLinear six-microphone array with onboard echo cancellation
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.2 (dual mode)
EthernetRJ45 1000BASE-T (×2)
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (rear), for SMART PCM modules
PortsUSB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 LAN × 2
SD Card SlotmicroSD (rear, with security cover)
Serial PortRS-232 (DB-9)
Wi-FiIEEE 802.11ax (Wi-Fi 6E), tri-band
Power
Power Consumption90 W (typical), 0.2 W standby
Physical
ColorWhite
Dimensions1507 x 928 x 89 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions1620 x 1165 x 160 mm (including pallet)
Shipping Weight56 kg
Surface ProtectionFull heat-tempered, anti-glare, anti-fingerprint, bonded glass
VESA Mount600 x 400 mm
Weight40 kg
Compliance
CertificationsCE, UKCA, RoHS, REACH, ENERGY STAR, EPEAT, HDCP

Questions

Can’t find your answer? Ask on WhatsApp

What is the SMART Board MX065-V5-PW?
It is a 65-inch 4K UHD interactive flat panel from the SMART Board MX (V5) Pro series. It has a 16:9 LED display, up to 50-point touch and built-in Android 15, and suits classrooms and meeting rooms for shared work on the screen.
Does the MX065-V5-PW run its own operating system?
Yes. It runs Android version 15 on an octa-core CPU with 8 GB DDR4 memory and 64 GB storage, with a personalised home screen, file and app libraries, and an automatic over-the-air update path to Android 17.
Can I connect a computer to the MX065-V5-PW?
Yes. A rear OPS slot takes SMART PCM modules, and a rear USB-C port accepts 4K at 60 Hz over DisplayPort 1.4a. Two RJ45 LAN ports, Wi-Fi 6E and Bluetooth 5.2 are also built in for network and wireless connections.
Can the MX065-V5-PW be wall mounted?
Yes. The 65-inch model uses an M8 VESA pattern of 600 × 400 mm, so it mounts on any bracket that matches that pattern. It weighs 40 kg, so check the bracket load rating before installation. Procure.ae can arrange installation across the UAE.
How many touch points does the MX065-V5-PW support?
It supports up to 50 touch points, depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms or less. Two pens are included, and simultaneous tool differentiation is supported.
