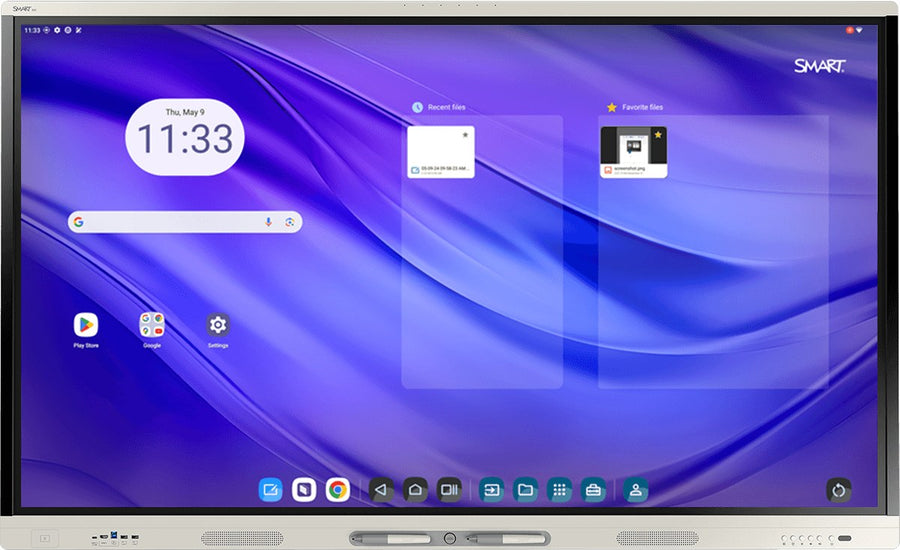

SMART Board MX (V5) Pro 65-inch 4K UHD Interactive Flat Panel – MX065-V5-PW
The SMART Board MX065-V5-PW is a 65-inch 4K UHD interactive flat panel from the SMART Board MX (V5) Pro series. It has a 16:9 LED display at 400 nits, up to 50-point touch and Android 15 built in, with a rear OPS slot for SMART PCM modules. It suits classrooms and meeting rooms, and Procure.ae supplies it across the UAE.
The MX065-V5-PW uses HyPr Touch with Advanced IR, which supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms or less. Simultaneous tool differentiation and Object Awareness support more than one tool in use at the same time. The 3840 × 2160 display runs at 60 Hz with a 178° viewing angle. Two 20 W integrated speakers and a linear six-microphone array with onboard acoustic echo cancellation are built in for presentations and calls.
Android 15 provides a personalised home screen, split screen, picture-in-picture with touch pass-through, with an automatic update path to Android 17. For connections, the rear panel has an OPS slot, a USB-C port for 4K at 60 Hz over DisplayPort 1.4a and RJ45 LAN ports, and the panel includes Wi-Fi 6E and Bluetooth 5.2. Against the 55-inch model, this version has 400-nit brightness, 20 W speakers and a wider 600 × 400 mm VESA pattern. The M8 VESA pattern of 600 × 400 mm supports wall mounting.
Key features
Specifications
| Controls | Power, Home, Volume, input select, screen shade, freeze frame |
| Key Features | Simultaneous tool differentiation, Object Awareness, Picture-in-picture with touch pass-through, Split screen, Six-microphone array, Automatic OTA updates, Rear OPS slot, Wi-Fi 6E |
| Model | MX065-V5-PW |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 2 external Wi-Fi and Bluetooth antennas, 5 m USB 2.0 A-to-B cable, room license, 10 personal licenses |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 65 inch |
| Touch Accuracy | 1 mm |
| Touch Points | Up to 50-point multi-touch (OS dependent) |
| Touch Response Time | ≤ 5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Operating System | Android 15 (automatic OTA update to Android 17) |
| Processor | Octa-core |
| RAM | 8 GB DDR4 |
| Storage | 64 GB (up to 576 GB) |
| Storage Conditions | -20 to 60 °C |
| Audio Out | 3.5 mm stereo, S/PDIF optical |
| Microphone | Linear six-microphone array with onboard echo cancellation |
| Speaker Output | 2 × 20 W |
| Bluetooth | Bluetooth 5.2 (dual mode) |
| Ethernet | RJ45 1000BASE-T (×2) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 1 (rear), for SMART PCM modules |
| Ports | USB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 LAN × 2 |
| SD Card Slot | microSD (rear, with security cover) |
| Serial Port | RS-232 (DB-9) |
| Wi-Fi | IEEE 802.11ax (Wi-Fi 6E), tri-band |
| Power Consumption | 90 W (typical), 0.2 W standby |
| Color | White |
| Dimensions | 1507 x 928 x 89 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 1620 x 1165 x 160 mm (including pallet) |
| Shipping Weight | 56 kg |
| Surface Protection | Full heat-tempered, anti-glare, anti-fingerprint, bonded glass |
| VESA Mount | 600 x 400 mm |
| Weight | 40 kg |
| Certifications | CE, UKCA, RoHS, REACH, ENERGY STAR, EPEAT, HDCP |
