SMARTInteractive Flat PanelsSKU MX275P-V5

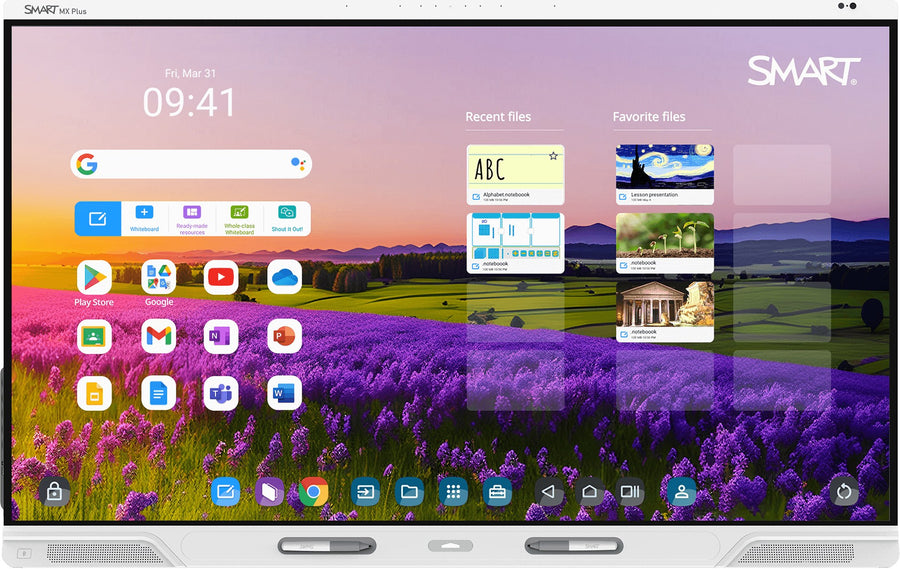

SMART Board MX (V5) Plus 75-inch Interactive Flat Panel – MX275P-V5
The SMART Board MX (V5) Plus 75-inch, model MX275P-V5, is a 4K UHD interactive flat panel with an integrated soundbar, NFC reader and eight-microphone array for classrooms and meeting rooms. It has 490 nits brightness, up to 50 touch points and an embedded Android 15 OS. Procure.ae supplies the MX275P-V5 across the UAE.
The MX275P-V5 is a 75-inch LED display with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, a 60 Hz refresh rate, 490 nits brightness and a 178° viewing angle. Its HyPr Touch Advanced IR system supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a touch response time of 4 ms or less. Silktouch and palm rejection are supported. The integrated soundbar has two 20 W speakers and a 15 W subwoofer, and the eight-microphone array has a visual mute indicator and onboard acoustic echo cancellation.
The Plus models run iQ embedded Android 15, with automatic over-the-air updates to Android 17, and include SMART Mirror, SMART Notebook, SMART Product Drivers and SMART Ink, SMART Remote Management and SMART Control. Compared with the non-Plus MX (V5) models, they add an NFC reader and writer and a 15 W USB-C power delivery port. The MX275P-V5 weighs 56 kg (124 lb) and mounts on a VESA M8 800 x 400 mm pattern.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
490 nits
Touch Technology
Infrared
- 4K UHD display
- HyPr Touch Advanced IR
- Multi-touch input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution on a 75-inch 16:9 LED panel with 490 nits brightness.
02
HyPr Touch Advanced IR
Infrared touch with 1 mm accuracy and a touch response time of 4 ms or less.
03
Multi-touch input
Up to 50 touch points, depending on the operating system.
04
Embedded Android 15
iQ embedded OS with automatic over-the-air updates to Android 17.
05
NFC reader and writer
Integrated RFID reader for ISO 14443A/B, ISO 15693 and NFC Tag 1 to 4.
06
Soundbar audio
Two 20 W speakers and a 15 W subwoofer, with an eight-microphone array.
07
USB-C power delivery
A 15 W USB-C port on the top of the back panel.
08
OPS slot for PC modules
One back slot supports SMART OPS PC modules.
Specifications
42 specificationsGeneral
ApplicationEducation and classroom teaching
Key Features4K UHD (3840 x 2160), 490 nits, up to 50 touch points (OS dependent), iQ embedded Android 15, NFC reader, eight-microphone array, soundbar speakers, 15 W USB-C power delivery
ModelMX275P-V5
TypeInteractive Flat Panel
What's in the Box2 pens, remote control, 5 m USB 2.0 A-to-B cable, 2 external antennas
Display
Aspect Ratio16:9
BacklightLED
Brightness490 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy1 mm
Touch Points50-point multi-touch (OS dependent)
Touch Response Time4 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 15 (iQ embedded), updates to Android 17
ProcessorOcta-core
RAM8 GB
Storage64 GB (up to 576 GB)
Storage Conditions-20 to 60 °C
Audio
MicrophoneIntegrated linear eight-microphone array, visual mute indicator, echo cancellation
Speaker OutputSoundbar: 2 × 20 W + 15 W subwoofer
Connectivity
BluetoothBluetooth 5.2
ConnectivityNFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4)
EthernetRJ45 × 2 (1000BASE-T)
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (back), SMART OPS PC modules
PortsUSB-C × 4 (one with 15 W power delivery), USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm audio out, microSD × 1
Wi-FiWi-Fi 6E (802.11ax)
Power
Power Consumption105 W (typical)
Standby PowerUnder 0.5 W
Physical
ColorWhite
Dimensions1746 x 1078 x 109 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions1895 x 1293 x 180 mm
Shipping Weight67 kg
VESA Mount800 x 400 mm
Weight56 kg
Compliance
CertificationsCE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT
Downloads
Manufacturer documents for the SMART Board MX (V5) Plus 75-inch Interactive Flat Panel – MX275P-V5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the MX275P-V5?
The MX275P-V5 is the 75-inch model in the SMART Board MX (V5) Plus series, also listed by the manufacturer as the SMART Board MX075-V5 Plus interactive display with iQ. It has 490 nits brightness, up to 50 touch points, iQ embedded Android 15 and a 15 W USB-C power delivery port.
Does the MX275P-V5 have NFC?
Yes. It has an integrated RFID NFC reader and writer that supports ISO 14443A/B, ISO 15693 and NFC Tag 1 to 4. The manufacturer notes that CCID mode needs a native operating system driver on Windows, Linux or Mac.
Can the MX275P-V5 take a PC module?
Yes. The back OPS slot accepts SMART OPS PC modules. The manufacturer lists one OPS PC accessory slot on the back of the panel, and the iQ embedded Android 15 OS is built in.
Can the MX275P-V5 be wall mounted?
Yes. It uses a VESA M8 pattern of 800 x 400 mm, and the 75-inch weighs 56 kg (124 lb). Procure.ae provides installation across the UAE. The manufacturer's specifications do not state the mounting kit contents, so Procure.ae can confirm the fixing requirements for your wall.
Which room sizes suit the MX275P-V5?
The manufacturer's specifications do not state a recommended room size for the MX275P-V5. The 75-inch 16:9 panel suits classrooms and meeting rooms, and Procure.ae can advise on viewing distance and placement for your room.
