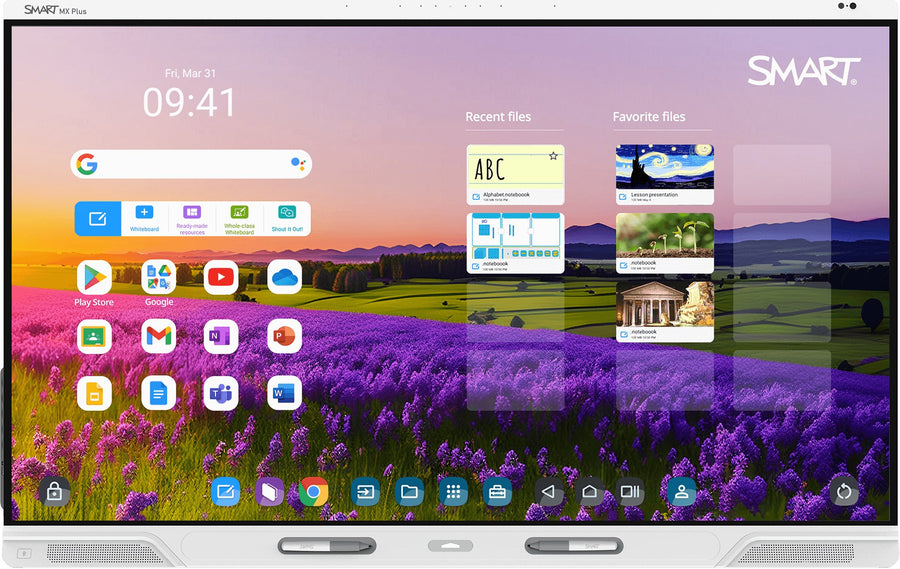

SMART Board MX (V5) Plus 75-inch Interactive Flat Panel – MX275P-V5
The SMART Board MX (V5) Plus 75-inch, model MX275P-V5, is a 4K UHD interactive flat panel with an integrated soundbar, NFC reader and eight-microphone array for classrooms and meeting rooms. It has 490 nits brightness, up to 50 touch points and an embedded Android 15 OS. Procure.ae supplies the MX275P-V5 across the UAE.
The MX275P-V5 is a 75-inch LED display with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, a 60 Hz refresh rate, 490 nits brightness and a 178° viewing angle. Its HyPr Touch Advanced IR system supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a touch response time of 4 ms or less. Silktouch and palm rejection are supported. The integrated soundbar has two 20 W speakers and a 15 W subwoofer, and the eight-microphone array has a visual mute indicator and onboard acoustic echo cancellation.
The Plus models run iQ embedded Android 15, with automatic over-the-air updates to Android 17, and include SMART Mirror, SMART Notebook, SMART Product Drivers and SMART Ink, SMART Remote Management and SMART Control. Compared with the non-Plus MX (V5) models, they add an NFC reader and writer and a 15 W USB-C power delivery port. The MX275P-V5 weighs 56 kg (124 lb) and mounts on a VESA M8 800 x 400 mm pattern.
Key features
Specifications
| Application | Education and classroom teaching |
| Key Features | 4K UHD (3840 x 2160), 490 nits, up to 50 touch points (OS dependent), iQ embedded Android 15, NFC reader, eight-microphone array, soundbar speakers, 15 W USB-C power delivery |
| Model | MX275P-V5 |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A-to-B cable, 2 external antennas |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 490 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 50-point multi-touch (OS dependent) |
| Touch Response Time | 4 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Operating System | Android 15 (iQ embedded), updates to Android 17 |
| Processor | Octa-core |
| RAM | 8 GB |
| Storage | 64 GB (up to 576 GB) |
| Storage Conditions | -20 to 60 °C |
| Microphone | Integrated linear eight-microphone array, visual mute indicator, echo cancellation |
| Speaker Output | Soundbar: 2 × 20 W + 15 W subwoofer |
| Bluetooth | Bluetooth 5.2 |
| Connectivity | NFC reader/writer (ISO 14443A/B, ISO 15693, NFC Tag 1-4) |
| Ethernet | RJ45 × 2 (1000BASE-T) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 1 (back), SMART OPS PC modules |
| Ports | USB-C × 4 (one with 15 W power delivery), USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm audio out, microSD × 1 |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Power Consumption | 105 W (typical) |
| Standby Power | Under 0.5 W |
| Color | White |
| Dimensions | 1746 x 1078 x 109 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 1895 x 1293 x 180 mm |
| Shipping Weight | 67 kg |
| VESA Mount | 800 x 400 mm |
| Weight | 56 kg |
| Certifications | CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT |
