SMART Board MX Pro with iQ TAA 55-inch Interactive Flat Panel – MX555-V5-PW

Name: SMART Board MX Pro with iQ TAA 55-inch Interactive Flat Panel – MX555-V5-PW
Brand: SMART
SKU: MX555-V5-PW
Availability: InStock

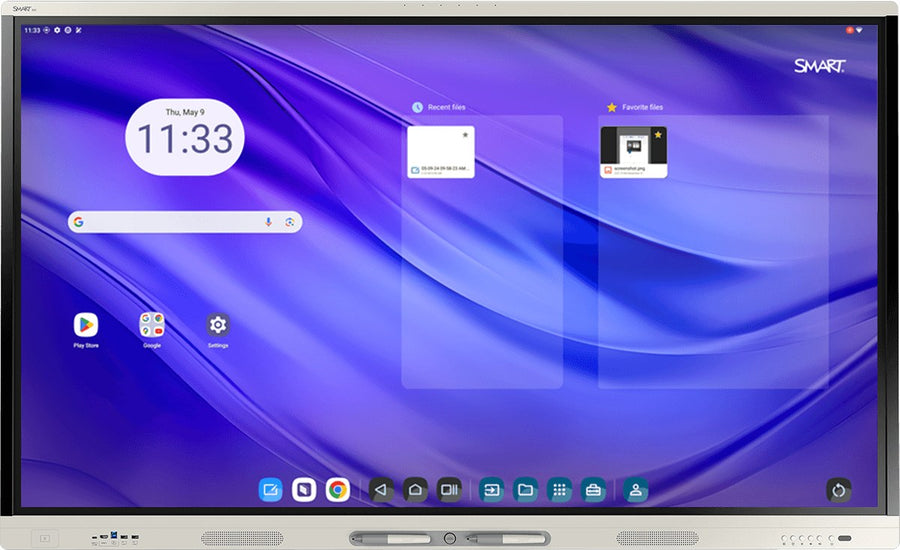

The SMART Board MX555-V5-PW is a 55-inch 4K UHD interactive flat panel from the MX Pro series with iQ, listed as TAA. It runs Android 15, has an integrated six-microphone array and suits classrooms, boardrooms and government offices. Procure.ae supplies it across the UAE.

The MX555-V5-PW has a 3840 x 2160 (4K UHD) LED-backlit panel with anti-fingerprint, anti-glare glass, 300 nits brightness, a 178° viewing angle and an 8 ms display response time. HyPr Touch with Advanced IR supports up to 50 touch points with 1 mm accuracy and a typical touch response time of 5 ms. The octa-core processor, 8 GB DDR4 memory and 64 GB storage (up to 576 GB) run Android 15, with automatic updates to Android 17. Wi-Fi 6E, Bluetooth 5.2 and NFC are included, along with a linear six-microphone array and two integrated 15 W speakers.

The 400 x 400 mm VESA pattern uses M8 fixings, so standard VESA mounts rated for 32 kg can carry the panel. The rear OPS PC accessory slot accepts SMART PCM modules, and the RJ45 LAN ports, USB-C, microSD slot with security cover and RS-232 port support integration and expansion. Compared with the high secure M Pro models, this model adds Android 15, Wi-Fi 6E, NFC and a six-microphone array. Procure.ae offers free training and support, with delivery and installation across the UAE.

Screen Size

55 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

300 nits

Touch Technology

Infrared

4K UHD resolution
Advanced IR touch
Android platform

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

4K UHD resolution

3840 x 2160 pixels on a 16:9 panel rated at 300 nits.

Advanced IR touch

HyPr Touch with Advanced IR supports up to 50 touch points with 1 mm accuracy.

Android platform

Android 15 with automatic updates to Android 17.

Six-microphone array

Integrated linear array with onboard acoustic echo cancellation.

Wireless connectivity

Wi-Fi 6E (IEEE 802.11ax) and Bluetooth 5.2 dual mode.

NFC reader

Integrated RFID NFC reader/writer for ISO 14443A/B and ISO 15693 cards.

Anti-fingerprint glass

Full heat-tempered, anti-glare and anti-fingerprint glass.

iQ and TAA

MX Pro series with iQ, listed as TAA, with a white frame.

Specifications

43 specifications

General

Key Features4K UHD (3840 x 2160), 300 nits, HyPr Touch Advanced IR, up to 50 touch points, Android 15, six-microphone array, Wi-Fi 6E, NFC reader

ModelMX555-V5-PW

TypeInteractive Flat Panel

What's in the Box2 pens, remote control, 5 m USB 2.0 A-to-B cable

Display

Aspect Ratio16:9

BacklightLED

Brightness300 nits

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size55 inch

Touch Accuracy1 mm

Touch PointsUp to 50-point multi-touch

Touch Response Time5 ms (typical)

Touch TechnologyInfrared

Viewing Angle178°

Performance

LicenseRoom license and 10 personal licenses

Operating SystemAndroid 15

ProcessorOcta-core

RAM8 GB

Storage64 GB (up to 576 GB)

Storage Conditions-20 to 60 °C

Audio

Audio2 x 15 W integrated speakers

MicrophoneLinear six-microphone array with onboard acoustic echo cancellation

Connectivity

BluetoothBluetooth 5.2

Input Voltage100–240 V AC, 50/60 Hz

OPS SlotRear, SMART PCM modules

PortsUSB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1, microSD slot with security cover × 1

ProtocolsISO 14443A/B, ISO 15693, NFC Tag 1-4

Wi-FiWi-Fi 6E (IEEE 802.11ax)

Power

Power Consumption72 W (typical)

Standby Power0.2 W

Physical

ColorWhite

Dimensions1301 x 818 x 96 mm

Operating Humidity5% to 80% RH, non-condensing

Operating Temperature5 to 35 °C

Shipping Dimensions1425 x 1110 x 160 mm

Shipping Weight47 kg

VESA Mount400 x 400 mm

Weight32 kg

Compliance

CertificationsTAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP, EPEAT

Country of OriginMexico

Security FeaturesSecurity cover on microSD slot

Downloads

Manufacturer documents for the SMART Board MX Pro with iQ TAA 55-inch Interactive Flat Panel – MX555-V5-PW — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the SMART Board MX555-V5-PW a 4K display?

Yes. The MX555-V5-PW has a 3840 x 2160 (4K UHD) LED-backlit display with a 16:9 aspect ratio, a 178° viewing angle and 300 nits brightness. Its refresh rate is 60 Hz.

Does the MX555-V5-PW have a built-in operating system?

Yes. It runs Android 15 and supports automatic updates to Android 17. It has an octa-core processor, 8 GB DDR4 memory and 64 GB storage, expandable up to 576 GB.

Does it have built-in microphones?

Yes. It has an integrated linear six-microphone array with onboard acoustic echo cancellation, plus two integrated 15 W speakers. The panel also has proximity, ambient light and infrared sensors.

Does it support Wi-Fi, Bluetooth and NFC?

Yes. It has Wi-Fi 6E (IEEE 802.11ax) supporting WPA3 and 802.1X EAP authentication, Bluetooth 5.2 dual mode and an integrated RFID NFC reader/writer. Two RJ45 1000BASE-T ports provide wired networking.

Can it be wall mounted, and what VESA pattern does it use?

Yes. It uses an M8 VESA pattern of 400 x 400 mm. The panel weighs 32 kg, so the wall or mount system must be rated for that load. Procure.ae can arrange delivery and installation across the UAE.
