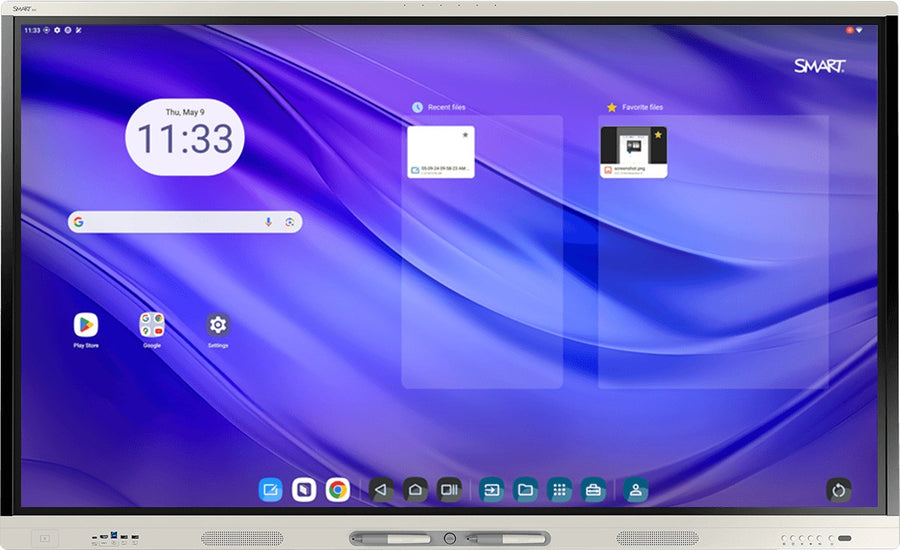

SMART Board MX Pro with iQ TAA 55-inch Interactive Flat Panel – MX555-V5-PW
The SMART Board MX555-V5-PW is a 55-inch 4K UHD interactive flat panel from the MX Pro series with iQ, listed as TAA. It runs Android 15, has an integrated six-microphone array and suits classrooms, boardrooms and government offices. Procure.ae supplies it across the UAE.
The MX555-V5-PW has a 3840 x 2160 (4K UHD) LED-backlit panel with anti-fingerprint, anti-glare glass, 300 nits brightness, a 178° viewing angle and an 8 ms display response time. HyPr Touch with Advanced IR supports up to 50 touch points with 1 mm accuracy and a typical touch response time of 5 ms. The octa-core processor, 8 GB DDR4 memory and 64 GB storage (up to 576 GB) run Android 15, with automatic updates to Android 17. Wi-Fi 6E, Bluetooth 5.2 and NFC are included, along with a linear six-microphone array and two integrated 15 W speakers.
The 400 x 400 mm VESA pattern uses M8 fixings, so standard VESA mounts rated for 32 kg can carry the panel. The rear OPS PC accessory slot accepts SMART PCM modules, and the RJ45 LAN ports, USB-C, microSD slot with security cover and RS-232 port support integration and expansion. Compared with the high secure M Pro models, this model adds Android 15, Wi-Fi 6E, NFC and a six-microphone array. Procure.ae offers free training and support, with delivery and installation across the UAE.
Key features
Specifications
| Key Features | 4K UHD (3840 x 2160), 300 nits, HyPr Touch Advanced IR, up to 50 touch points, Android 15, six-microphone array, Wi-Fi 6E, NFC reader |
| Model | MX555-V5-PW |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A-to-B cable |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 300 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 55 inch |
| Touch Accuracy | 1 mm |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | 5 ms (typical) |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| License | Room license and 10 personal licenses |
| Operating System | Android 15 |
| Processor | Octa-core |
| RAM | 8 GB |
| Storage | 64 GB (up to 576 GB) |
| Storage Conditions | -20 to 60 °C |
| Audio | 2 x 15 W integrated speakers |
| Microphone | Linear six-microphone array with onboard acoustic echo cancellation |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Rear, SMART PCM modules |
| Ports | USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1, microSD slot with security cover × 1 |
| Protocols | ISO 14443A/B, ISO 15693, NFC Tag 1-4 |
| Wi-Fi | Wi-Fi 6E (IEEE 802.11ax) |
| Power Consumption | 72 W (typical) |
| Standby Power | 0.2 W |
| Color | White |
| Dimensions | 1301 x 818 x 96 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 1425 x 1110 x 160 mm |
| Shipping Weight | 47 kg |
| VESA Mount | 400 x 400 mm |
| Weight | 32 kg |
| Certifications | TAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP, EPEAT |
| Country of Origin | Mexico |
| Security Features | Security cover on microSD slot |
