SMARTInteractive Flat PanelsSKU SBM787

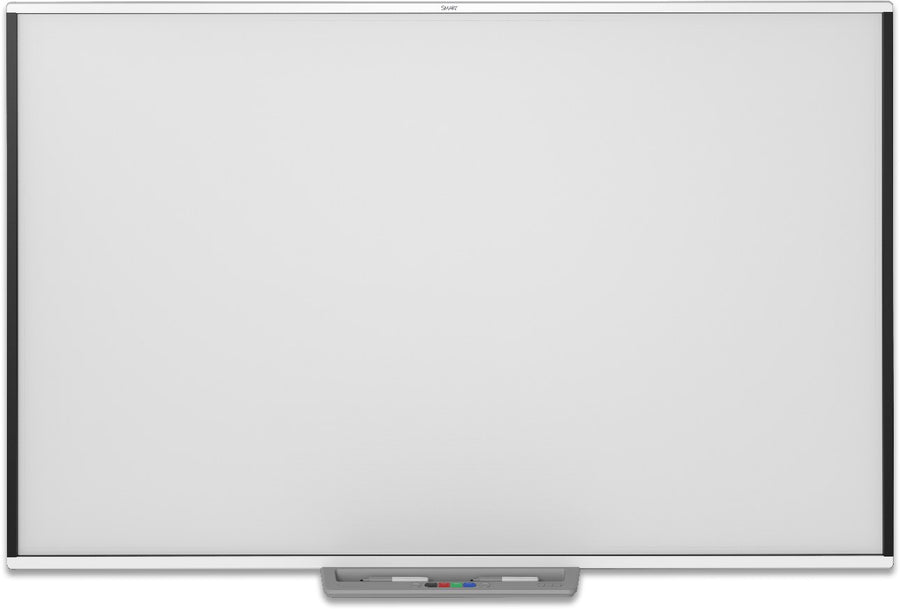

SMART Board M787 87-inch Interactive Whiteboard – SBM787
The SMART Board M787 (model SBM787) is an 87-inch interactive whiteboard with a 16:10 projection area of 1875 x 1171 mm, for large classrooms, lecture halls and boardrooms. It uses infrared touch for up to 20 simultaneous touches and two users, and includes SMART Notebook software. Procure.ae supplies the SBM787 in the UAE.
The M787 has an 87-inch board with a 16:10 projection area of 1875 x 1171 mm and a durable hard-coated steel surface optimized for projection. Its Advanced IR touch layer supports up to 20 simultaneous touches for two users, and Object Awareness distinguishes between pen, finger, eraser and palm. The digitizing resolution is approximately 32,767 x 32,767, and the surface is compatible with dry-erase markers.
The board connects to a Windows or Mac computer over a full-speed USB 2.0 connection at 12 Mbps and draws its power from that cable, so it needs no separate power supply. SMART Notebook, SMART Ink and SMART Product Drivers are included. The 87-inch board measures 1953 x 1262 x 136 mm, weighs 15 kg and carries a three-year limited equipment warranty. It operates between 5 and 35 °C.
Screen Size
87 inch
Touch Technology
Infrared
Type
Interactive Whiteboard
Weight
15 kg
- 87-inch 16:10 board
- 20-point infrared touch
- Object Awareness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
87-inch 16:10 board
Projection area of 1875 x 1171 mm, with a hard-coated steel surface.
02
20-point infrared touch
Up to 20 simultaneous touches for up to two users.
03
Object Awareness
Distinguishes between pen, finger, eraser and palm.
04
Dry-erase compatible surface
Works with dry-erase markers on a steel surface.
05
Optimized for projection
Designed to be used with a projector.
06
SMART Notebook included
SMART Notebook, SMART Ink and SMART Product Drivers come with the board.
07
Three-year limited warranty
SMART equipment warranty for three years, with terms at smarttech.com/warranty.
08
Digitizing resolution
Approximately 32,767 x 32,767, with USB 2.0 full-speed connection.
Specifications
21 specificationsGeneral
Key Features87-inch 16:10 board, 20-point infrared touch for two users, Object Awareness, Dry-erase compatible steel surface, Optimized for projection, SMART Notebook included, Three-year limited warranty
ModelSBM787
TypeInteractive Whiteboard
What's in the BoxSMART Notebook, SMART Ink and SMART Product Drivers
Display
Aspect Ratio16:10
Projection Size1875 x 1171 mm
Screen Size87 inch
Touch Points20-point multi-touch (two users)
Touch TechnologyInfrared
Connectivity
ConnectivityUSB 2.0 full-speed (12 Mbps)
Power
Power Consumption< 2.5 W (powered over USB)
Physical
ColorWhite
Dimensions1953 x 1262 x 136 mm
FinishHard-coated steel surface
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2069 x 1473 x 92 mm
Shipping Weight24 kg
Weight15 kg
Compliance
CertificationsCE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty3 years
Downloads
Manufacturer documents for the SMART Board M787 87-inch Interactive Whiteboard – SBM787 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the SBM787 work with a projector?
Yes. The board is optimized for projection, with a projection area of 1875 x 1171 mm. Its hard-coated steel surface is compatible with dry-erase markers, and the board measures 1953 x 1262 x 136 mm overall.
How many people can use the SBM787 at once?
The board supports up to 20 simultaneous touches and up to two users. Object Awareness distinguishes between pen, finger, eraser and palm, and the infrared touch layer has a digitizing resolution of approximately 32,767 x 32,767.
Does the SBM787 connect to Windows and Mac computers?
Yes. It connects over full-speed USB 2.0 at 12 Mbps and takes its power from the computer on Windows and Mac. SMART Notebook, SMART Ink and SMART Product Drivers are included.
What warranty does the SBM787 carry?
The SBM787 carries a three-year limited equipment warranty from SMART, which covers the board as equipment. Full terms are at smarttech.com/warranty. Procure.ae can advise on support and installation for UAE orders.
Can I buy the SBM787 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
